Front Drive Axle Disassembled Views
Front Drive Axle Disassembled Views

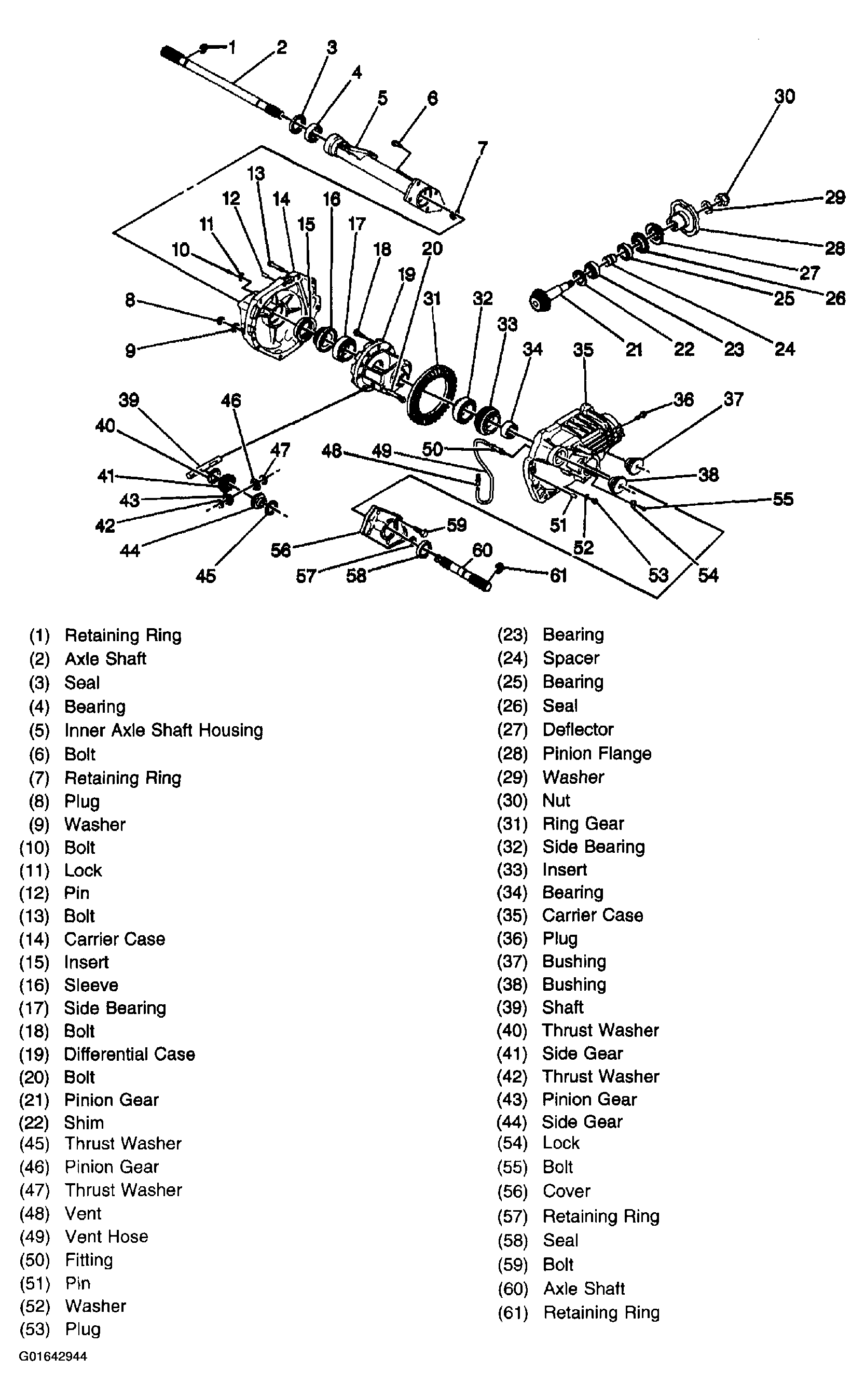

Fig 1: Exploded View Of Front Drive Axle
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
