ABS Schematics

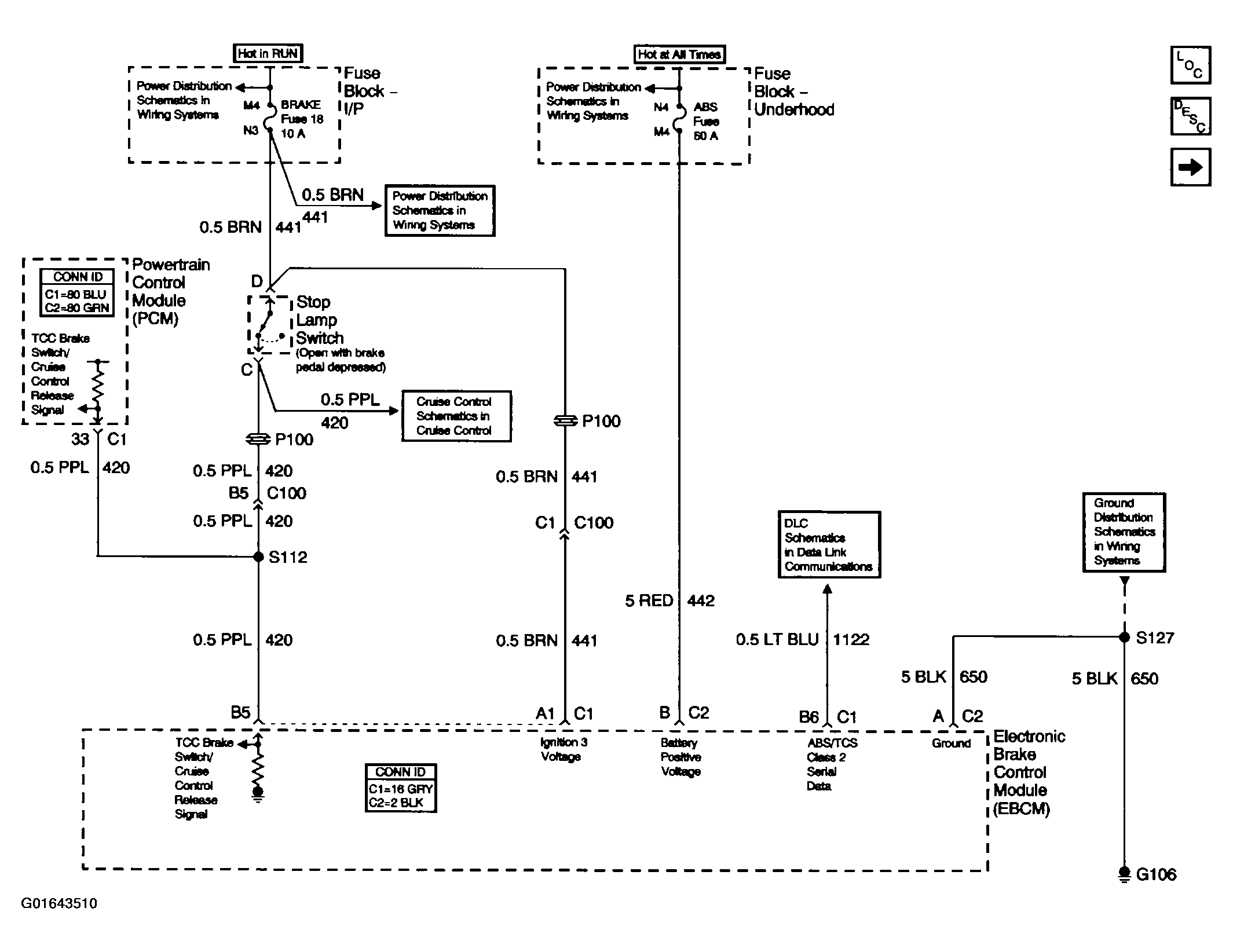

Fig 1: EBCM Power, Ground, And DLC

G01643510

Courtesy of GENERAL MOTORS CORP.

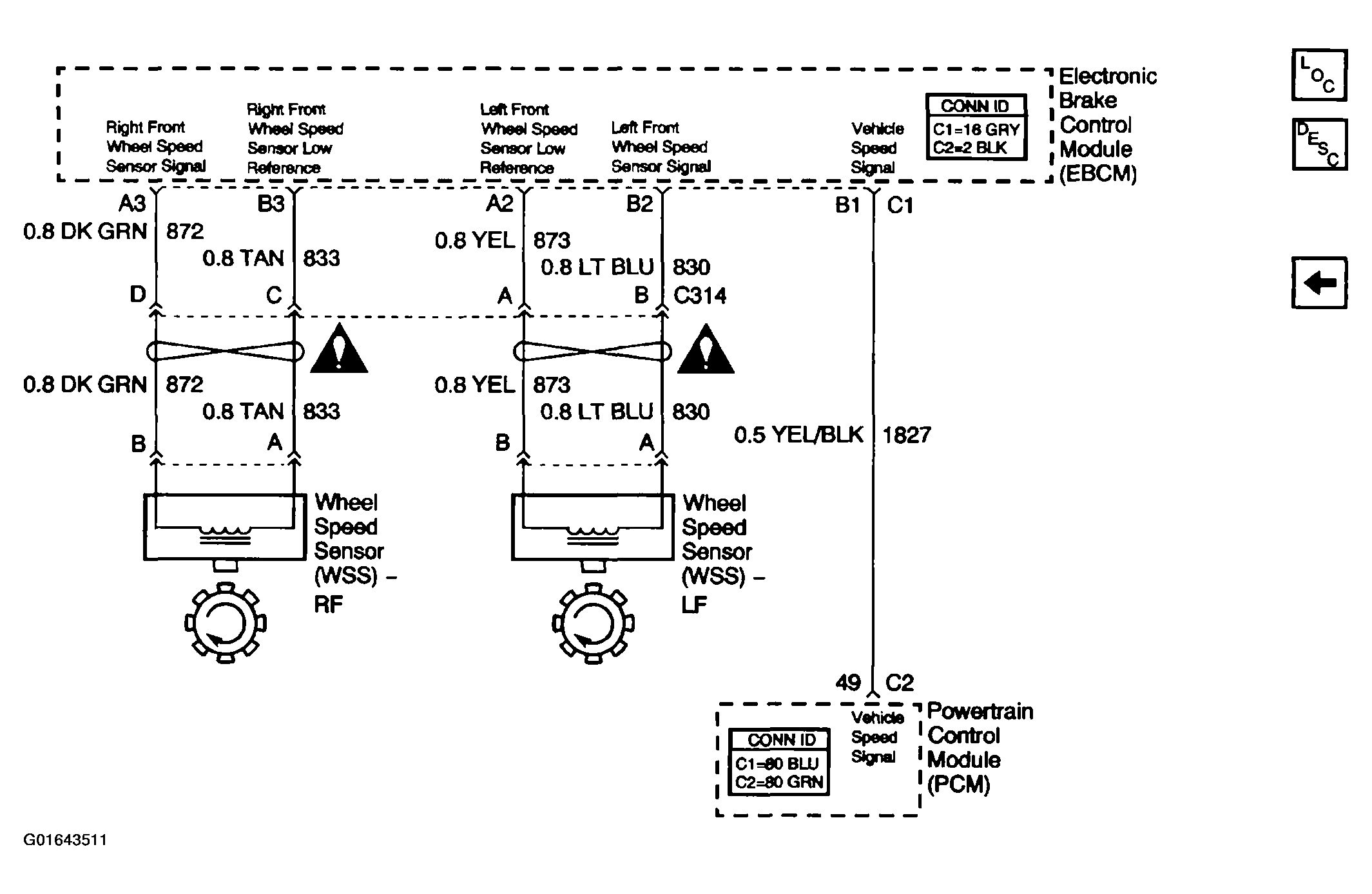

Fig 2: EBCM Controls

G01643511

Courtesy of GENERAL MOTORS CORP.
