Home >> GMC >> 2003 >> Safari Van Cargo, AWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Antilock Brake System >> Diagnostic Information and Procedures >> DTC C0281: Brake Switch Circuit >> Diagnostic Test

Diagnostic Test

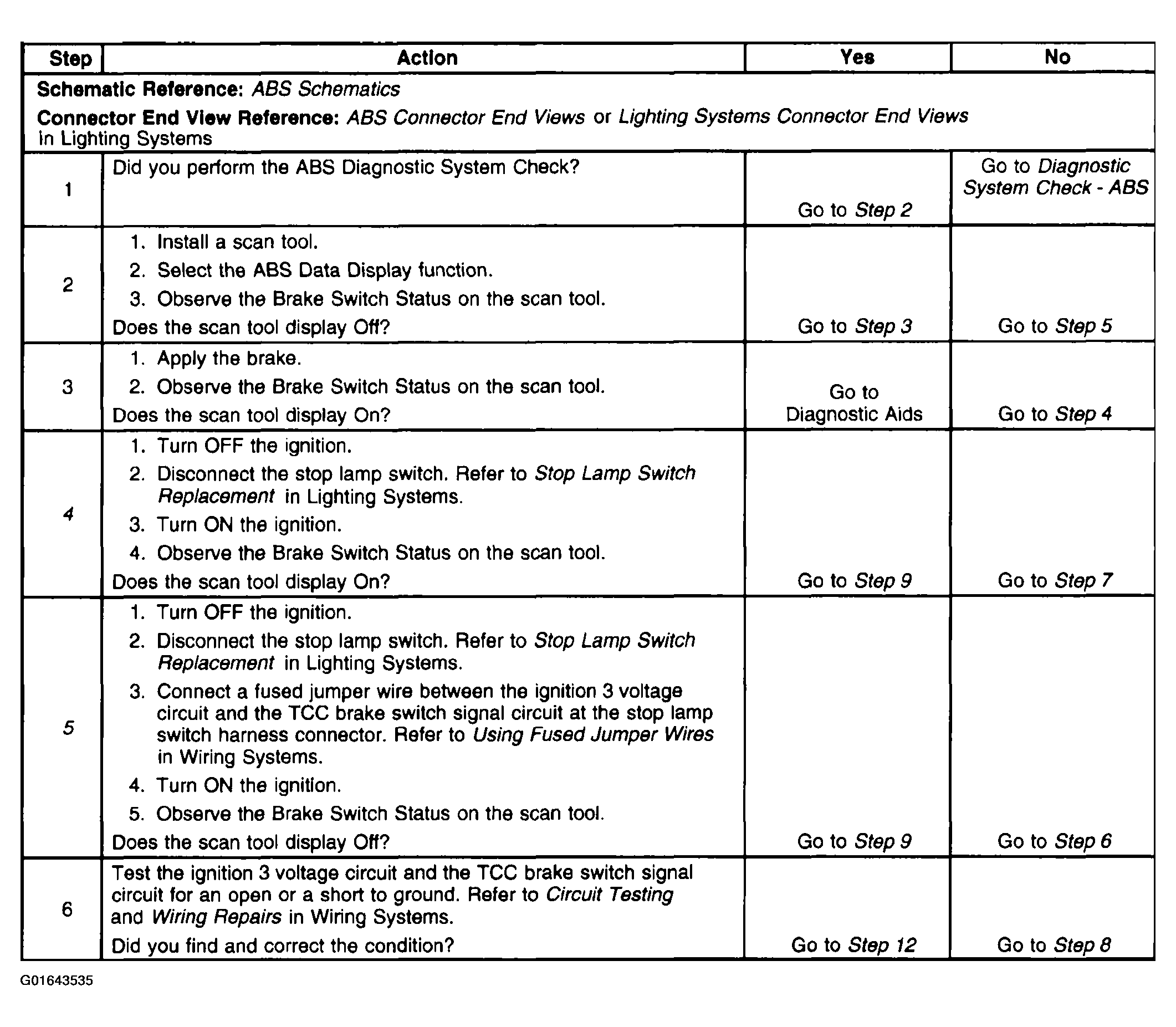

Fig 1: DTC C0281 Diagnostic Table

G01643535

Courtesy of GENERAL MOTORS CORP.

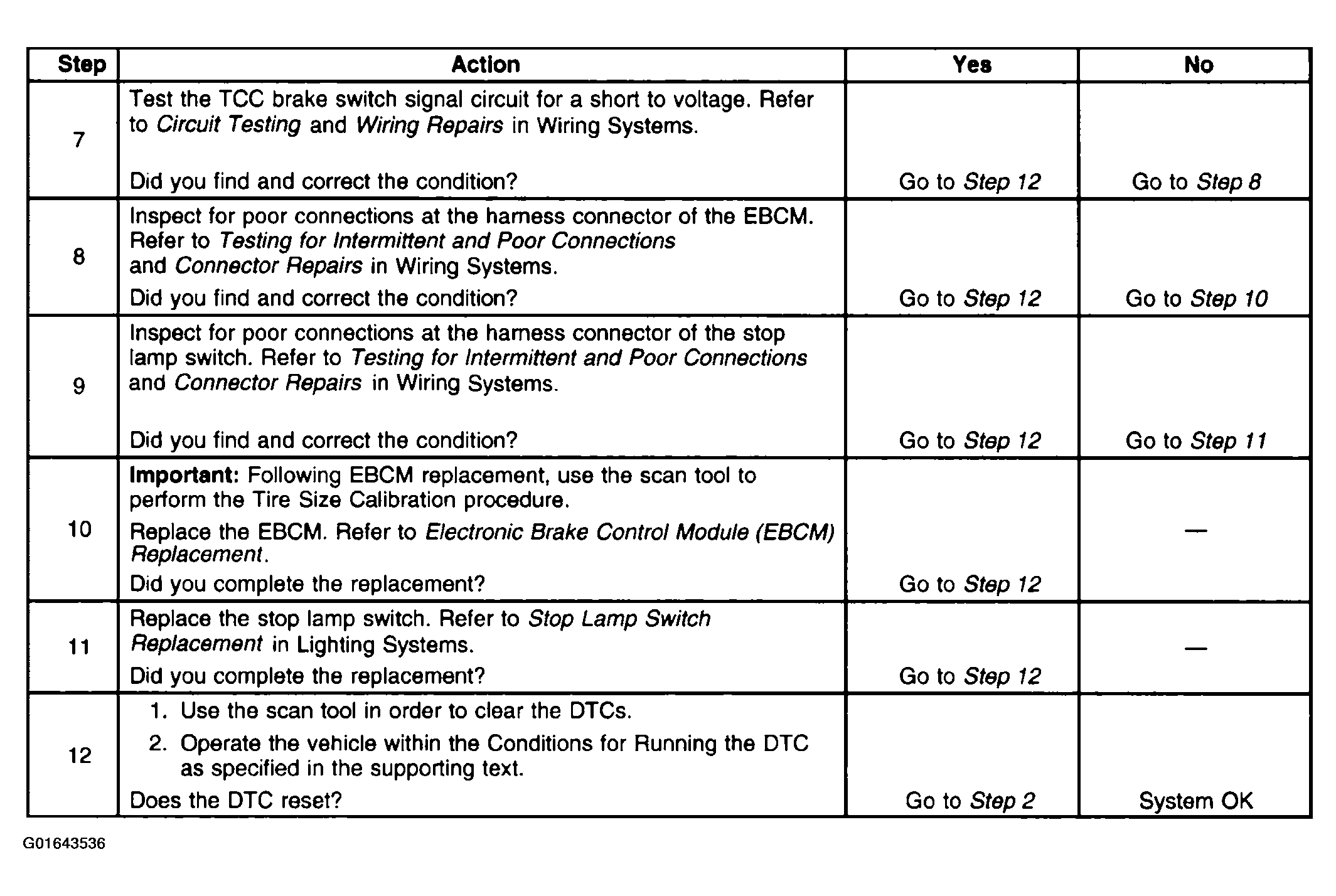

Fig 2: DTC C0281 Diagnostic Table

G01643536

Courtesy of GENERAL MOTORS CORP.
