Diagnostic Test

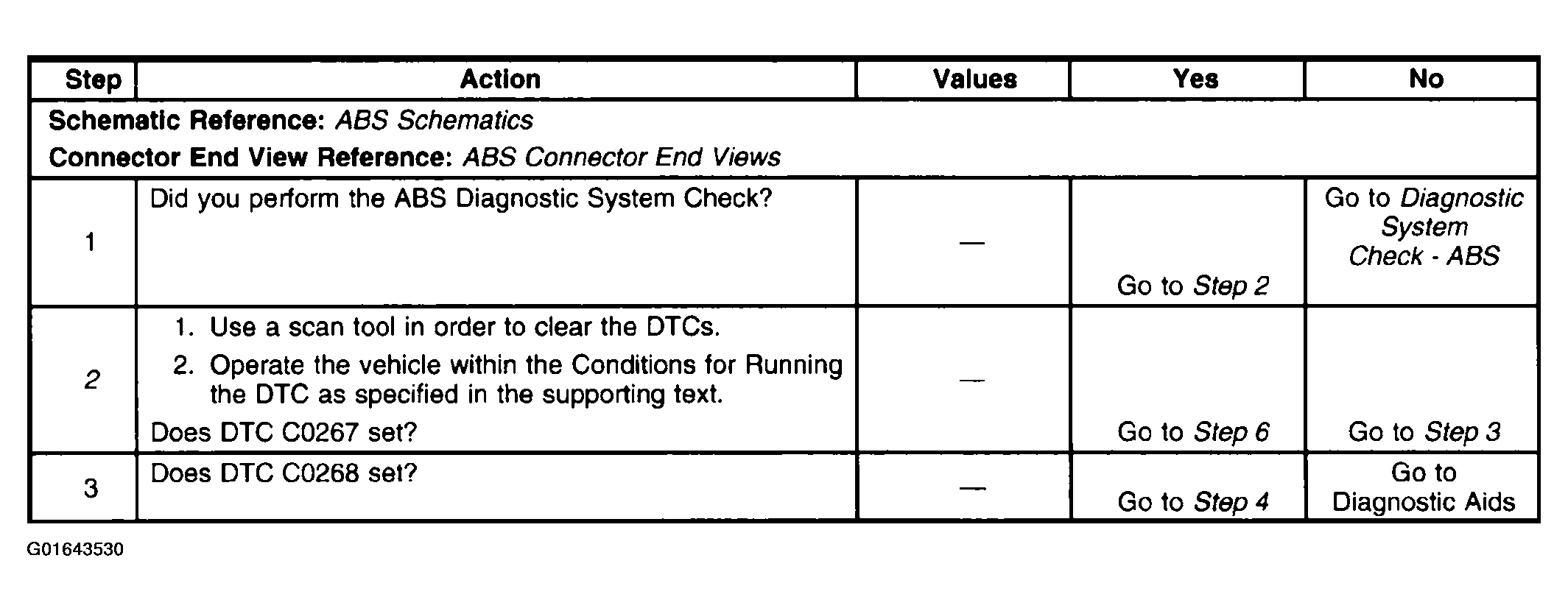

Fig 1: DTC C0267 Or C0268 Diagnostic Table (1 Of 3)
G01643530Courtesy of GENERAL MOTORS CORP.

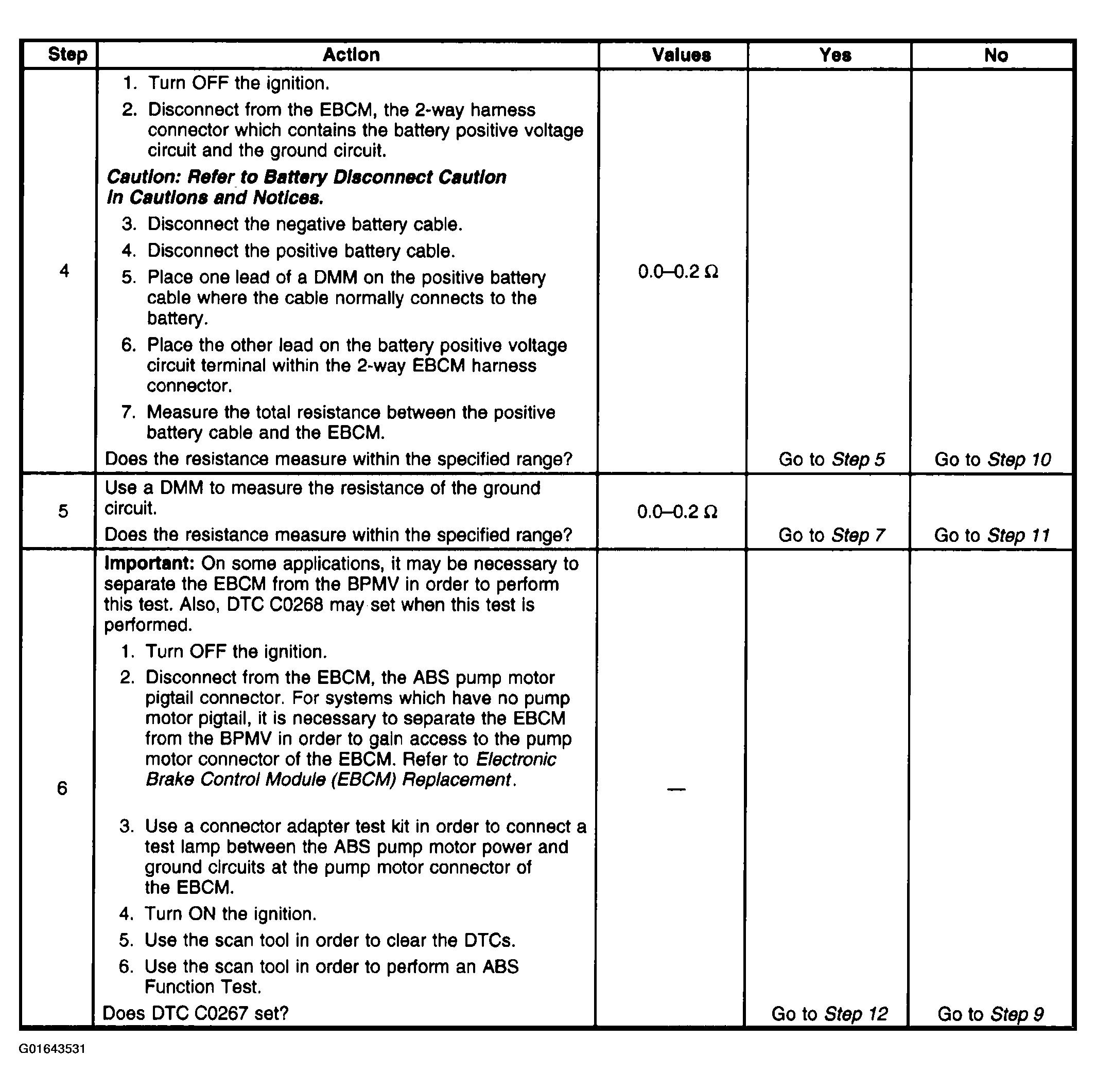

Fig 2: DTC C0267 Or C0268 Diagnostic Table (2 Of 3)
G01643531Courtesy of GENERAL MOTORS CORP.

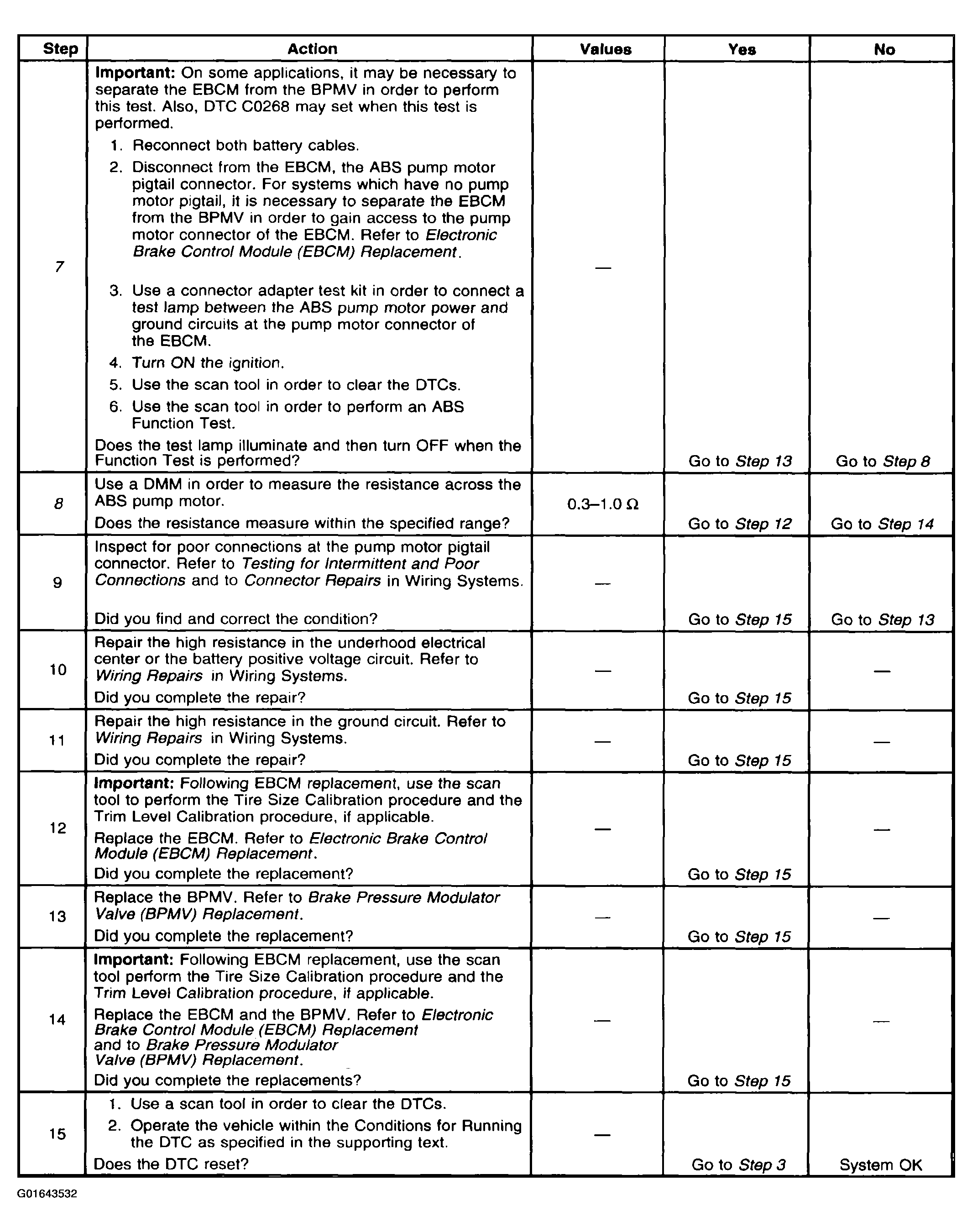

Fig 3: DTC C0267 Or C0268 Diagnostic Table (3 Of 3)
G01643532Courtesy of GENERAL MOTORS CORP.
