Removal Procedure

  1. Open the swing out window.
  2. Pull the weatherstrip from the pinch weld flange.
  3. Grasp the weatherstrip at the lower corner and pull up and away from the pinch-weld.

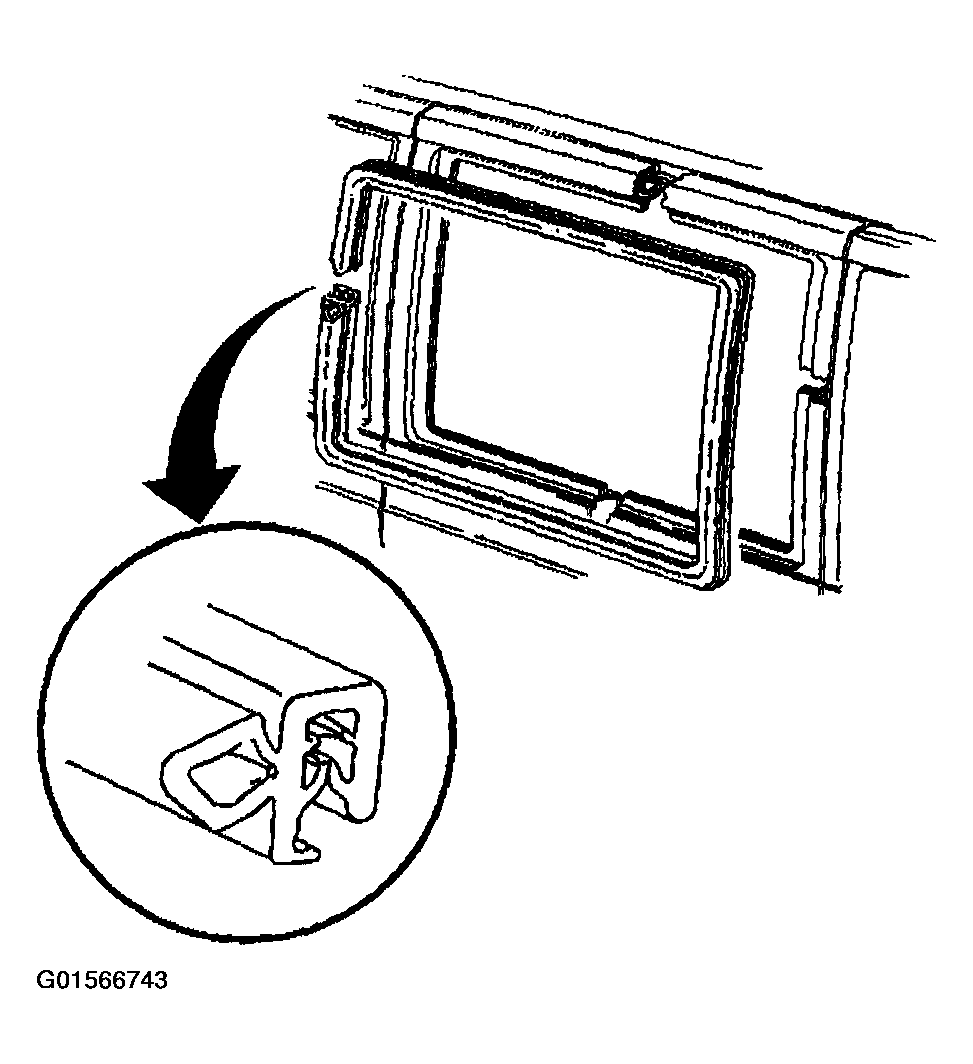

    Fig 1: Swing Out Window Weatherstrip
    G01566743Courtesy of GENERAL MOTORS CORP.
