Defogger Inoperative - Rear Window

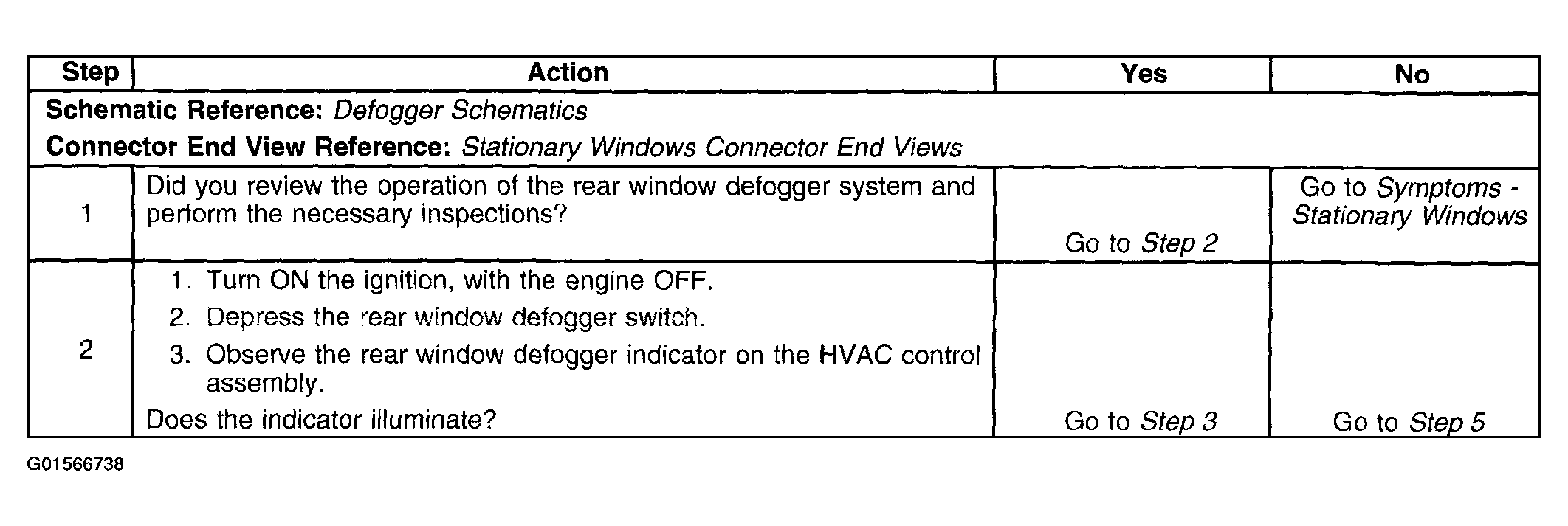

Fig 1: Defogger Inoperative - Rear Window (1 Of 2)

G01566738

Courtesy of GENERAL MOTORS CORP.

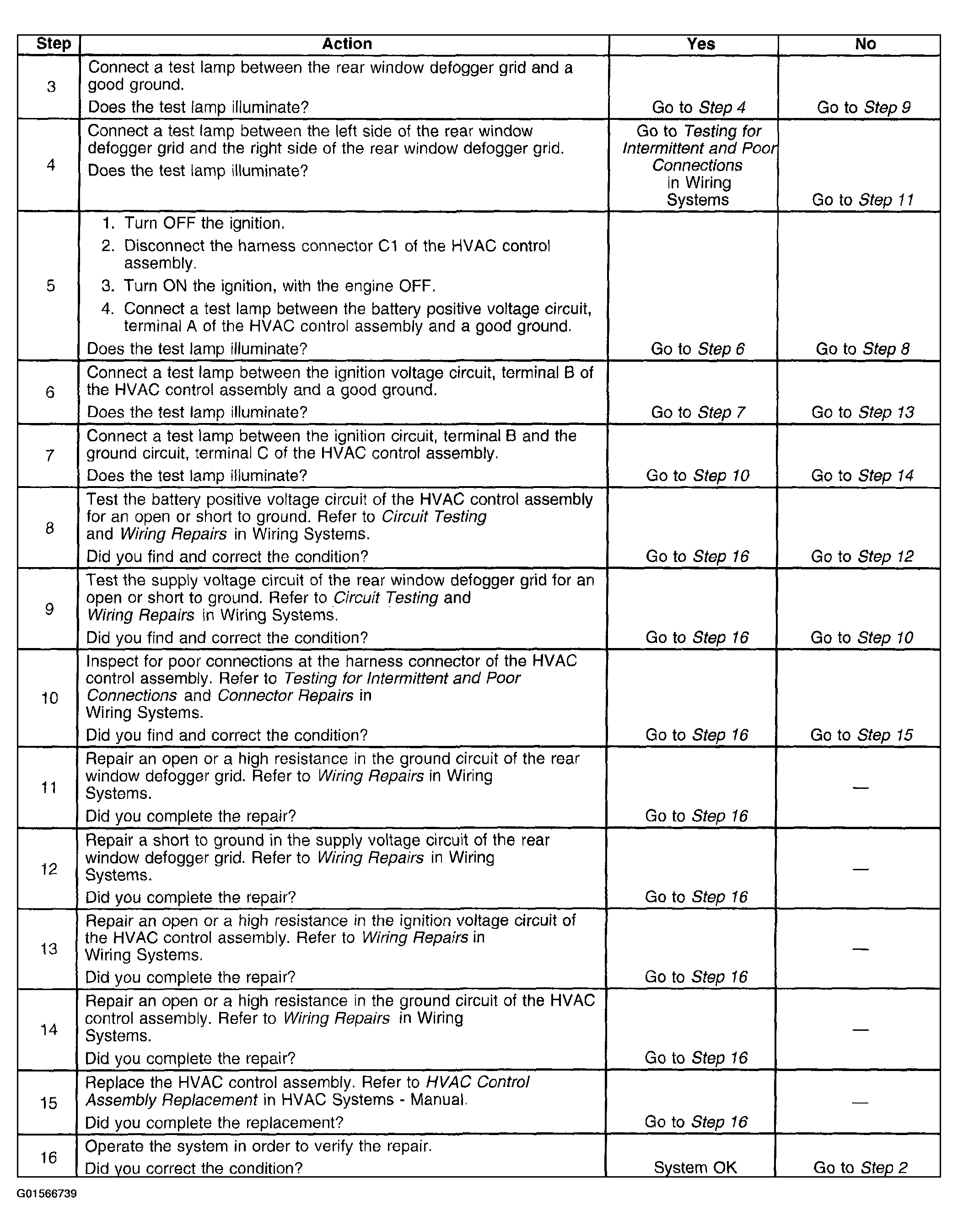

Fig 2: Defogger Inoperative - Rear Window (2 Of 2)

G01566739

Courtesy of GENERAL MOTORS CORP.
