Power Windows Inoperative - All

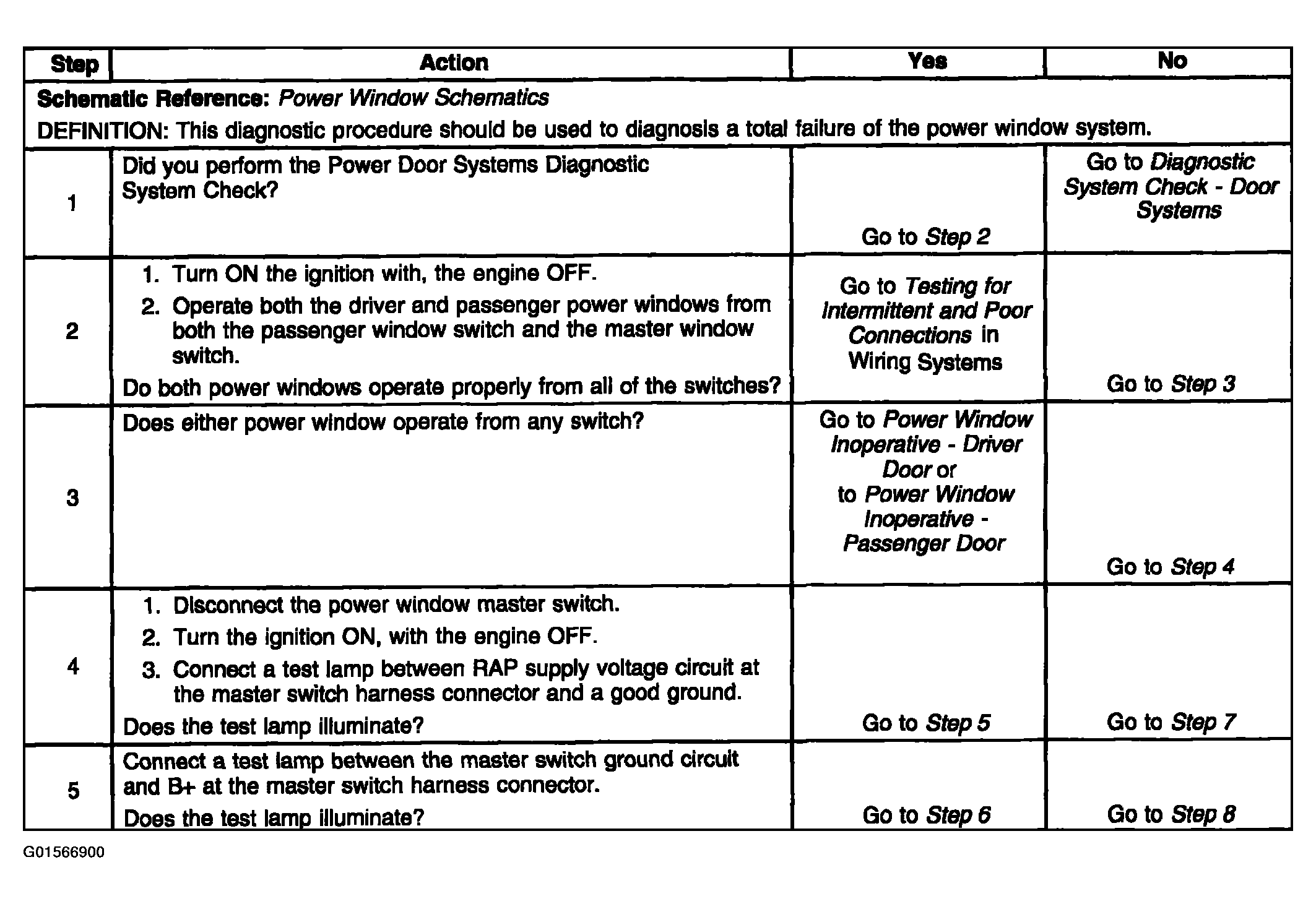

Fig 1: Power Windows Inoperative Diagnostic Test - All (1 Of 2)
G01566900Courtesy of GENERAL MOTORS CORP.

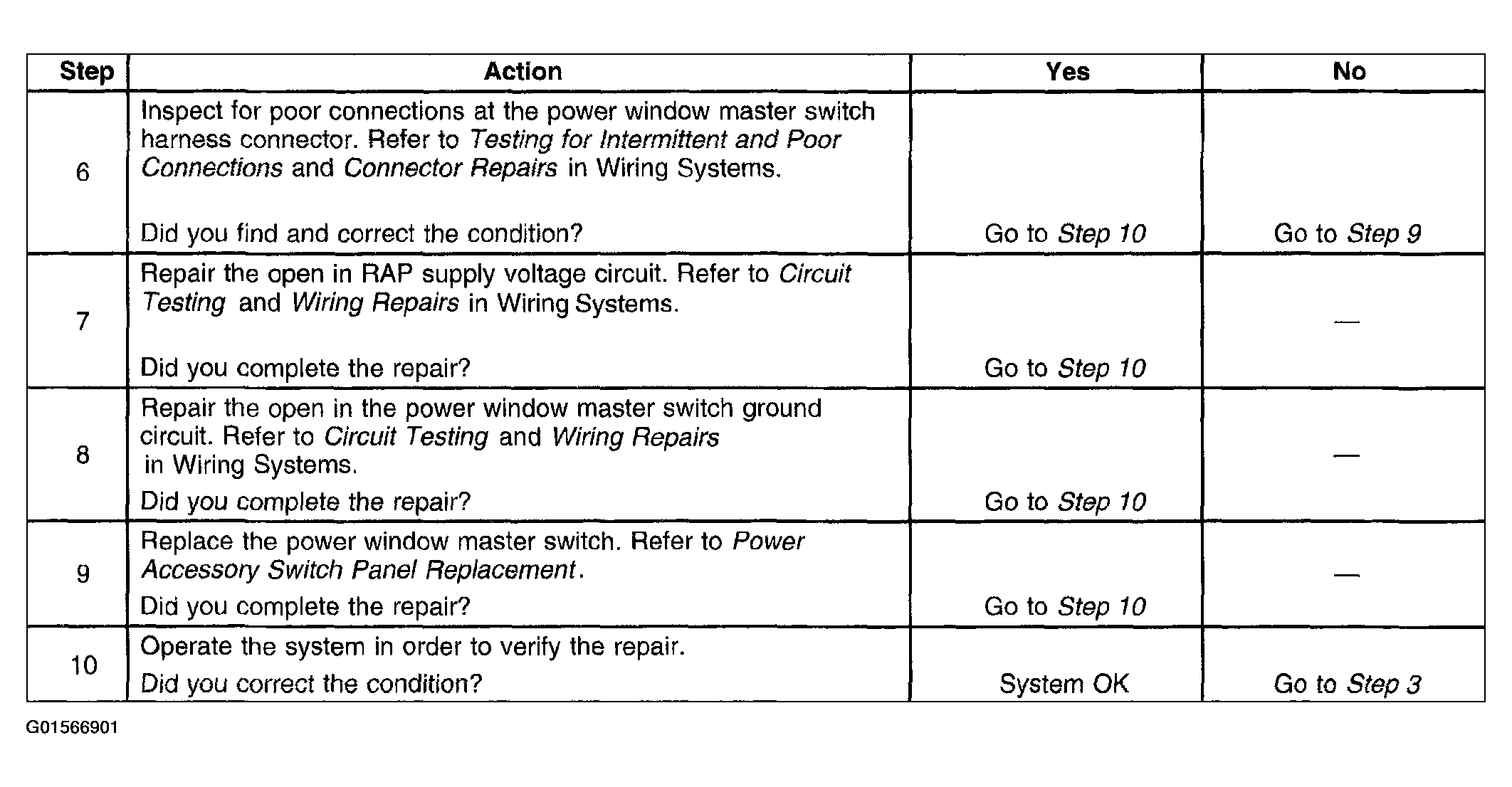

Fig 2: Power Windows Inoperative Diagnostic Test - All (2 Of 2)
G01566901Courtesy of GENERAL MOTORS CORP.
