Power Window Inoperative - Passenger Door

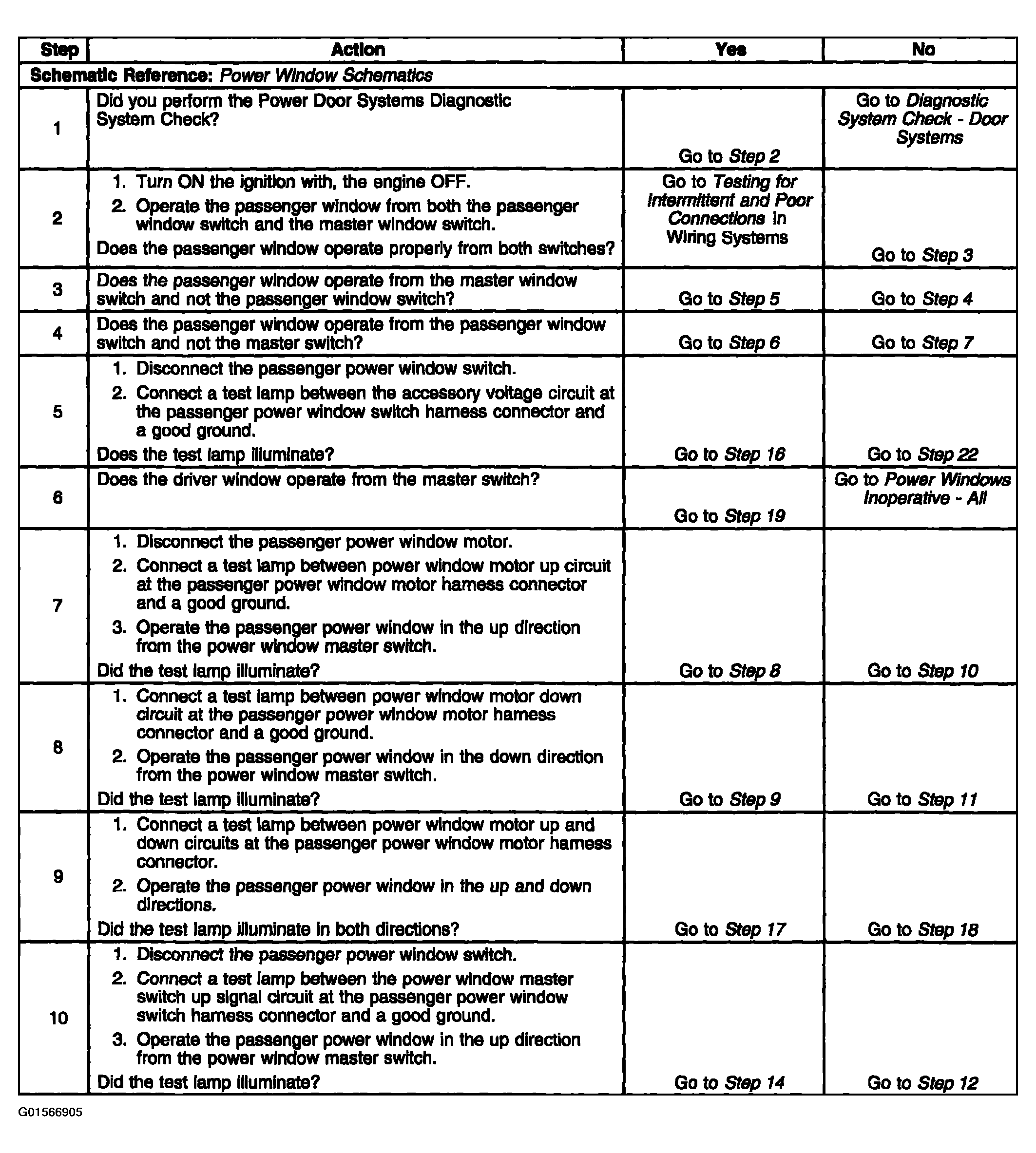

Fig 1: Diagnostic System Check - Power Window Inoperative - Passenger Door (1 Of 2)
G01566905Courtesy of GENERAL MOTORS CORP.

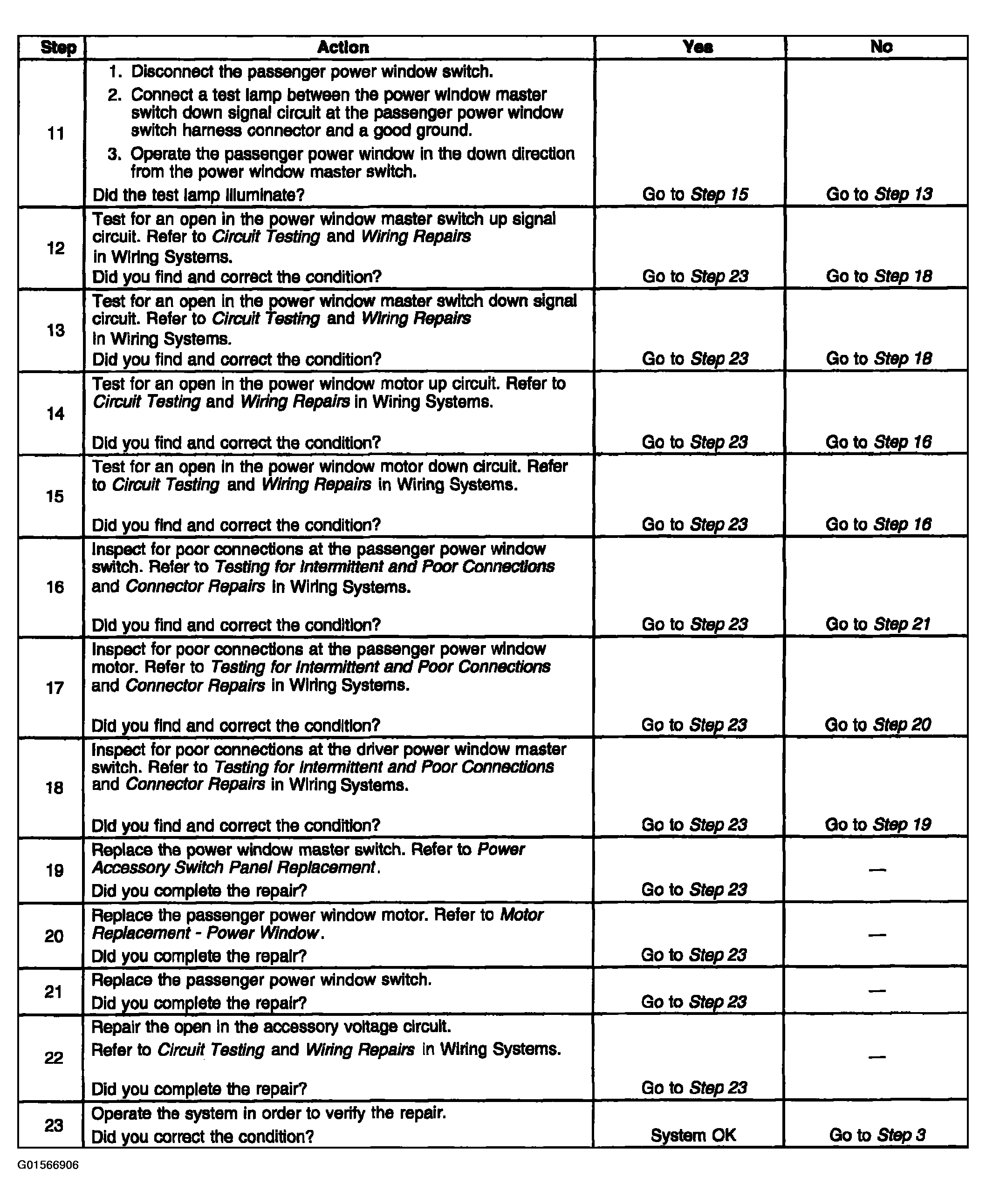

Fig 2: Diagnostic System Check - Power Window Inoperative - Passenger Door (2 Of 2)
G01566906Courtesy of GENERAL MOTORS CORP.
