Power Door Locks Inoperative - Lockout Feature

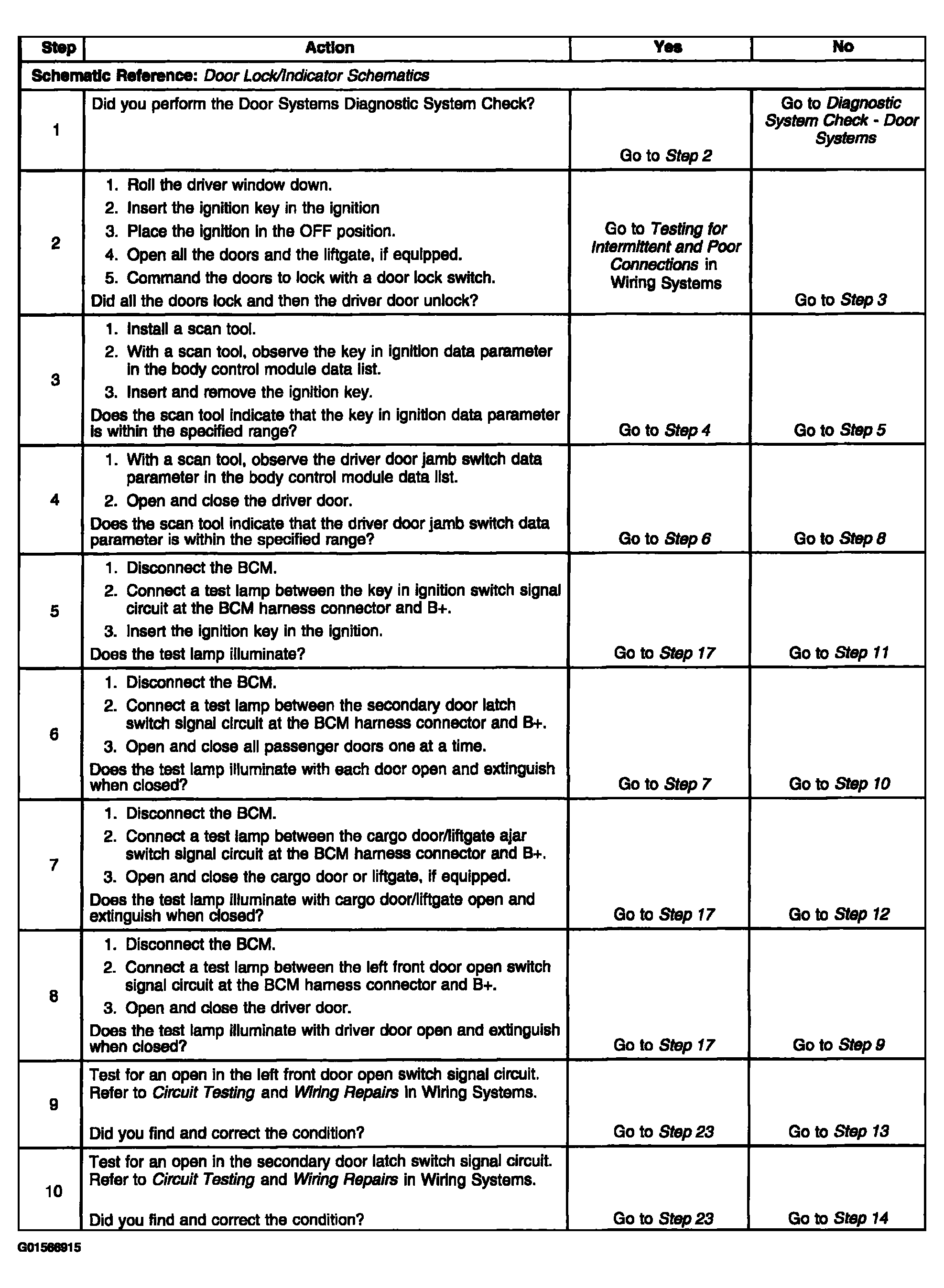

Fig 1: Power Door Locks Inoperative Diagnostic Test - Lockout Feature (1 Of 2)
G01566915Courtesy of GENERAL MOTORS CORP.

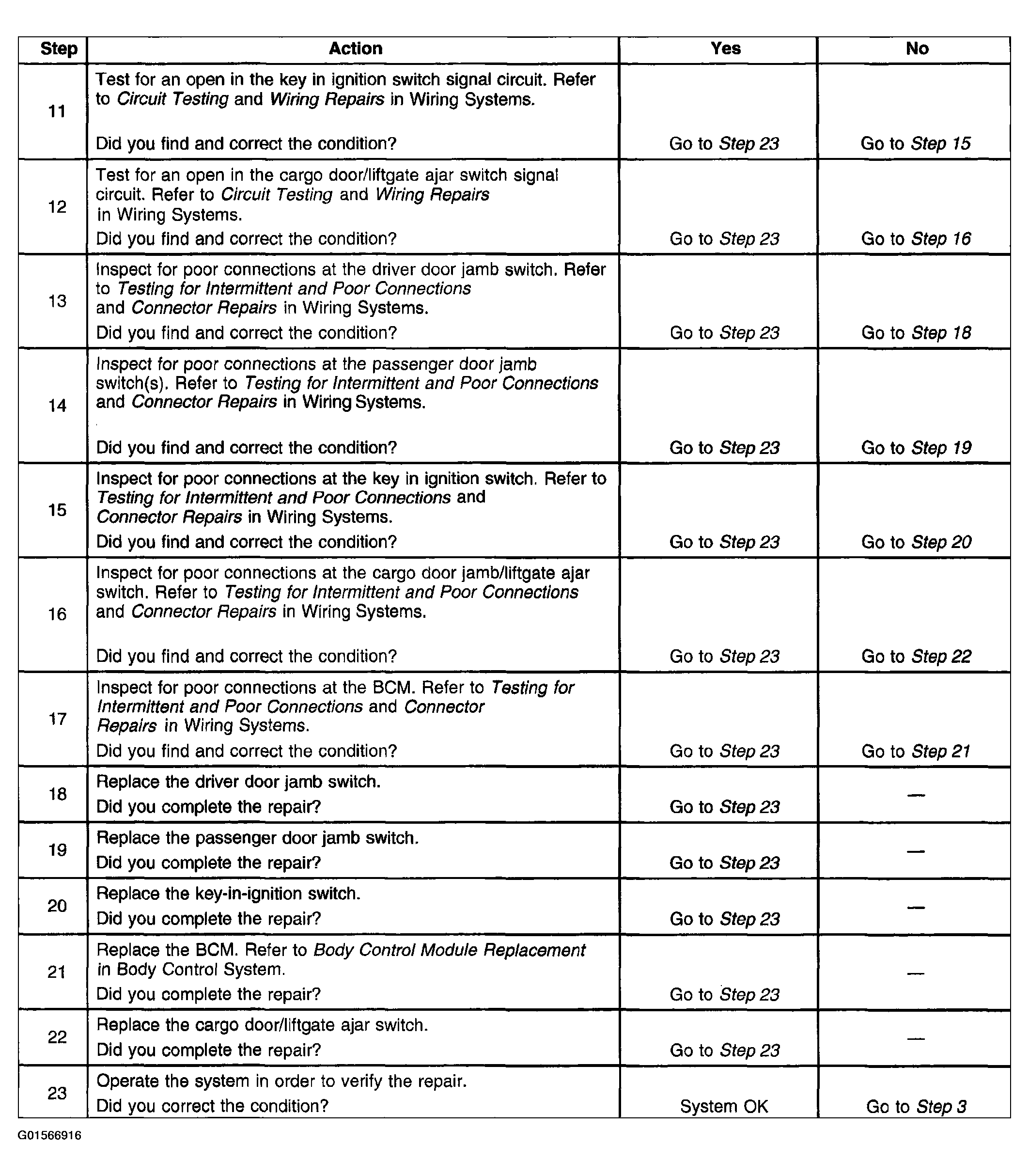

Fig 2: Power Door Locks Inoperative Diagnostic Test - Lockout Feature (2 Of 2)
G01566916Courtesy of GENERAL MOTORS CORP.
