Power Door Locks - Unlock Inoperative Lock Operates

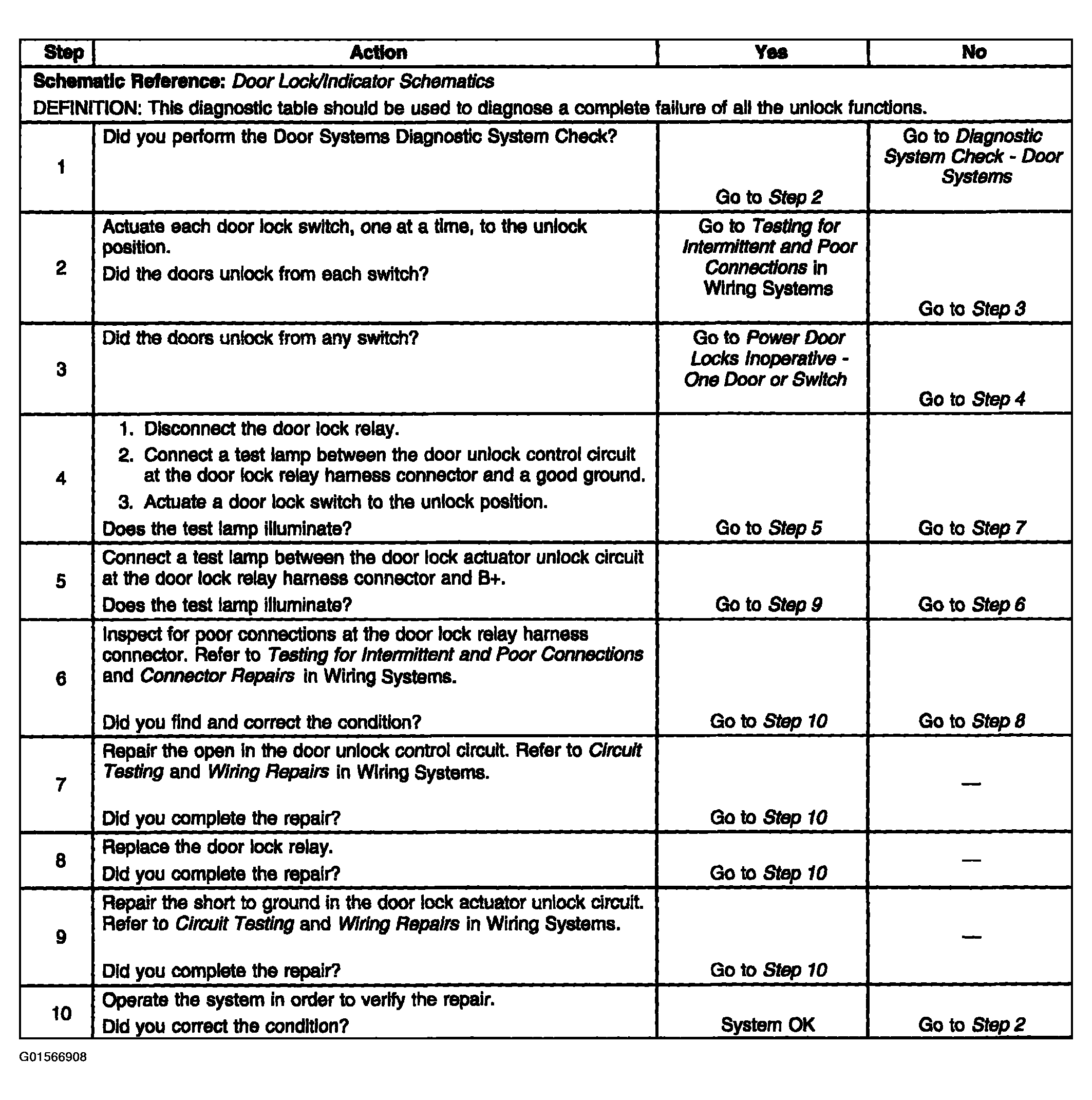

Fig 1: Power Door Locks Diagnostic Test - Unlock Inoperative Lock Operates

G01566908

Courtesy of GENERAL MOTORS CORP.
