Door System, Mirror System & Window System
>>
Symptoms - Doors
>>
Automatic Door Locks Inoperative
Automatic Door Locks Inoperative

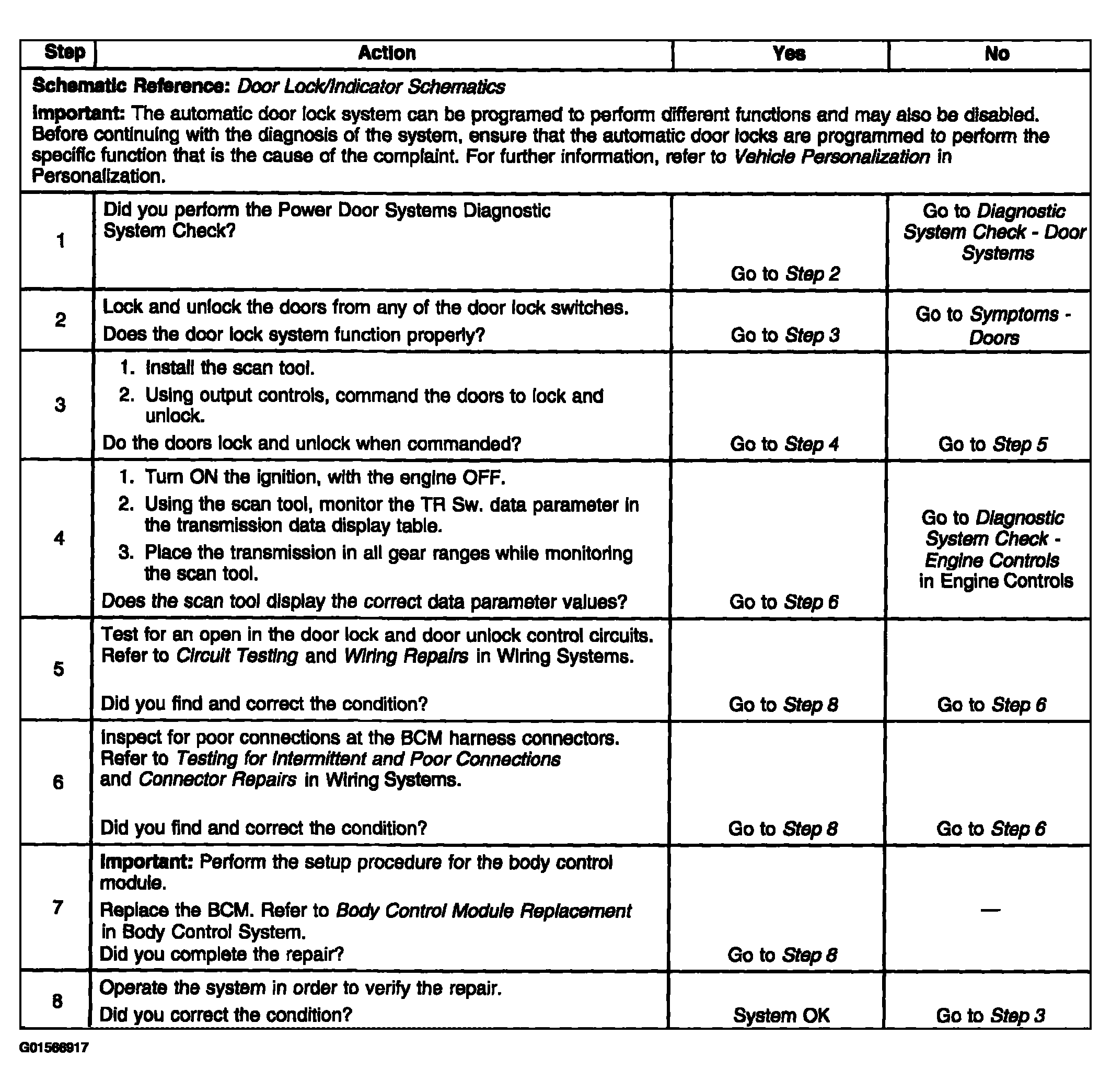

Fig 1: Automatic Door Locks Inoperative Diagnostic Test
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
