Removal Procedure

  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .
  2. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - SLIDING DOOR .
  3. Remove the upper access cover (cargo van). Refer to ACCESS COVER REPLACEMENT - CARGO VAN UPPER .
  4. Disconnect the electrical connector (5) from the lock assembly.
  5. Disconnect the electrical connectors (2) from the contact switch.
  6. Remove the harness clips from the door (4).
  7. Remove the wiring harness from the door (3).

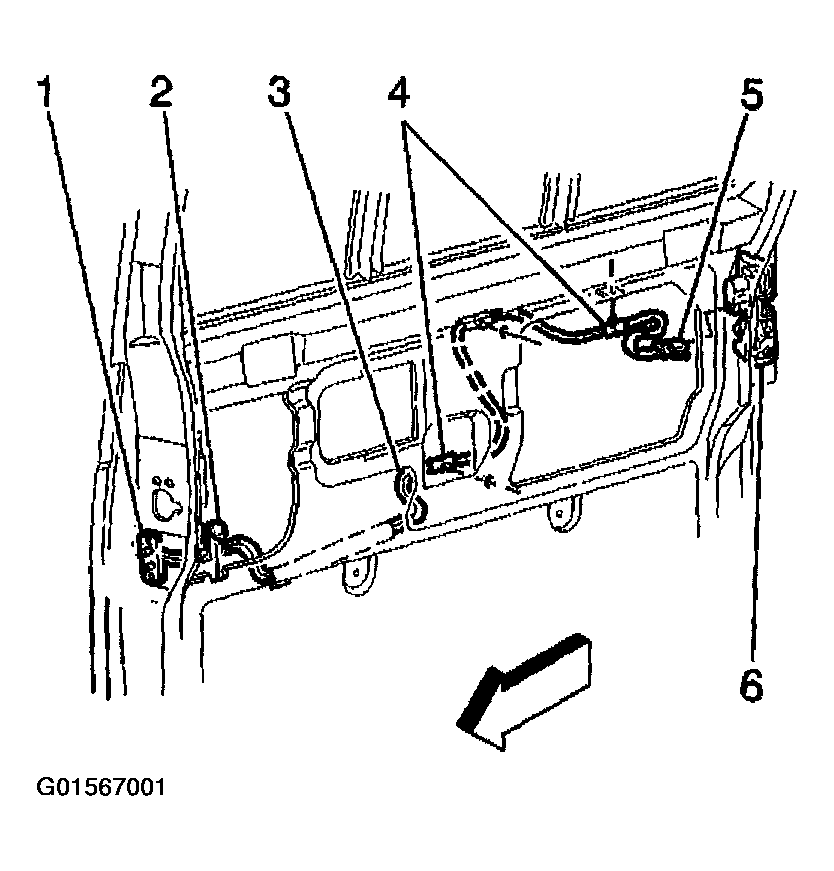

    Fig 1: Identifying Door Wiring Harness
    G01567001Courtesy of GENERAL MOTORS CORP.
