Removal Procedure

  1. Remove the necessary interior trim in order to access the weatherstrip. Refer to GARNISH MOLDING REPLACEMENT - SLIDING DOOR in Interior Trim.
  2. Pull the weatherstrip from the pinchweld flange, starting at the upper right corner.

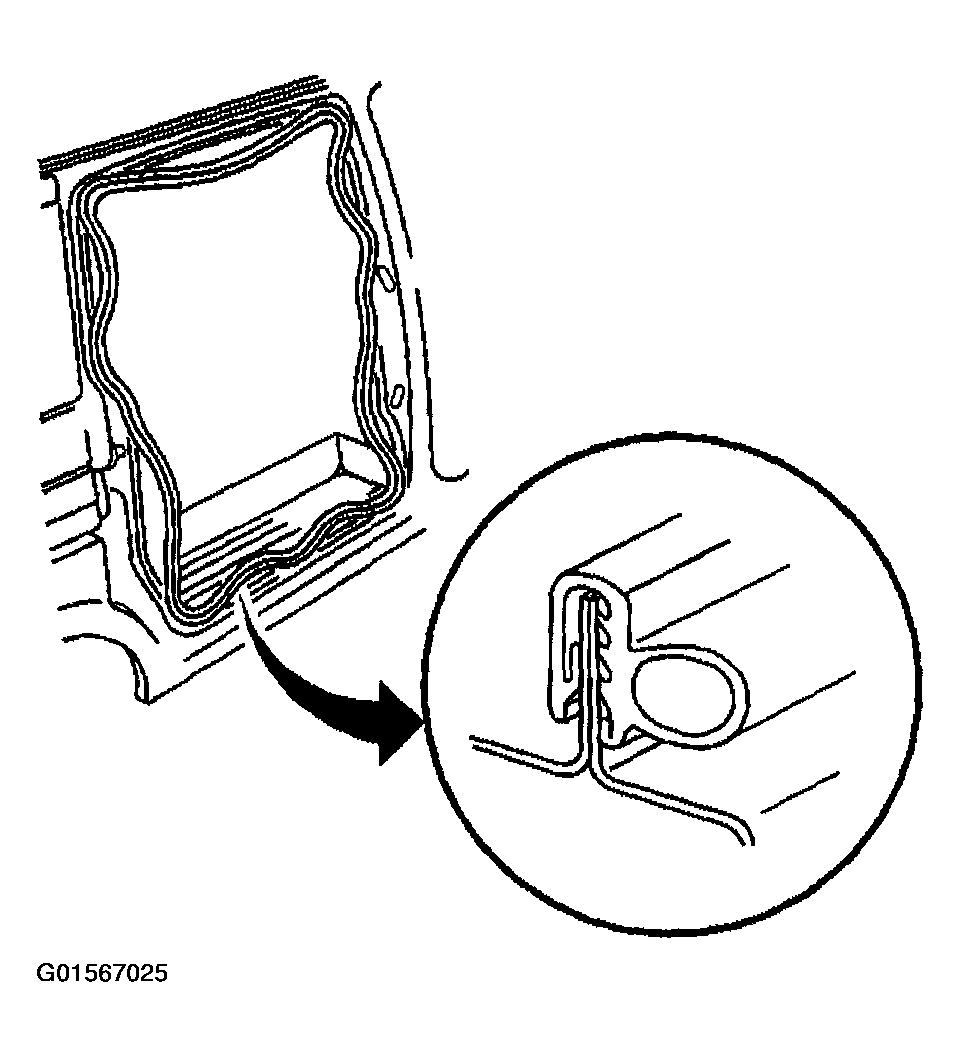

    Fig 1: Pulling Weatherstrip From Pinchweld Flange
    G01567025Courtesy of GENERAL MOTORS CORP.
