Removal Procedure

  1. Remove the interior garnish moldings.
  2. Use the J 38778  in order to pull the weatherstrip from the pinchweld flange of the door. Start at the upper right corner (6), and pull the weatherstrip down (5,4). Keep pulling the weatherstrip (3) until you reach the top (1) of the door, and have pulled the weatherstrip free.

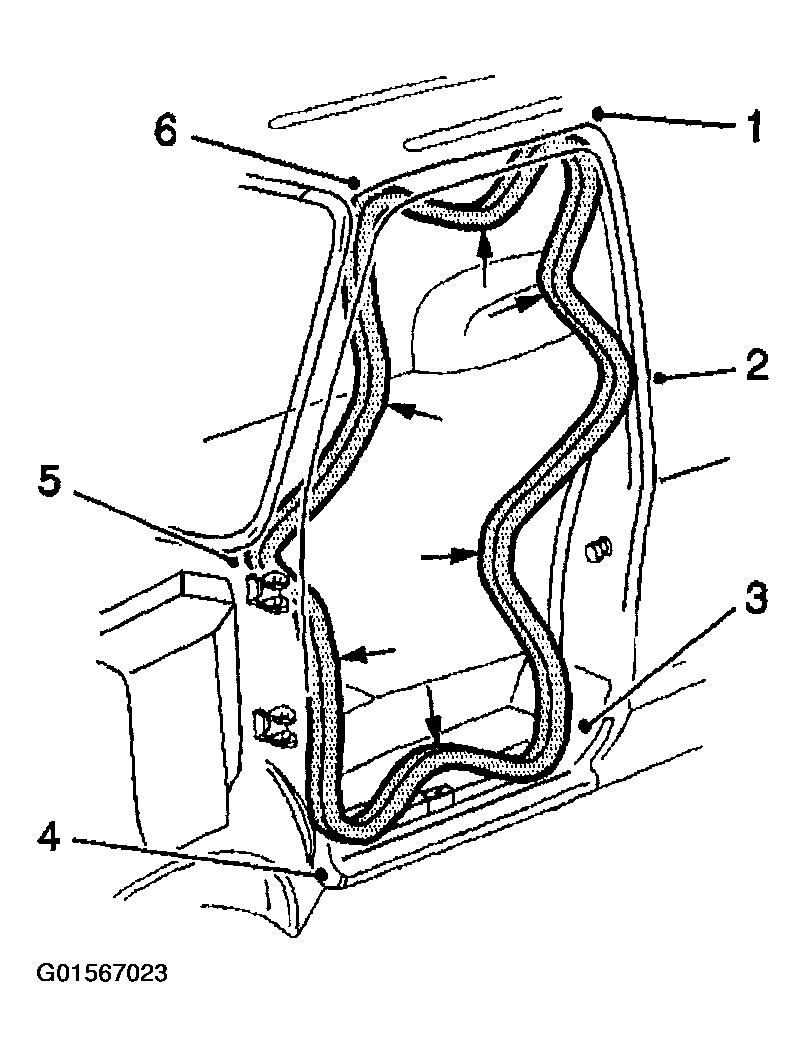

    Fig 1: Removing Weatherstrip From Pinchweld Flange Of Door
    G01567023Courtesy of GENERAL MOTORS CORP.
