Removal Procedure

  1. Remove the garnish molding. Refer to GARNISH MOLDING REPLACEMENT - SLIDING DOOR in Interior Trim.
  2. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - SLIDING DOOR .

    Important:  Water deflectors seal the inner panel. Water deflectors prevent water from entering into the body. A strip of adhesive between the deflector and the door secures the deflector.

  3. Peel the water deflector (1) away from the door.

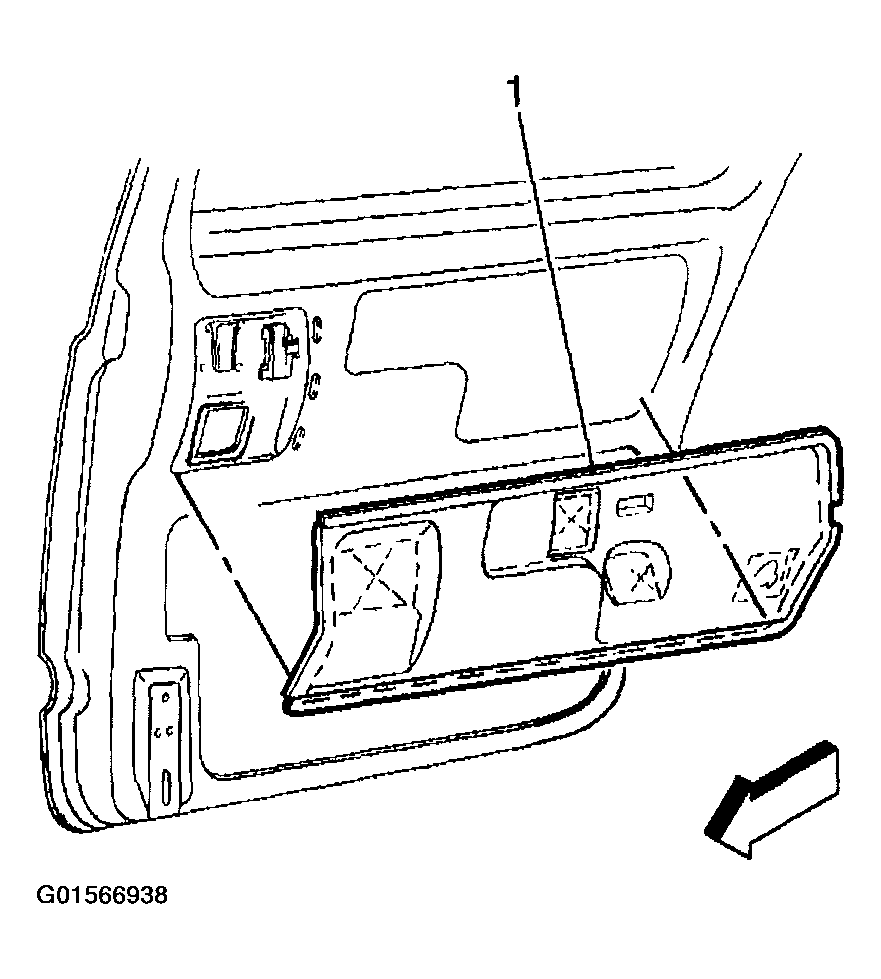

    Fig 1: Removing Water Deflector
    G01566938Courtesy of GENERAL MOTORS CORP.
