Removal Procedure

  1. Remove the right hand body side trim panel. Refer to TRIM PANEL REPLACEMENT - RIGHT BODY SIDE .
  2. Remove the two bolts that retain the rear storage compartment, if equipped.
  3. Remove the bolts (5).
  4. Remove the striker (4).
  5. Remove the spacer (3).
  6. Remove the washer (2).
  7. Remove the nut plate (1).

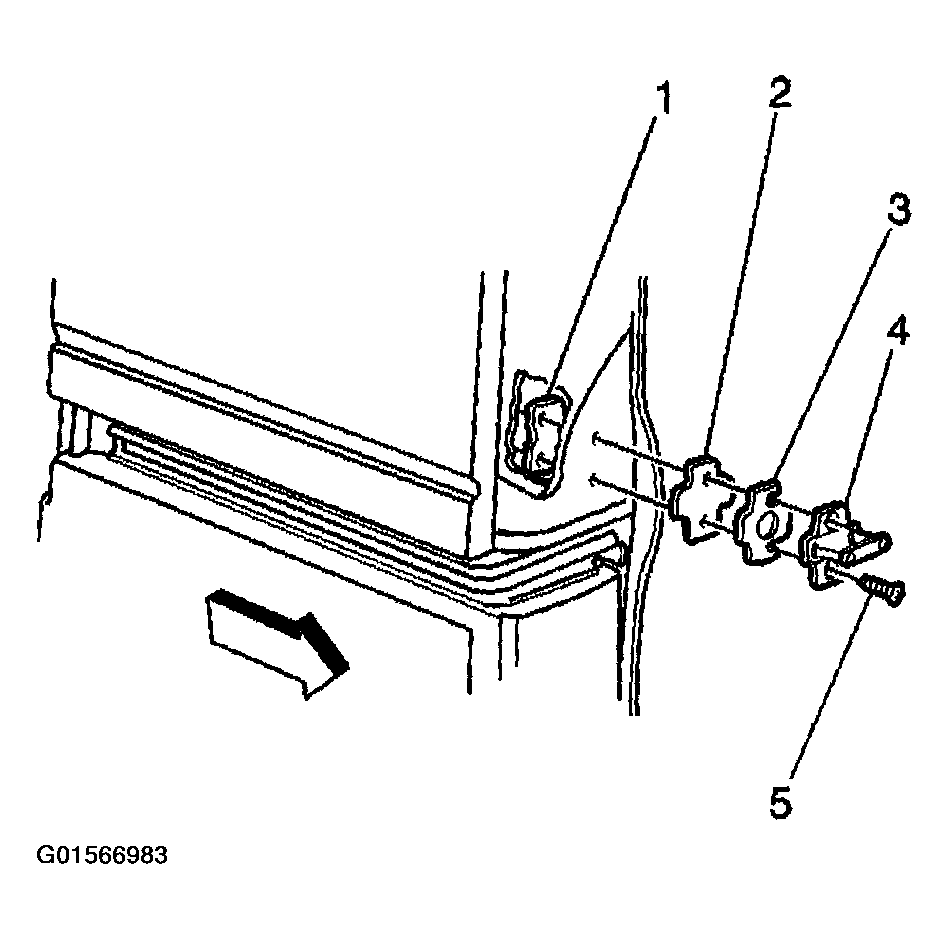

    Fig 1: Removing Striker, Spacer And Nut Plate - Sliding Door Rear
    G01566983Courtesy of GENERAL MOTORS CORP.
