Removal Procedure

  1. Remove the interior trim if necessary to gain access to the striker nut.
  2. Remove door striker using J 29843-9.

    Hold the nut in order to prevent the nut from falling into the body pillar.

  3. Remove the nut from the vehicle.
  4. Remove the spacer from the vehicle.
  5. Remove the insulator from the vehicle.
  6. Adjust the striker to properly engage the door lock once the door is adjusted within the frame.
  7. Ensure that the striker is used to adjust the door for flushness only, not to raise or lower the door.

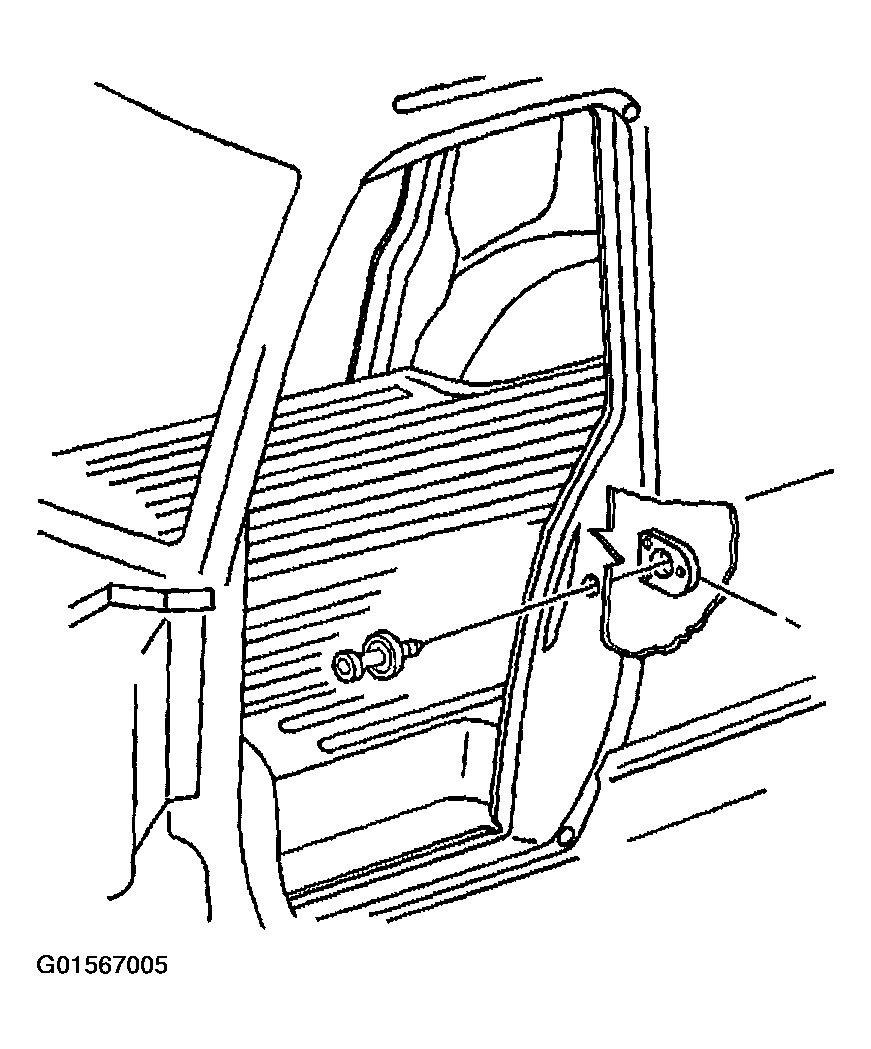

    Fig 1: Removing Door Striker
    G01567005Courtesy of GENERAL MOTORS CORP.
