Removal Procedure

  1. Remove the shoulder belt guide bolt from the door pillar. Refer to SEAT BELT RETRACTOR REPLACEMENT - RIGHT REAR .
  2. Pull the trim panel forward and reach behind the trim panel to the striker bolt nut in order to remove the screw at the bottom of the door pillar trim.
  3. Remove the striker bolt (4).
  4. Remove the striker nut (1).

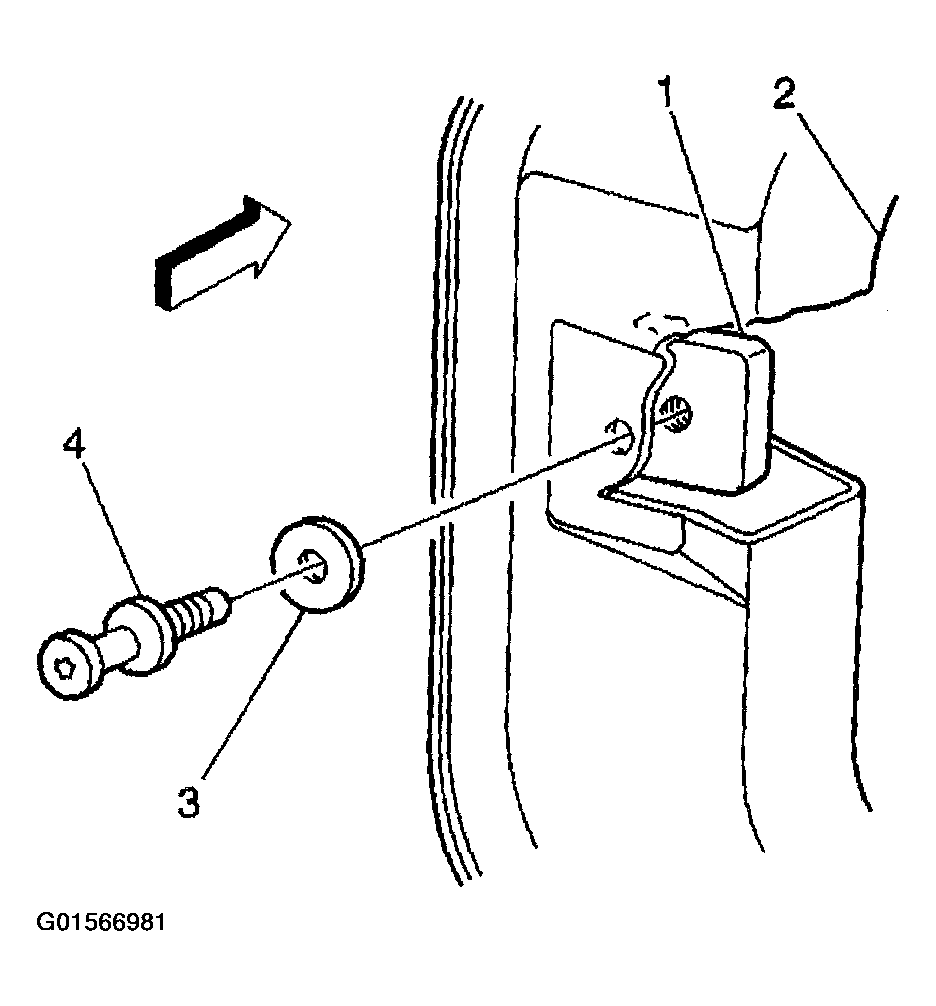

    Fig 1: Removing Striker Bolt - Sliding Door Front
    G01566981Courtesy of GENERAL MOTORS CORP.
