Removal Procedure

  1. Roll the window down.
  2. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .
  3. Remove the outer sealing strip from the door frame.

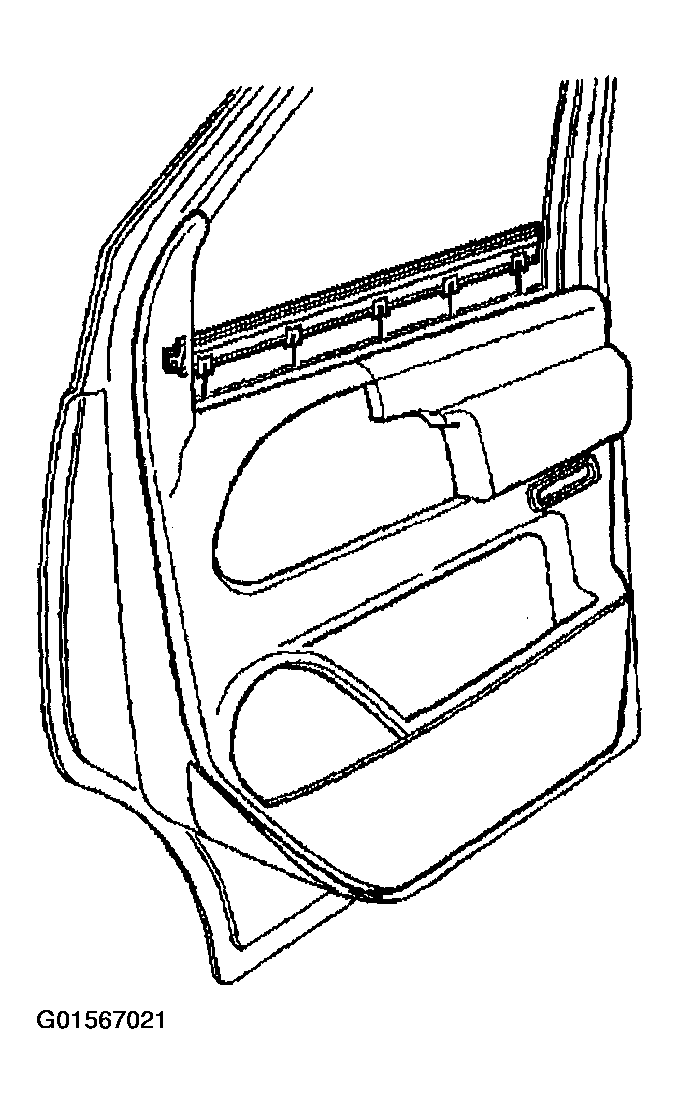

    Fig 1: Removing Outer Sealing Strip From Door Frame
    G01567021Courtesy of GENERAL MOTORS CORP.
