Removal Procedure

  1. Remove the upper roller bracket garnish molding.
  2. Remove the rubber stopper from the upper roller track.
  3. Remove the front cap.
  4. Remove the bracket (1) to door bolts (4).
  5. Remove the upper roller bracket from the track.

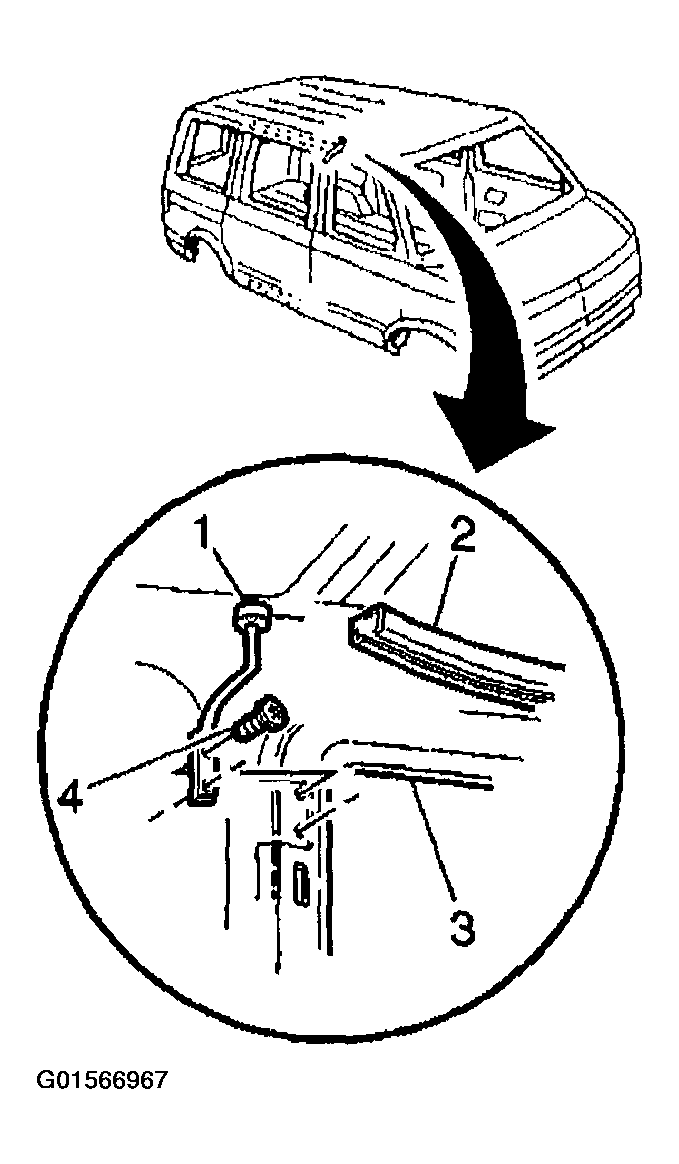

    Fig 1: Removing Upper Roller Bracket
    G01566967Courtesy of GENERAL MOTORS CORP.
