Installation Procedure

  1. Install the upper roller bracket (1) to the track.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bracket to door and bolts (4).

    Tighten

    Tighten the bracket bolts to the door to 25 N.m (18 lb ft).

  3. Install the front cap.
  4. Install the rubber stopper to the upper roller track.
  5. Install the upper roller bracket garnish molding.

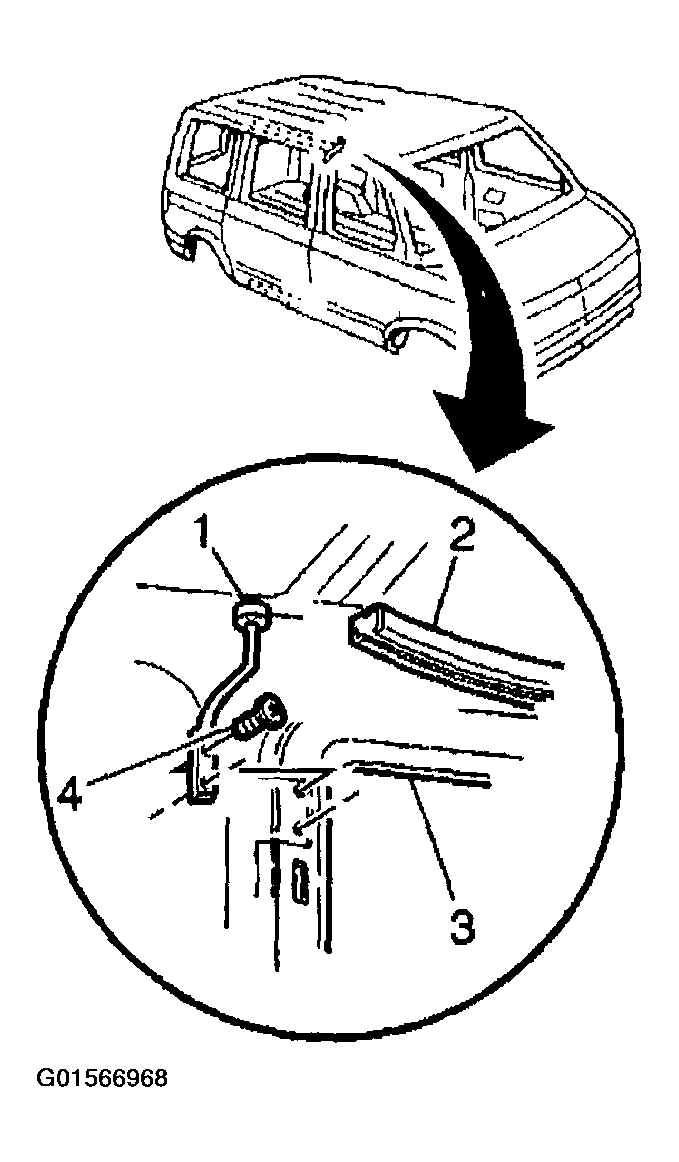

    Fig 1: Installing Upper Roller Bracket
    G01566968Courtesy of GENERAL MOTORS CORP.
