Removal Procedure

  1. Use a grease pencil in order to mark the position of the bracket on the door.
  2. Disconnect the lower corner of the door trim panel to expose the bracket (2) to door bolts.
  3. Support the bottom of the door.
  4. Remove the bracket (2) to door bolts.
  5. Slide the bracket (2) out of the rear of the track in order to remove the bracket from the body.

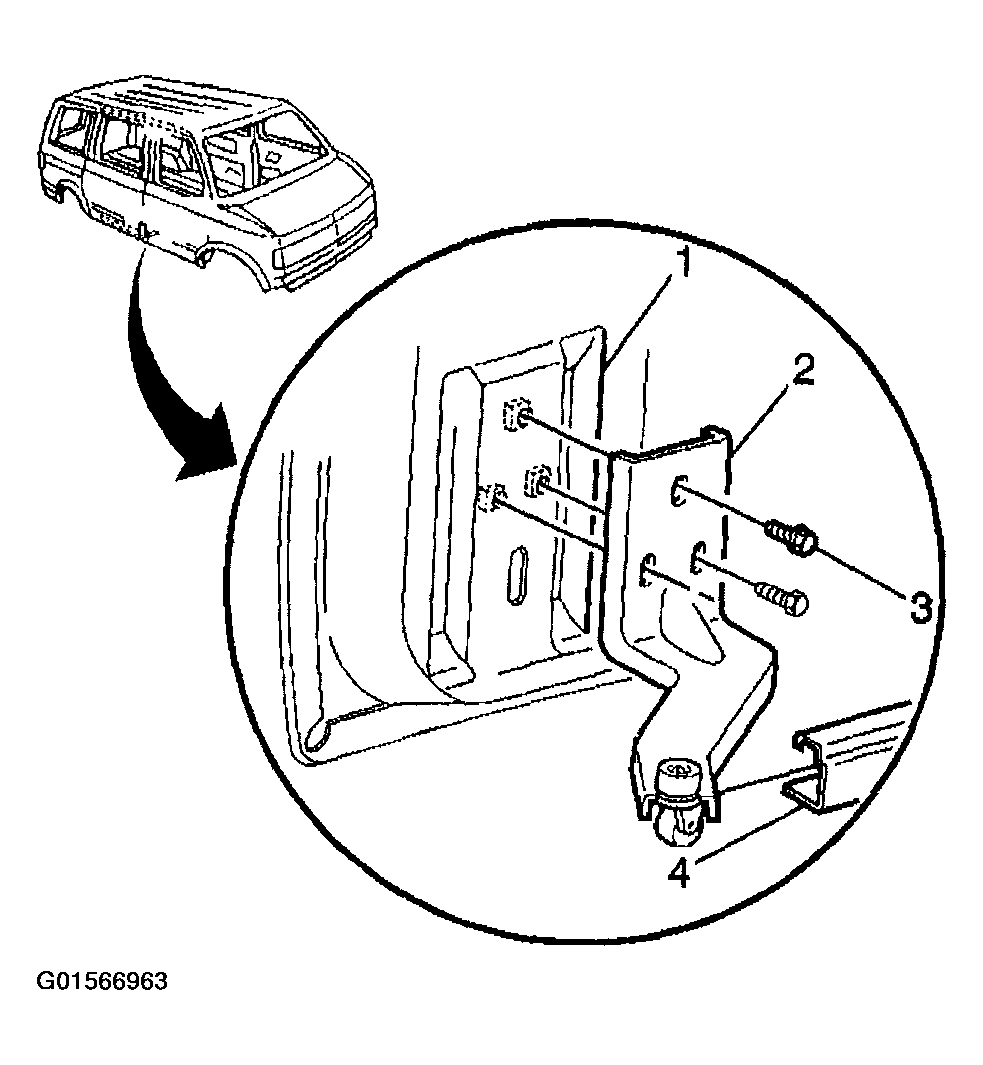

    Fig 1: Removing Lower Roller Bracket
    G01566963Courtesy of GENERAL MOTORS CORP.
