Removal Procedure

  1. Remove the center roller track cover. Refer to CENTER TRACK COVER REPLACEMENT - SLIDING DOOR .
  2. Position the sliding door inward for door clearance.

    Remove the bolts (5) that retain the center roller bracket (2) to the door.

  3. Disconnect the retaining spring located around the pin in order to release.
  4. Support the sliding door at the bottom rear corner.
  5. Slide the bracket rearward.
  6. Remove the bracket (2) from the center roller track.

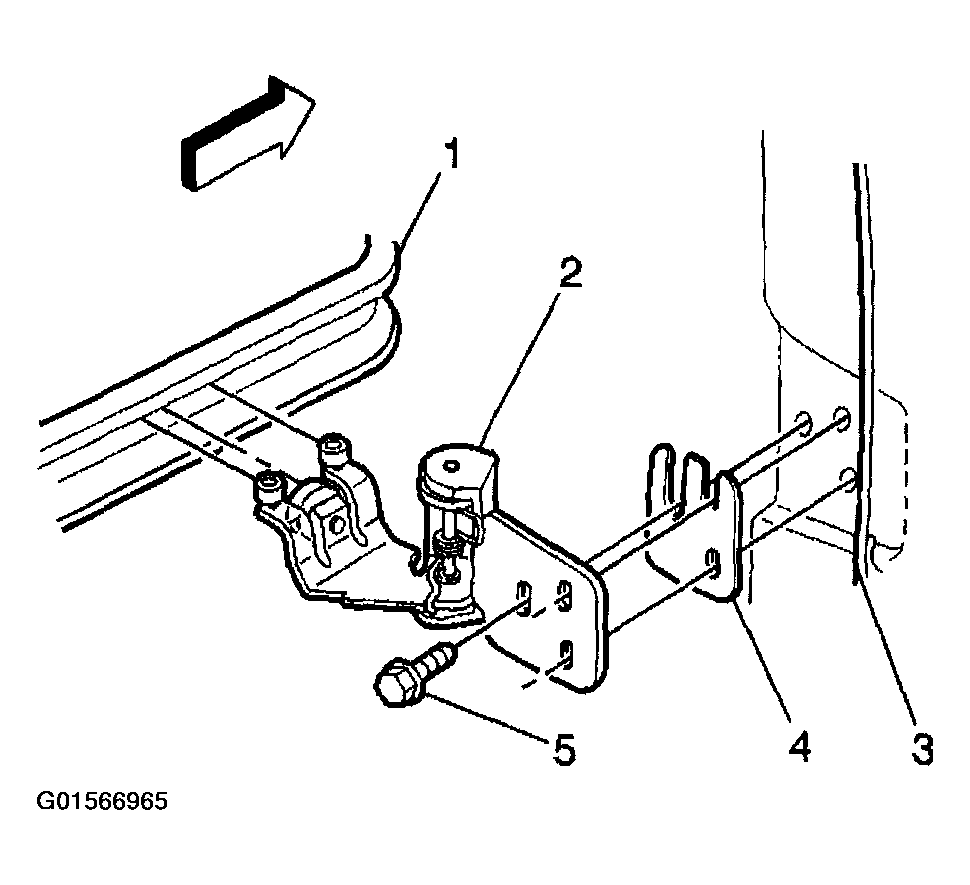

    Fig 1: Removing Bracket From Center Roller Track
    G01566965Courtesy of GENERAL MOTORS CORP.
