Removal Procedure

Important:  If door lock cylinders require replacement for any reason, apply a coating of GM P/N 12346241 or equivalent lubricant inside of the lock case and the cylinder keyway prior to assembling and installing the cylinder.

1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .
2. Use a sharp bladed tool in order to separate the water deflector at the perforations. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR .
3. Remove the access hole plug (1).
4. Remove the lock rod from the door handle.
5. Remove the nuts from the door handle (4).
6. Remove the door handle from the door (2).
7. Remove the lock rod from the lock cylinder (3).
8. Remove the lock cylinder retainer.
9. Remove the lock cylinder and the gasket (5) from the door.

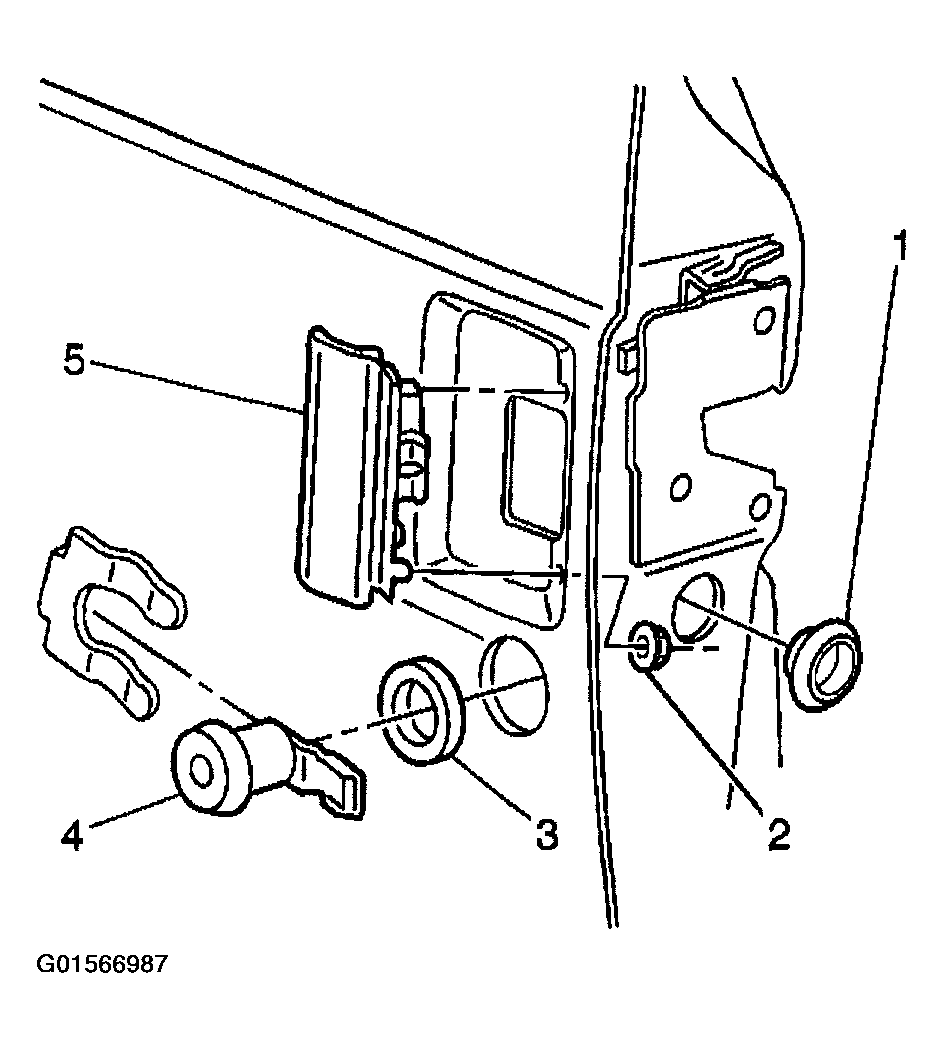

   Fig 1: Removing Outside Handle & Lock Cylinder

   Courtesy of GENERAL MOTORS CORP.
