Removal Procedure

  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .
  2. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - SLIDING DOOR .
  3. Remove the upper access cover, if equipped.
  4. Remove the lock rods (1) from the lock assembly (1 and 3).

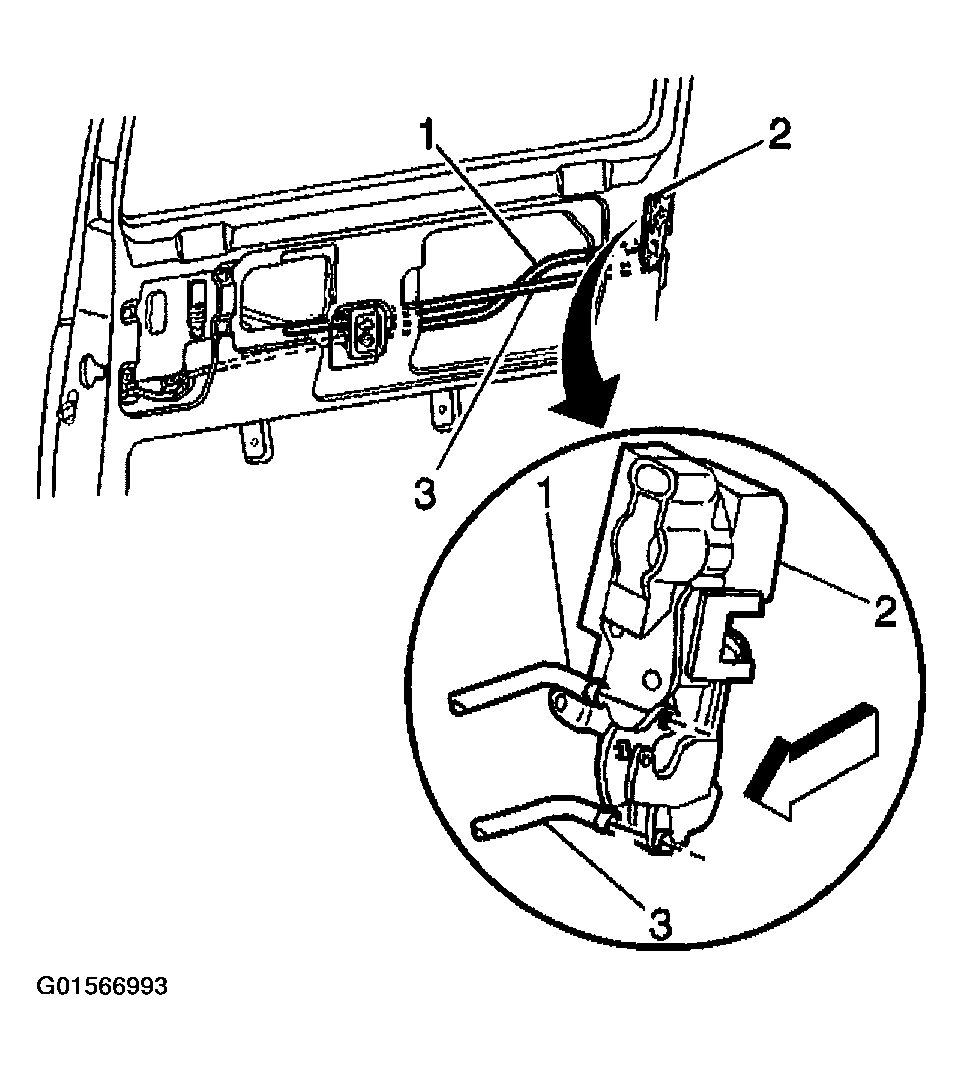

    Fig 1: Removing Lock Rods From Lock Assembly (Sliding Door)
    G01566993Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connector from the lock (5).
  6. Remove the lock bolts (1).

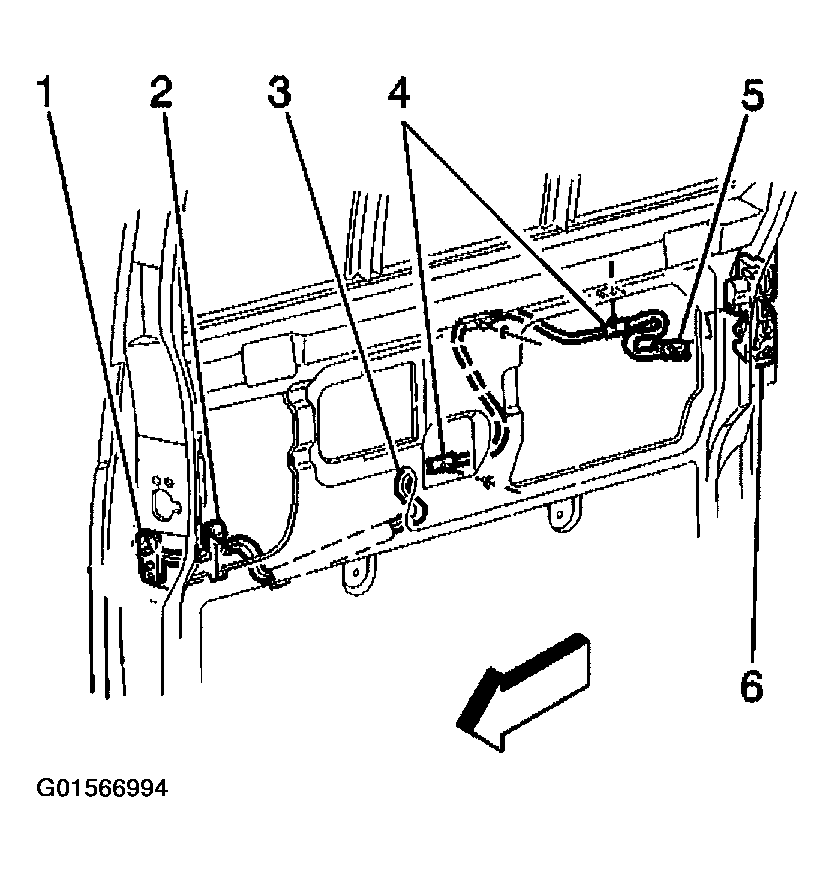

    Fig 2: Disconnecting Electrical Connector From Lock
    G01566994Courtesy of GENERAL MOTORS CORP.
  7. Remove the lock (1) from the door (2).

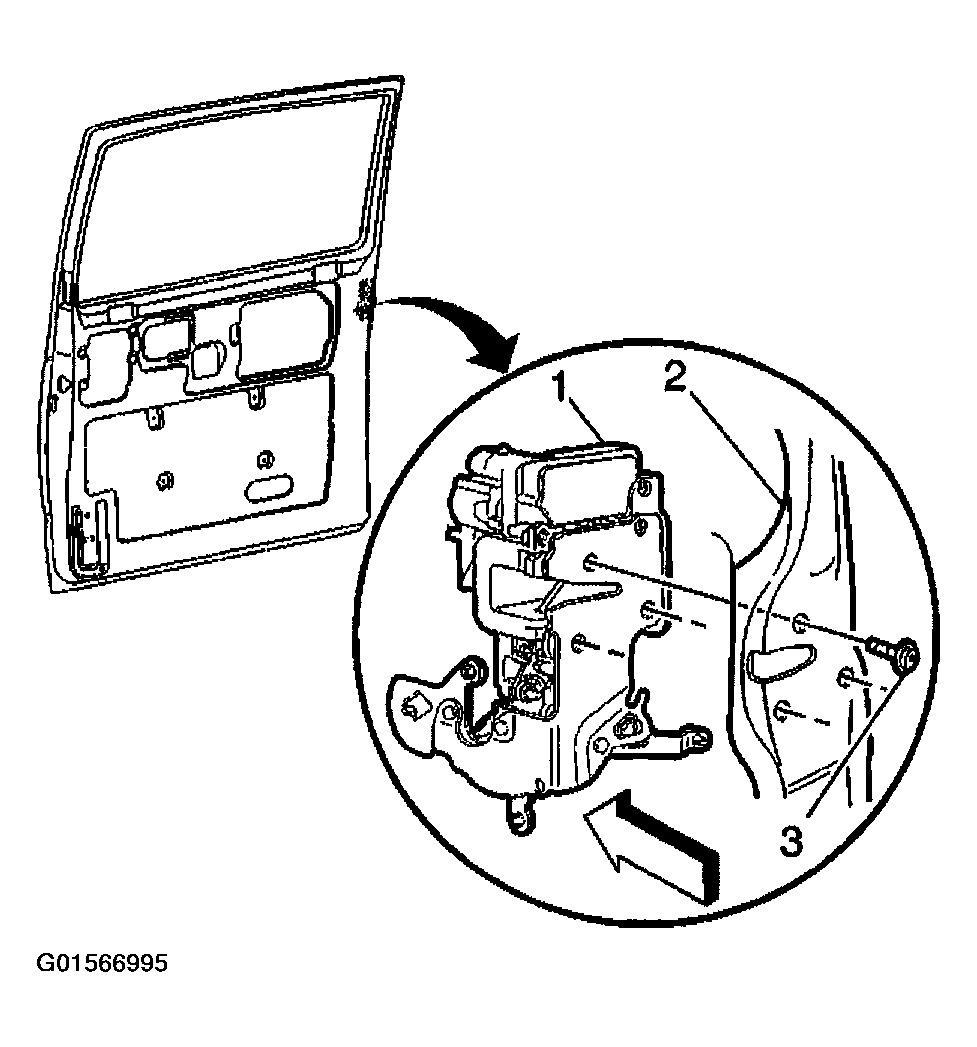

    Fig 3: Removing Lock From Door
    G01566995Courtesy of GENERAL MOTORS CORP.
