Removal Procedure

  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .
  2. Remove the lock rod from the lock assembly to the lock control.
  3. Remove the lock rod from the lock cylinder to the lock control.
  4. Remove the lock rod from the outside handle to the lock control.
  5. Remove the lock control bolts (2).
  6. Remove the lock control (1) from the door.

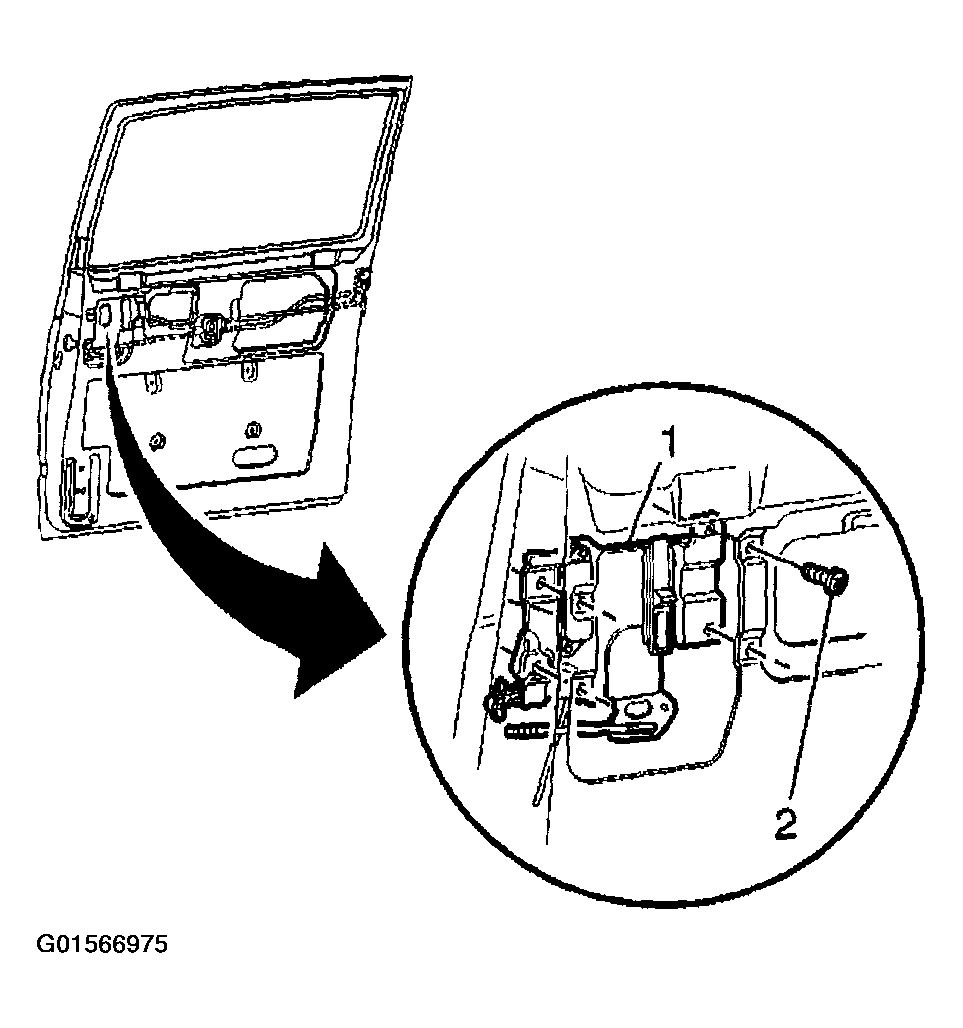

    Fig 1: Removing Lock Control From The Door
    G01566975Courtesy of GENERAL MOTORS CORP.
