Removal Procedure

  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .
  2. Remove the lock rod from the lock lever clip (2).
    Fig 1: Removing Lock Rod From Lock Lever Clip
    G01566969Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolts that retain the lever to the door.

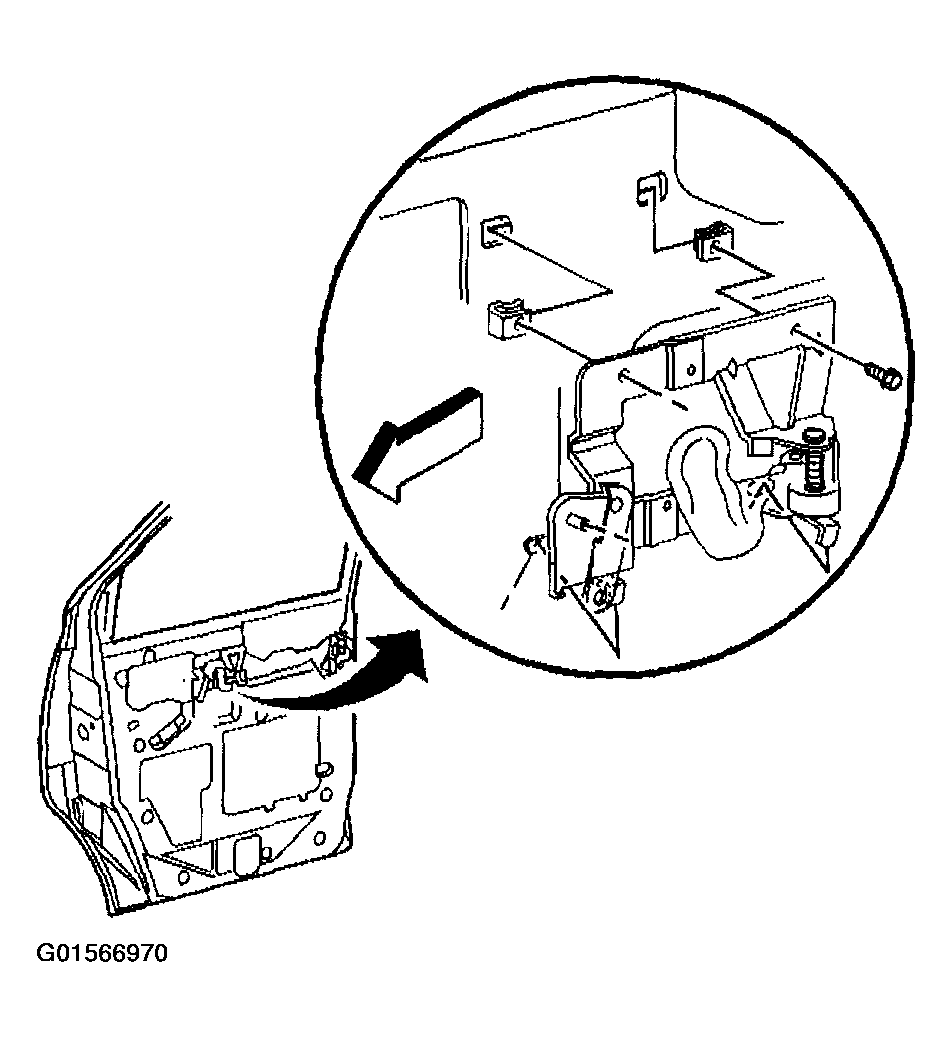

    Fig 2: Removing Bolts That Retain Lever To Door
    G01566970Courtesy of GENERAL MOTORS CORP.
  4. Remove the lock lever from the door.

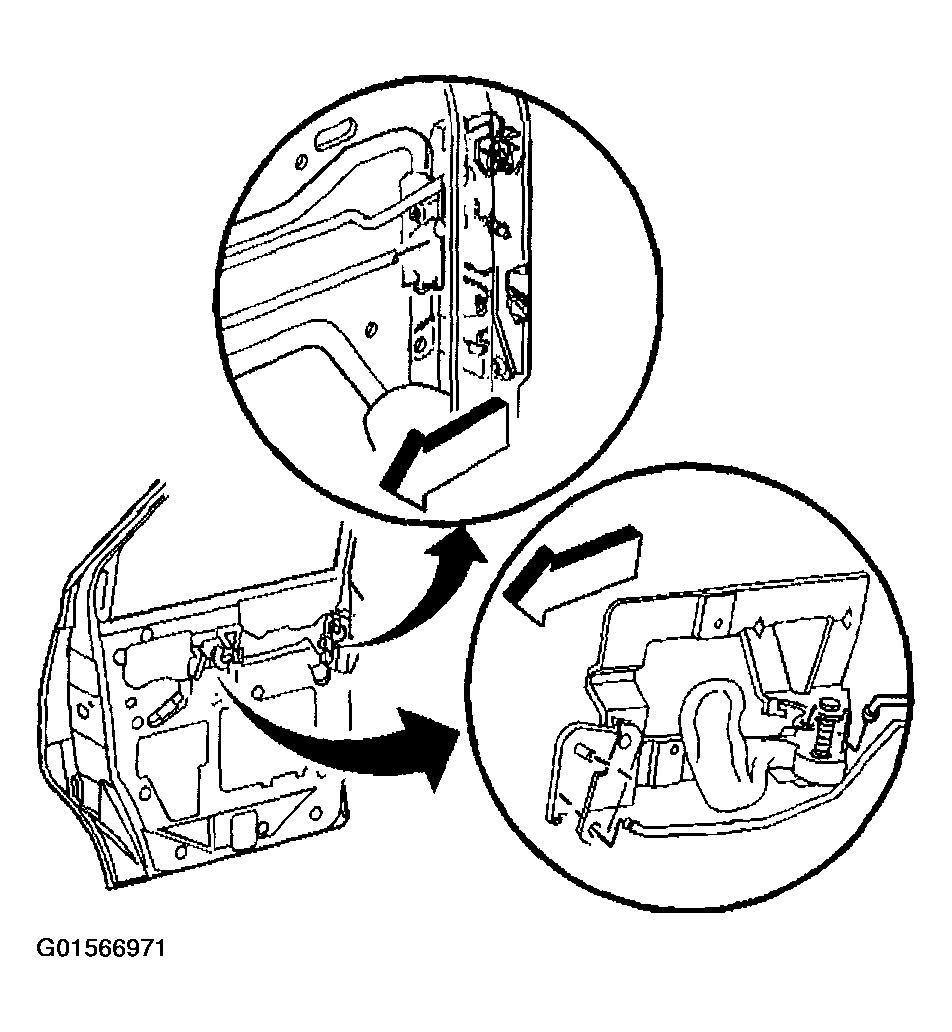

    Fig 3: Removing Lock Lever From Door
    G01566971Courtesy of GENERAL MOTORS CORP.
