Removal Procedure

  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .
  2. Use a sharp bladed tool in order to separate the water deflector at the perforations. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  3. Remove the power door lock actuator in order to remove the remote lever rod.
  4. Disconnect the power door lock actuator wiring harness.
  5. Use a 6 mm (1/4 in) drill bit in order to remove the actuator to door rivets.
  6. Remove the actuator from the door.

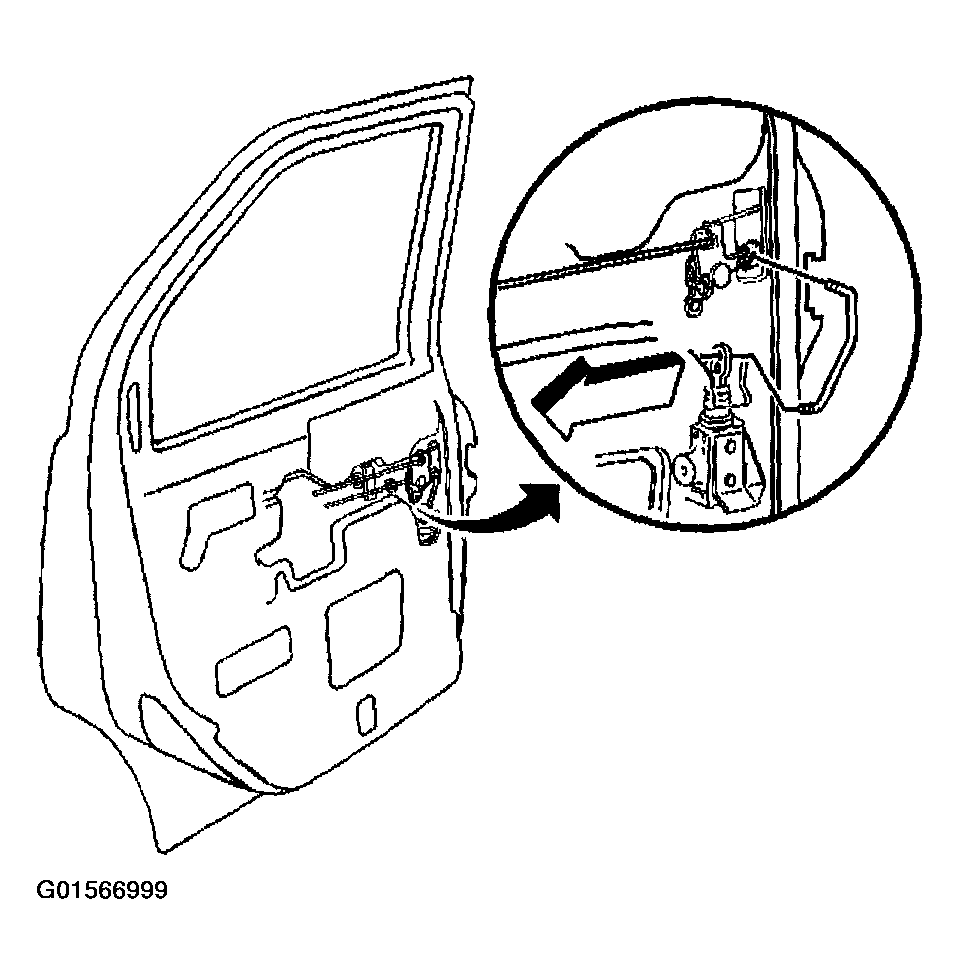

    Fig 1: Removing Actuator From The Door
    G01566999Courtesy of GENERAL MOTORS CORP.
