Removal Procedure

  1. Support the door for removal, with an assistant.
  2. Remove the center track cover. Refer to CENTER TRACK COVER REPLACEMENT - SLIDING DOOR .

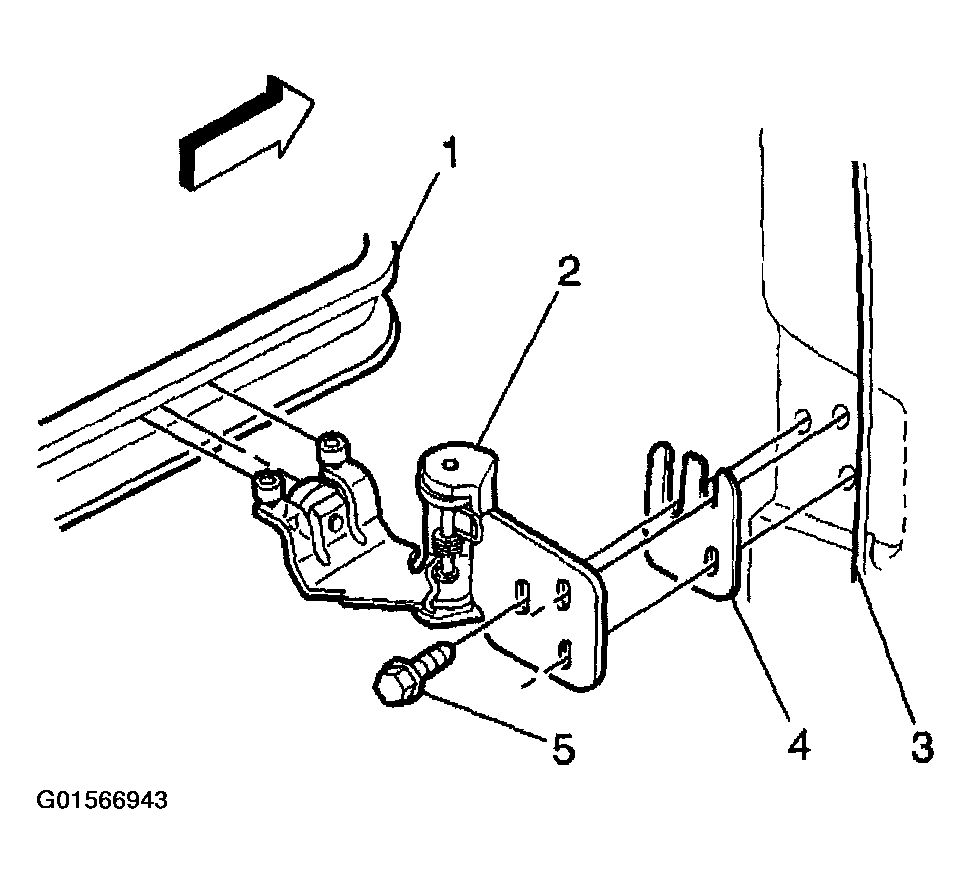

  3. Remove the bolts (5) from the center roller bracket (2) that attach to the door (3).
    Fig 1: Removing Bolts From Center Roller Bracket
    G01566943Courtesy of GENERAL MOTORS CORP.

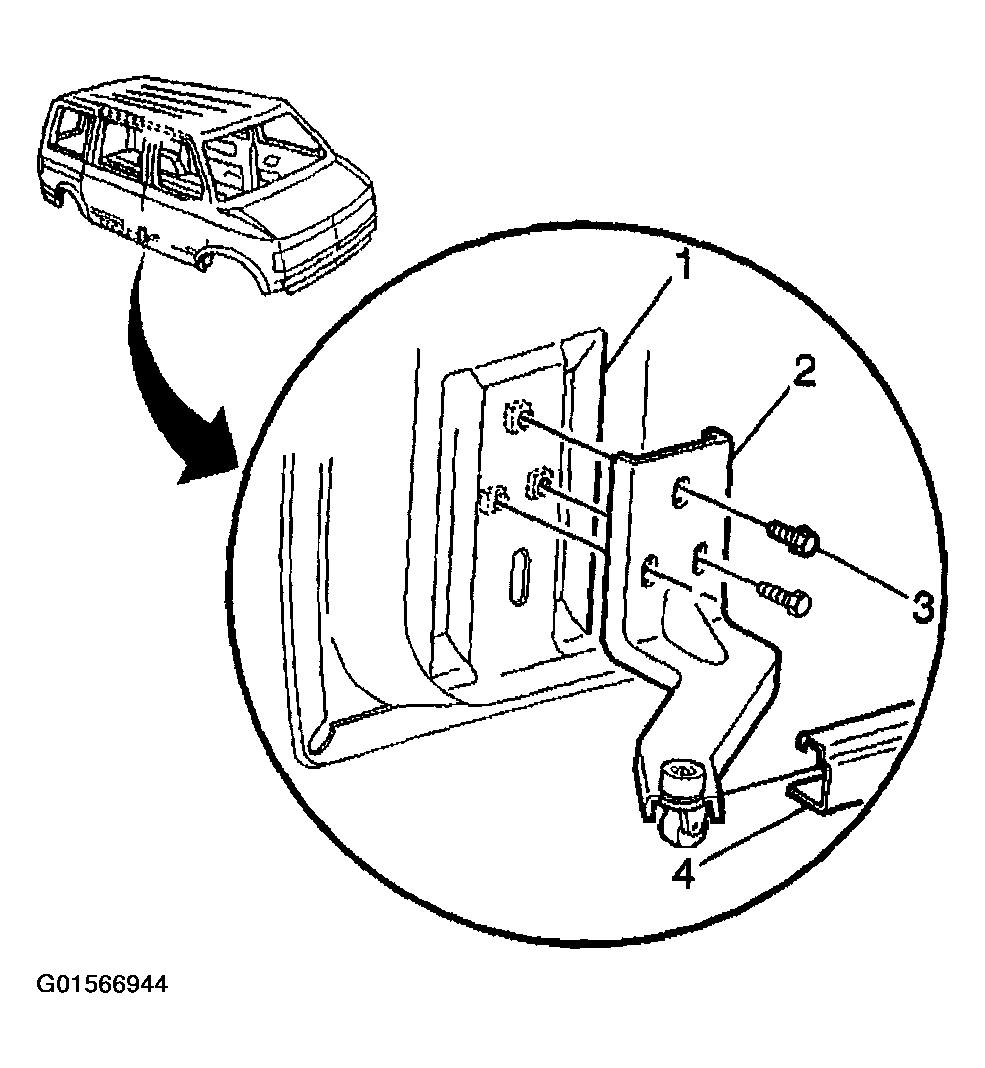

  4. Remove the bolts (3) from the lower roller bracket (2) that attach to the door (1).
    Fig 2: Removing Bolts From Lower Roller Bracket
    G01566944Courtesy of GENERAL MOTORS CORP.

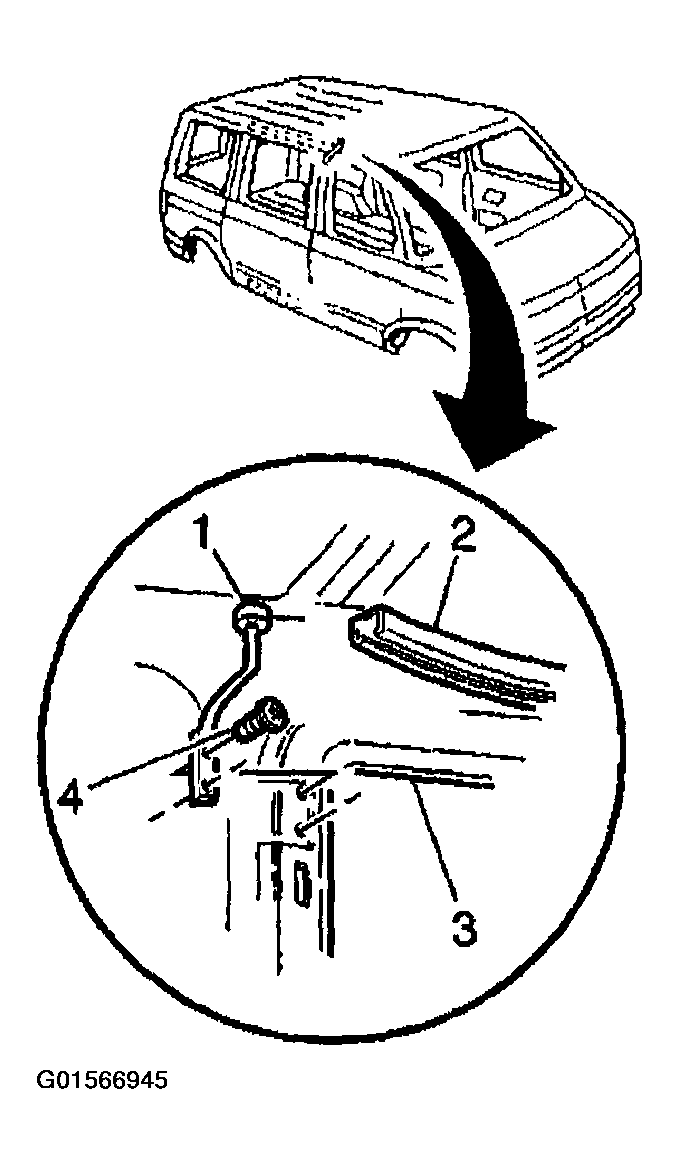

  5. Remove the bolts (4) from the upper roller bracket (1) that attach to the door.
    Fig 3: Removing Bolts From Upper Roller Bracket
    G01566945Courtesy of GENERAL MOTORS CORP.
  6. Remove the door from the vehicle.
