Removal Procedure

  1. Remove the screws (3) that retain the upper access cover (2) to the door.
  2. Remove the upper access cover (2) from the door.

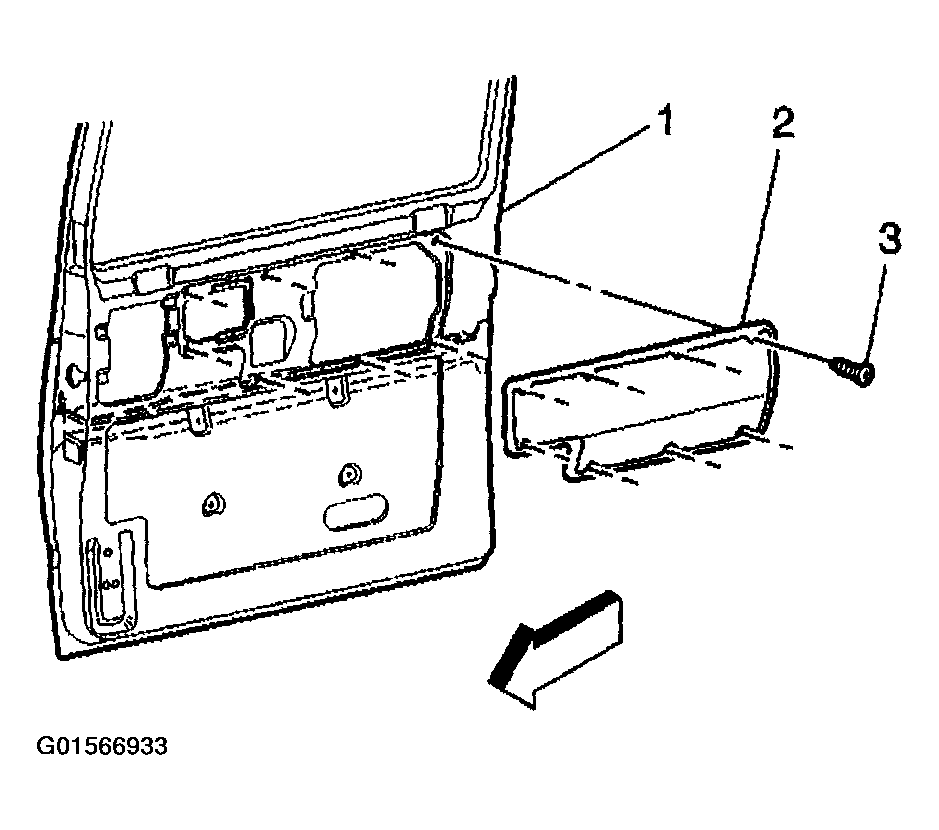

    Fig 1: Removing Upper Access Cover From The Door
    G01566933Courtesy of GENERAL MOTORS CORP.
