Installation Procedure

  1. Install the upper access cover (2) to the door.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws (3) that retain the upper access cover to the door.

    Tighten

    Tighten the screws that retain the upper access cover to the door to 4 N.m (18 lb in).

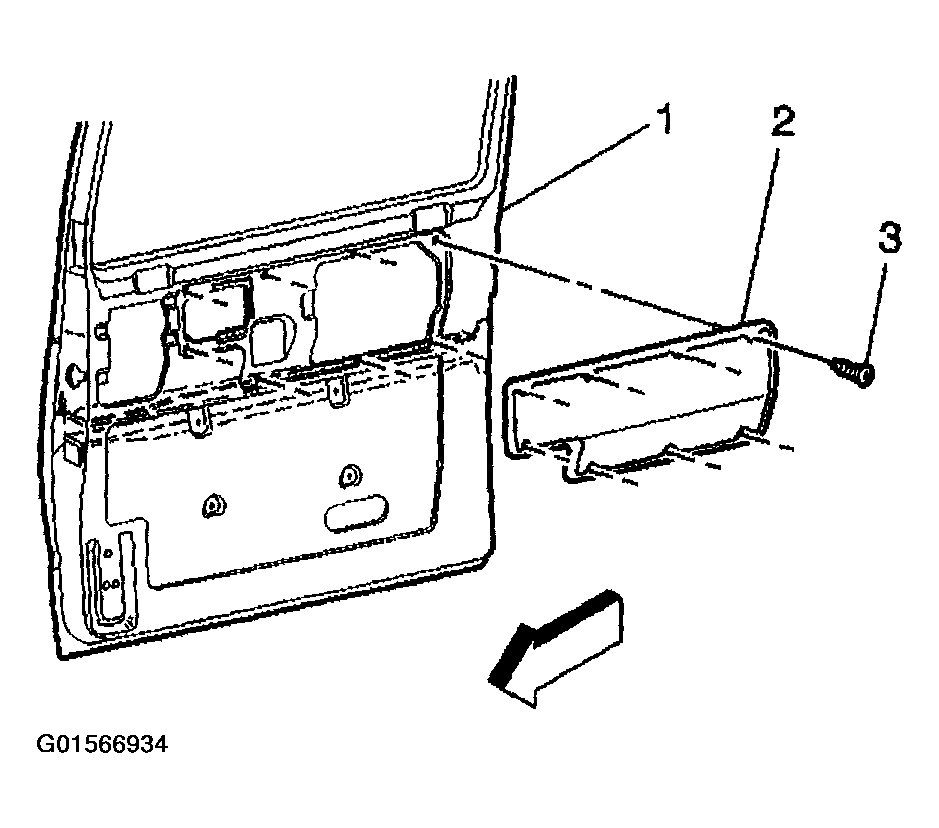

    Fig 1: Installing Upper Access Cover To The Door
    G01566934Courtesy of GENERAL MOTORS CORP.
