Removal Procedure

  1. Remove the screws that retain the power seat switch to the seat.

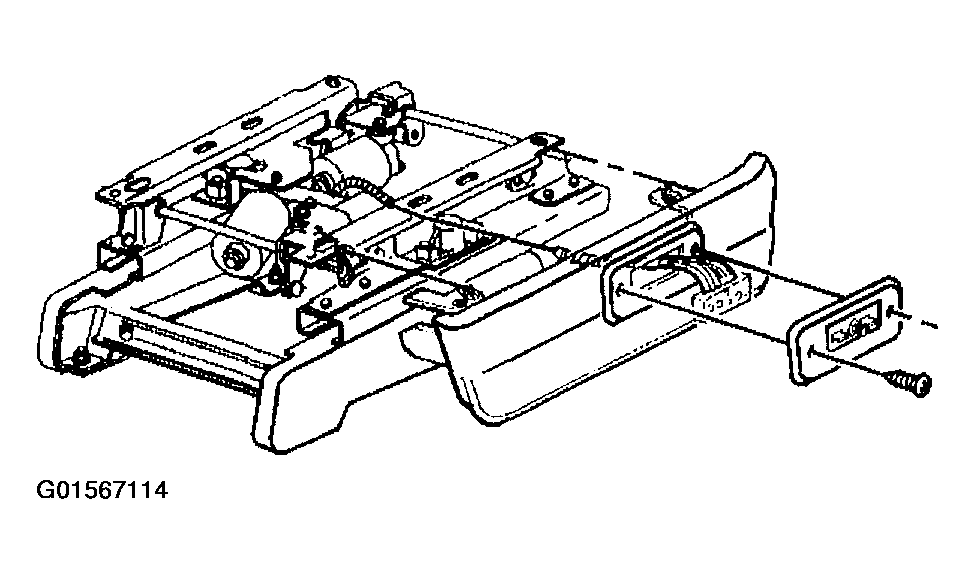

    Fig 1: Removing Screws Retaining Power Seat Switch To Seat
    G01567114Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector from the power seat switch.
  3. Remove the power seat switch.
    Fig 2: Removing Power Seat Switch
    G01567115Courtesy of GENERAL MOTORS CORP.
