Installation Procedure

  1. Connect the power seat switch electrical connector.
  2. Install the power seat switch.
    Fig 1: Installing Power Seat Switch
    G01567116Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the screws that retain the power seat switch to the seat.

    Tighten

    Tighten the power seat switch retaining screws to 2 N.m (18 lb in).

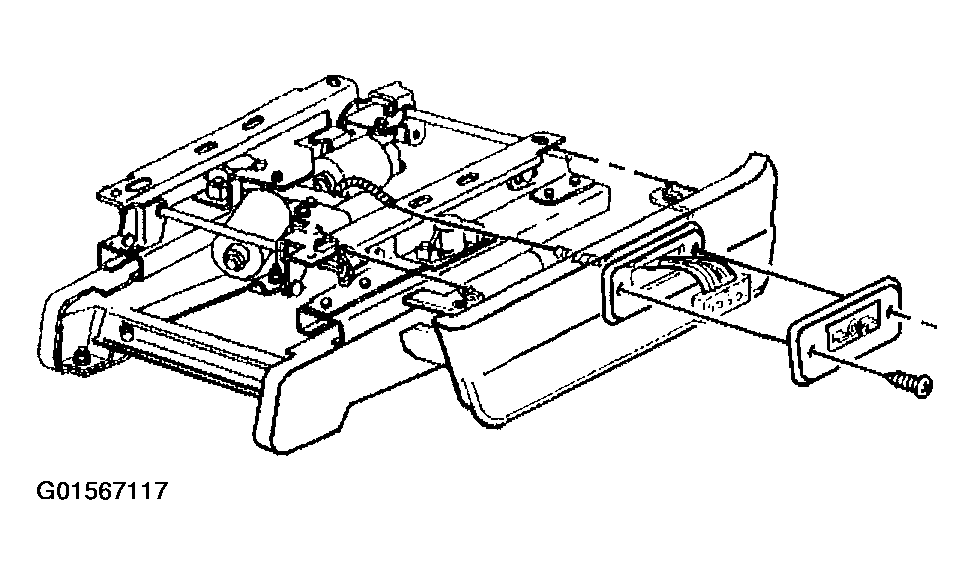

    Fig 2: Installing Screws Retaining Power Seat Switch To Seat
    G01567117Courtesy of GENERAL MOTORS CORP.
