Removal Procedure

  1. Remove the screws from the seat riser trim cover.
  2. Remove the seat bolts from the seat to riser.
  3. Remove the side trim covers from the seat riser.
  4. Remove the screws that retain the power seat trim plate to the cover.
  5. Disconnect the power seat switch electrical connector.
  6. Remove the power seat switch from the trim plate by snapping the switch out.

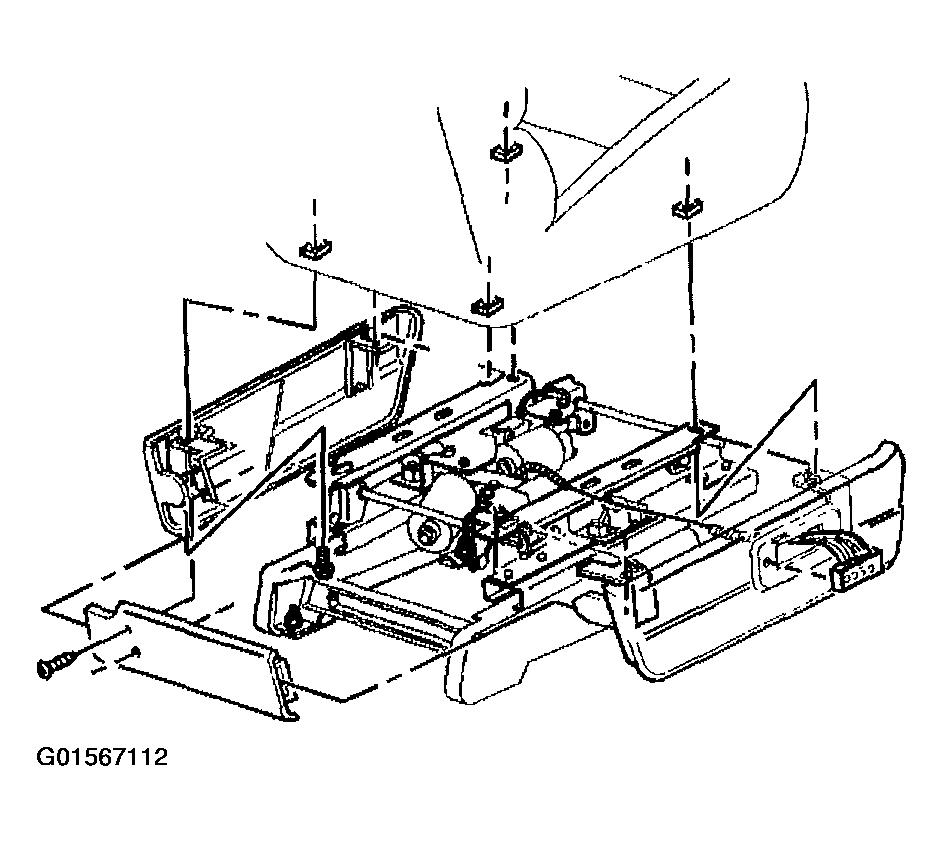

    Fig 1: Removing Screws Retaining Power Seat Trim Plate To Cover
    G01567112Courtesy of GENERAL MOTORS CORP.
