Removal Procedure

  1. Remove the seat belt from the side of the seat belt guide.
  2. Remove the nuts that retain the seat to the floor.
  3. Disconnect the electrical connector from the power seat if equipped.
  4. Remove the seat and the riser from the vehicle.
  5. Remove the seat belt guide from the seat riser.

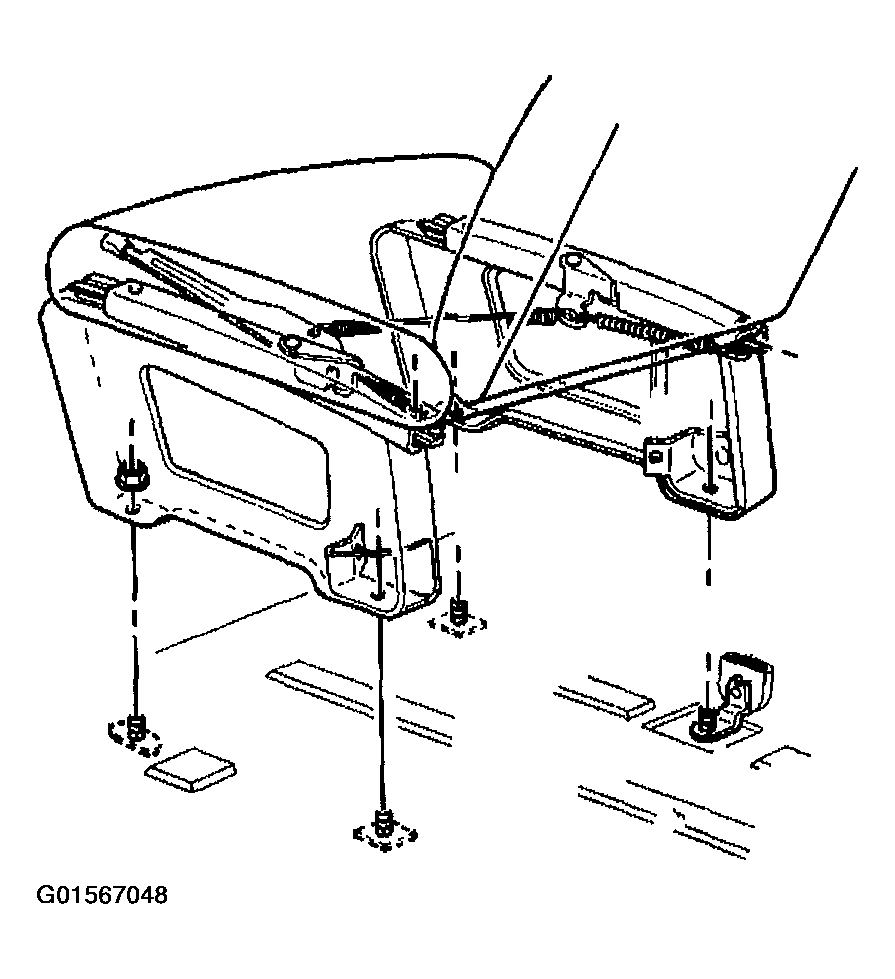

    Fig 1: Removing Nuts Retaining Seat To The Floor
    G01567048Courtesy of GENERAL MOTORS CORP.
  6. Remove the bolts that retain the seat to the riser.
  7. Remove the power seat from the seat risers if equipped. Refer to SEAT ADJUSTER MECHANISM REPLACEMENT - POWER  .
  8. Remove the manual seat adjuster wire from the seat tracks.
  9. Remove the seat riser spacer nuts and bolts from the seat tracks.
  10. Remove the seat riser spacer from the seat risers.

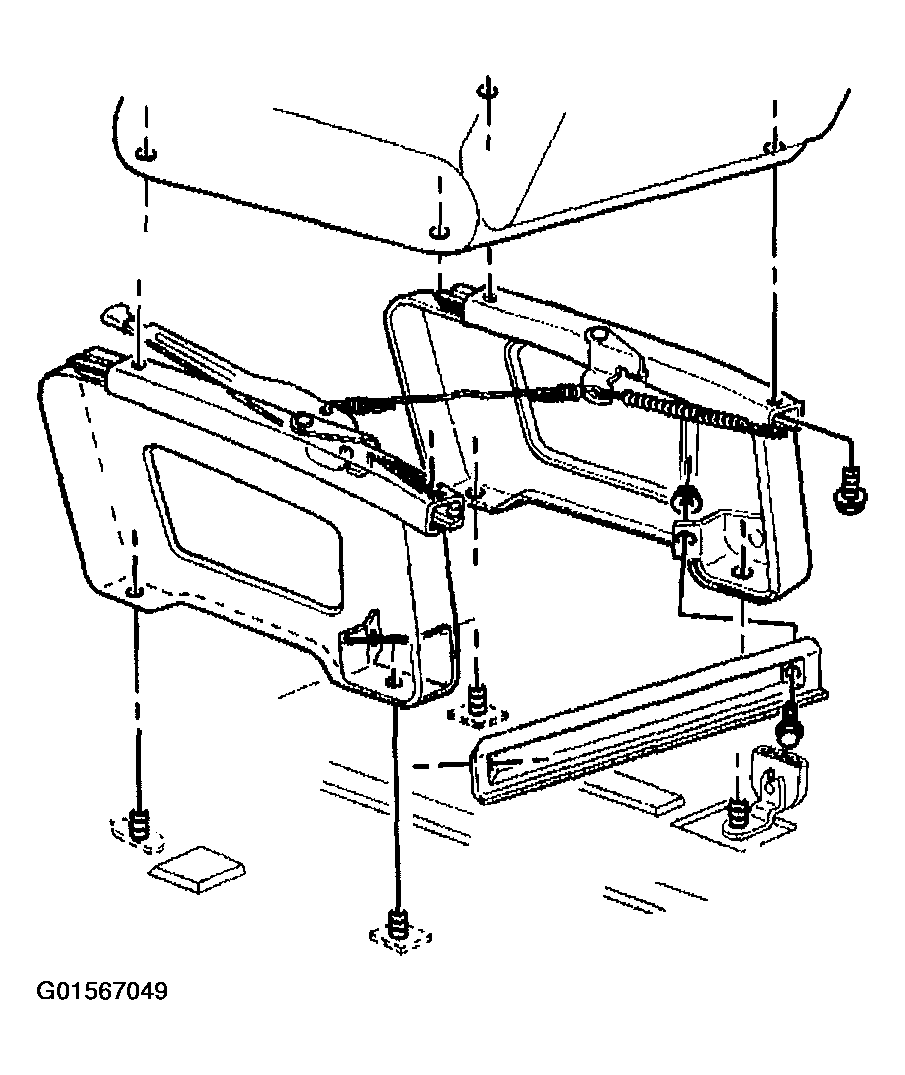

    Fig 2: Removing Power Seat From Seat Risers
    G01567049Courtesy of GENERAL MOTORS CORP.
