Installation Procedure

  1. Install the seat riser spacer to the seat risers.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the seat riser spacer nuts and bolts to the seat tracks.

    Tighten

    Tighten the seat riser spacer nuts and bolts to the seat tracks to 30 N.m (22 lb ft).

  3. Install the manual seat adjuster wire to the seat tracks.
  4. Install the power seat to the seat risers if equipped. Refer to SEAT ADJUSTER MECHANISM REPLACEMENT - POWER  .
  5. Install the seat belt guide to the seat riser.
  6. Install the nuts that retain the seat to the risers.

    Tighten

    Tighten the nuts that retain the seat to the riser to 43 N.m (32 lb ft).

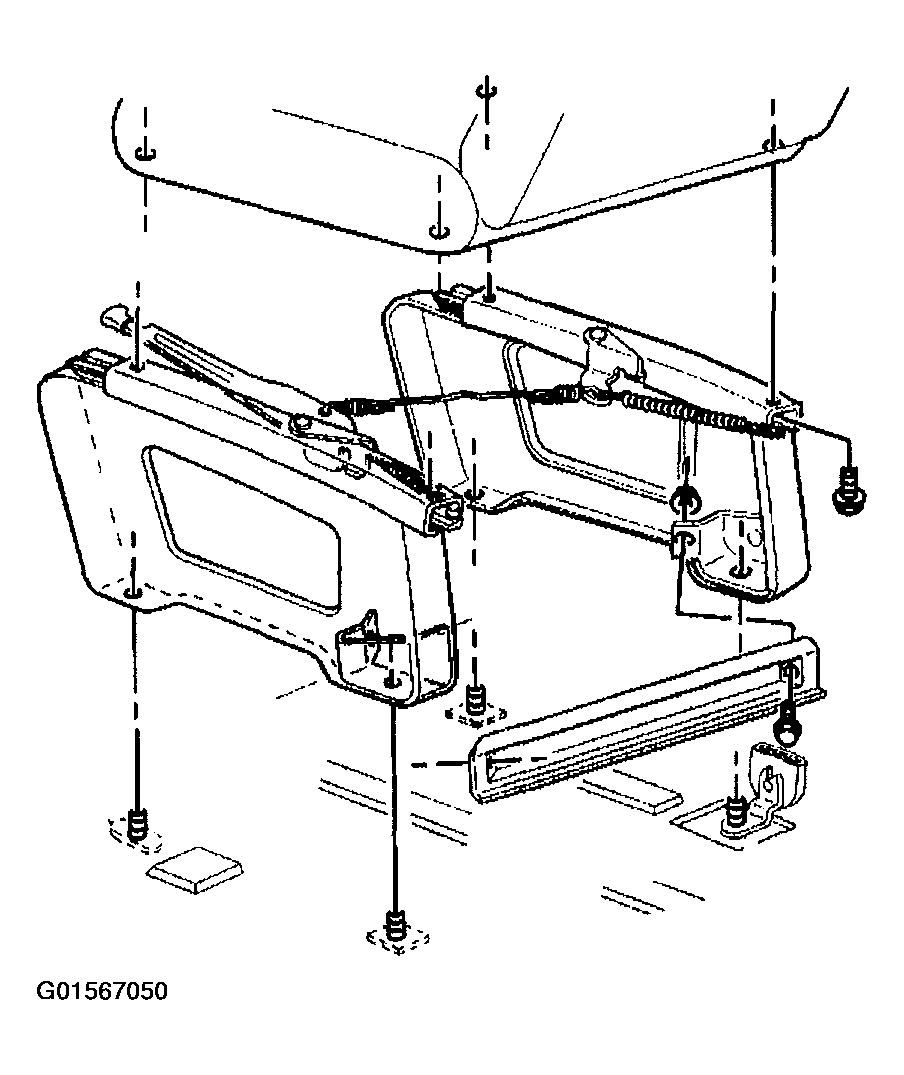

    Fig 1: Installing Power Seat To Seat Risers
    G01567050Courtesy of GENERAL MOTORS CORP.
  7. Install the seat and the seat riser in the vehicle.
  8. Connect the electrical connector to the power seat if equipped.
  9. Install the nuts that retain the seat to the floor.

    Tighten

    Tighten the nuts that retain the seat to the floor to 43 N.m (32 lb ft).

  10. Install the seat belt to the side of the seat belt guide.

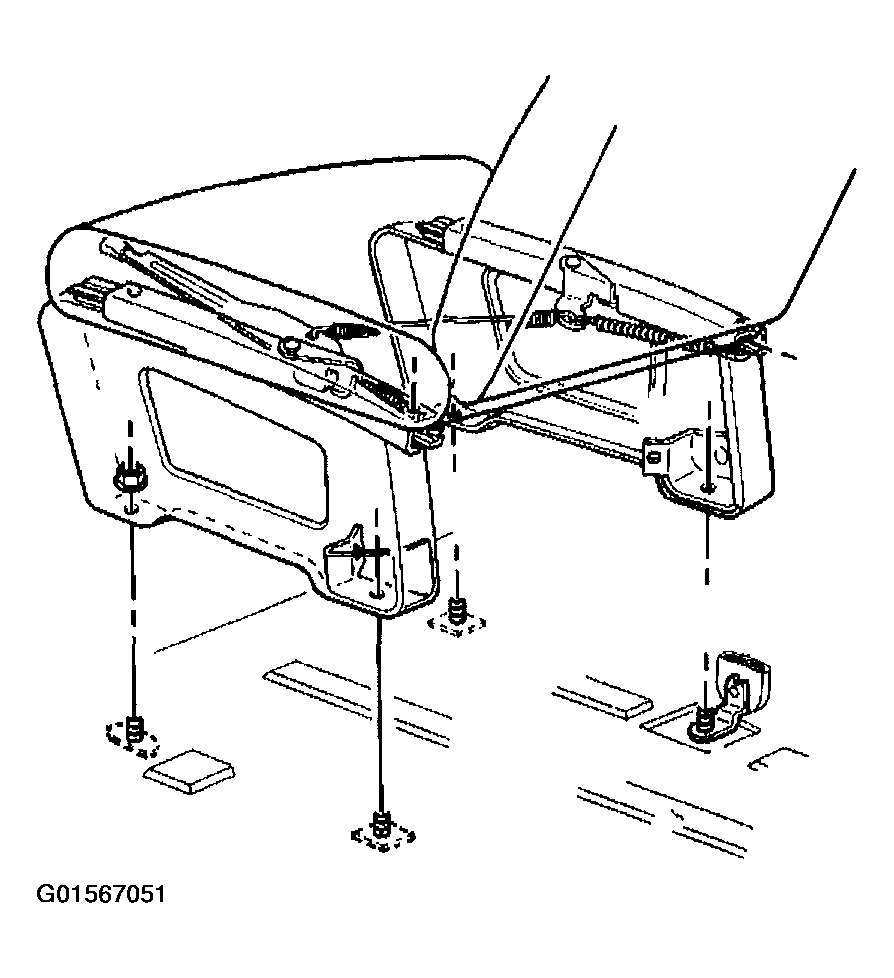

    Fig 2: Installing Seat To Floor
    G01567051Courtesy of GENERAL MOTORS CORP.
