Removal Procedure

  1. Remove the bucket seat from the vehicle. Refer to SEAT REPLACEMENT - BUCKET  .
  2. Remove the seat cushion cover and pad. Refer to SEAT CUSHION COVER REPLACEMENT - FRONT (YC5 AND YC6)  or SEAT CUSHION COVER REPLACEMENT - FRONT (YC7)  .
  3. Remove Lumbar support cable. Refer to LUMBAR SUPPORT CABLE REPLACEMENT  .
  4. Remove the seat back hinge bolts from the right side of the seat frame.

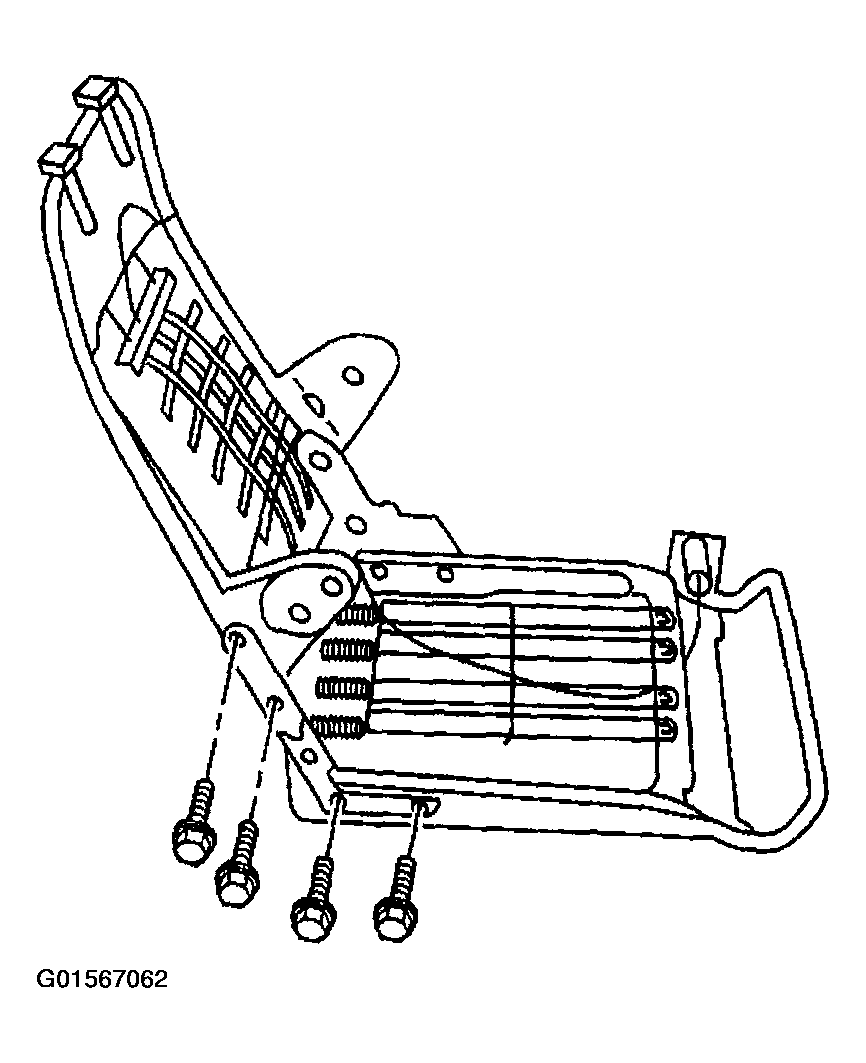

    Fig 1: Removing Seat Back Hinge Bolts From Right Side Of Seat Frame
    G01567062Courtesy of GENERAL MOTORS CORP.
  5. Remove the seat back hinge bolts from the left side of the seat frame.
  6. Remove the seat cushion frame from the seat back frame.

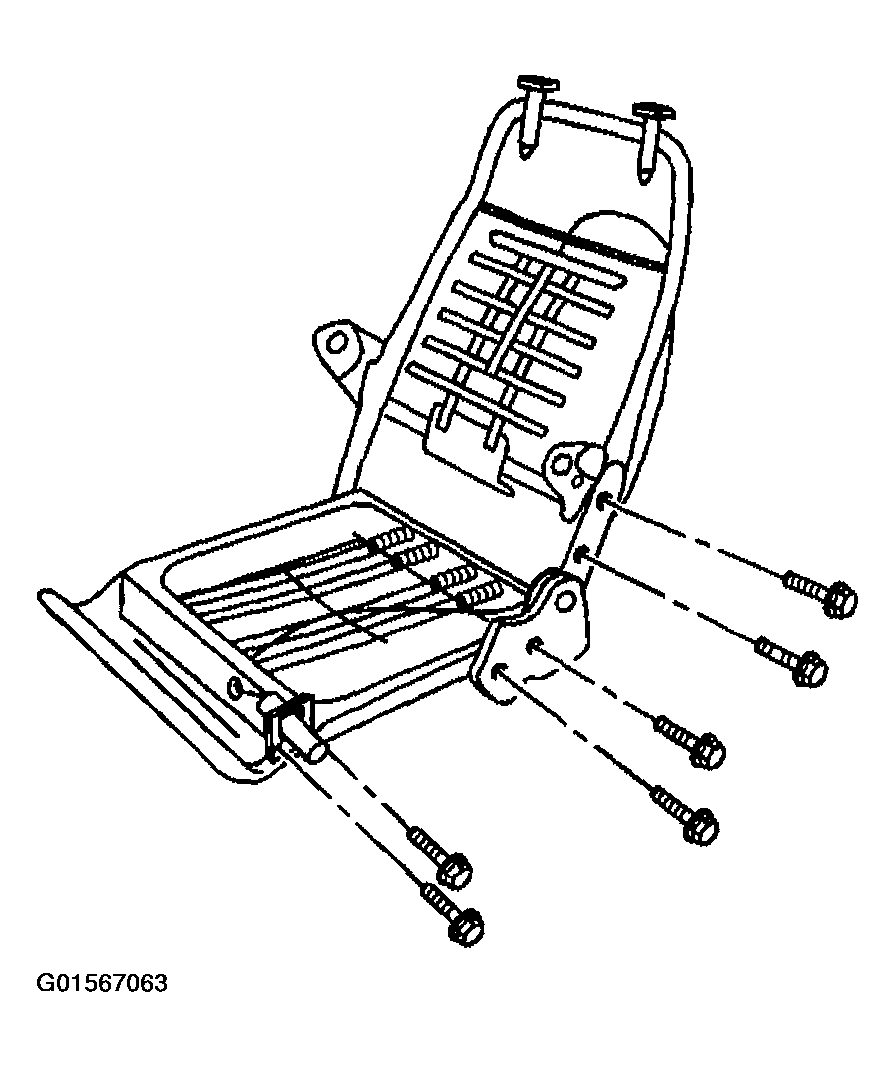

    Fig 2: Removing Seat Back Hinge Bolts From Left Side Of Seat Frame
    G01567063Courtesy of GENERAL MOTORS CORP.
