Installation Procedure

  1. Install the seat cushion frame to the seat back frame.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the seat back hinge bolts to the left side of the seat frame.

    Tighten

    Tighten the seat back hinge bolts to the left side of the seat frame to 30 N.m (22 lb ft).

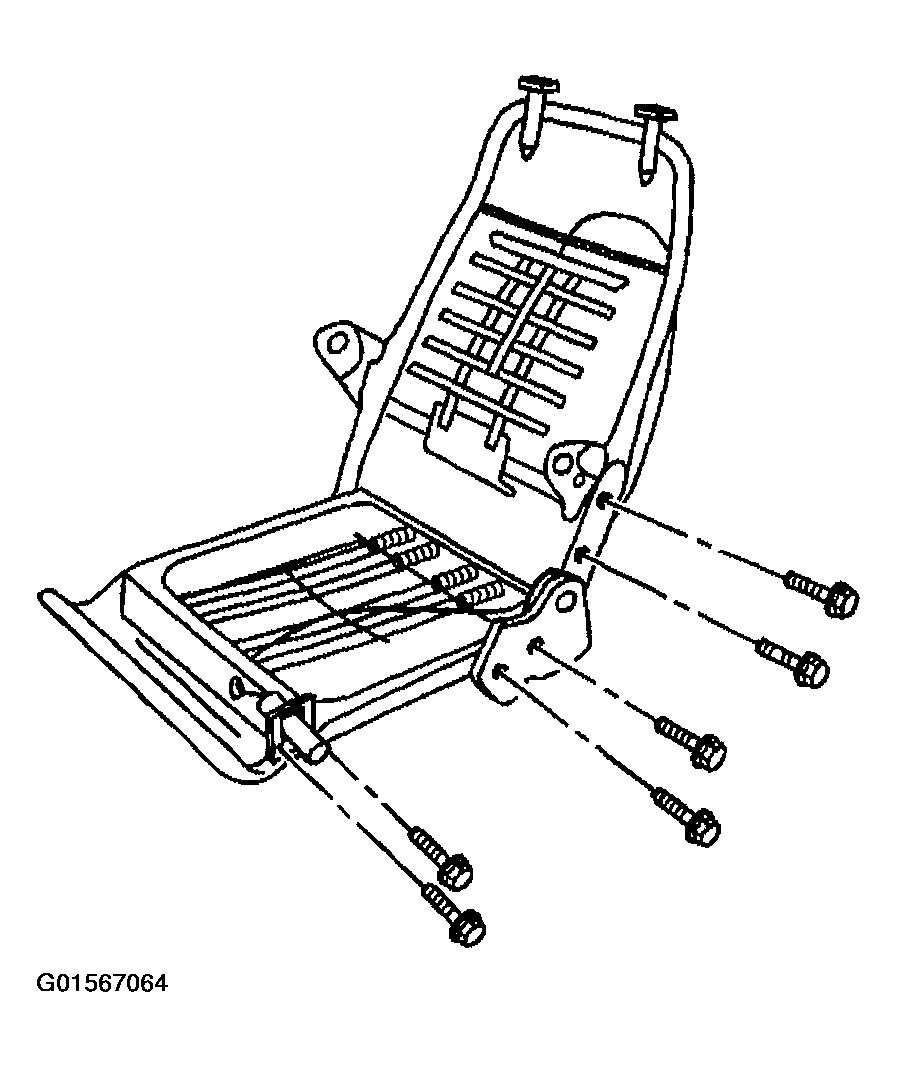

    Fig 1: Installing Seat Back Hinge Bolts To Left Side Of Seat Frame
    G01567064Courtesy of GENERAL MOTORS CORP.
  3. Install the bolts to the right side of the seat frame.

    Tighten

    Tighten the seat back hinge bolts to the right side of the seat frame to 30 N.m (22 lb ft).

  4. Install the lumbar support cable. Refer to LUMBAR SUPPORT CABLE REPLACEMENT  .
  5. Install the seat cushion cover and pad. Refer to SEAT CUSHION COVER REPLACEMENT - FRONT (YC5 AND YC6)  or SEAT CUSHION COVER REPLACEMENT - FRONT (YC7)  .
  6. Install the bucket seat in the vehicle. Refer to SEAT REPLACEMENT - BUCKET  .

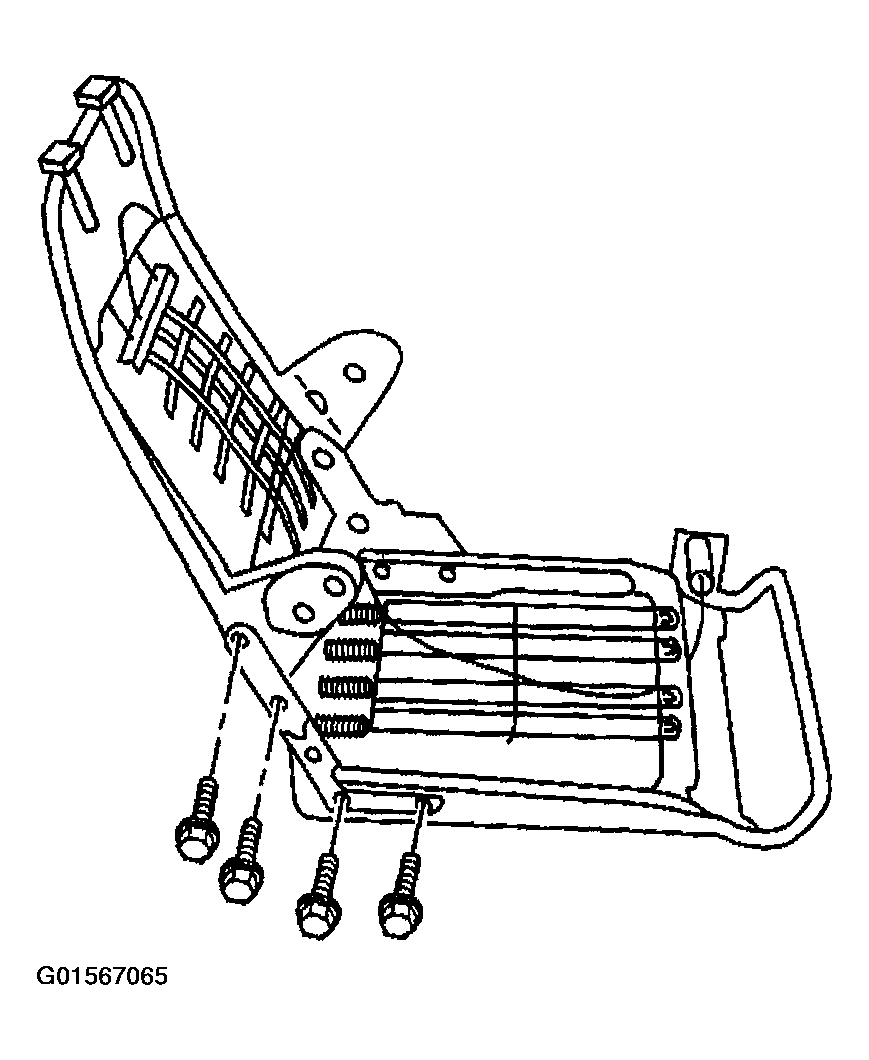

    Fig 2: Installing Seat Back Hinge Bolts To Right Side Of Seat Frame
    G01567065Courtesy of GENERAL MOTORS CORP.
