Removal Procedure

  1. Remove the rear bench seat from the vehicle. Refer to SEAT REPLACEMENT - REAR BENCH  .
  2. Remove the seat cushion cover and pad. Refer to SEAT CUSHION COVER AND PAD REPLACEMENT - REAR  .

    Important:  Note the position and length of the bolts removed. This will assist with reassembly.

  3. Remove the bolts retaining the seat back hinges to the seat cushion frame.

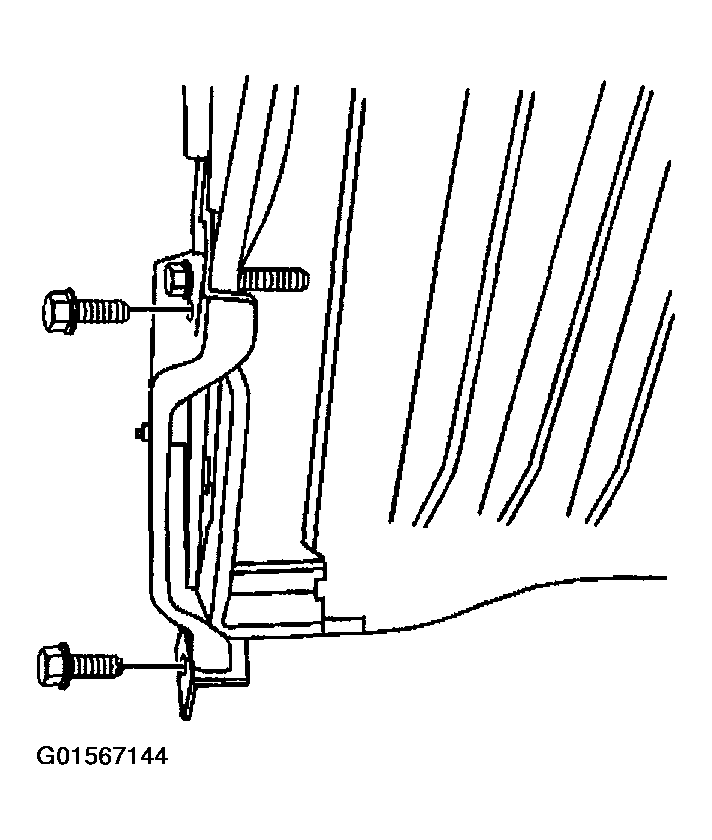

    Fig 1: Removing Seat Back Hinge Bolts From Cushion Frame - Rear (YC7)
    G01567144Courtesy of GENERAL MOTORS CORP.

    Important:  Note the position and length of the bolts removed. This will assist with reassembly.

  4. Remove the bolts retaining the console to the seat cushion frame. Refer to CENTER CONSOLE REPLACEMENT - REAR SEAT  .
  5. Remove the seat cushion frame.

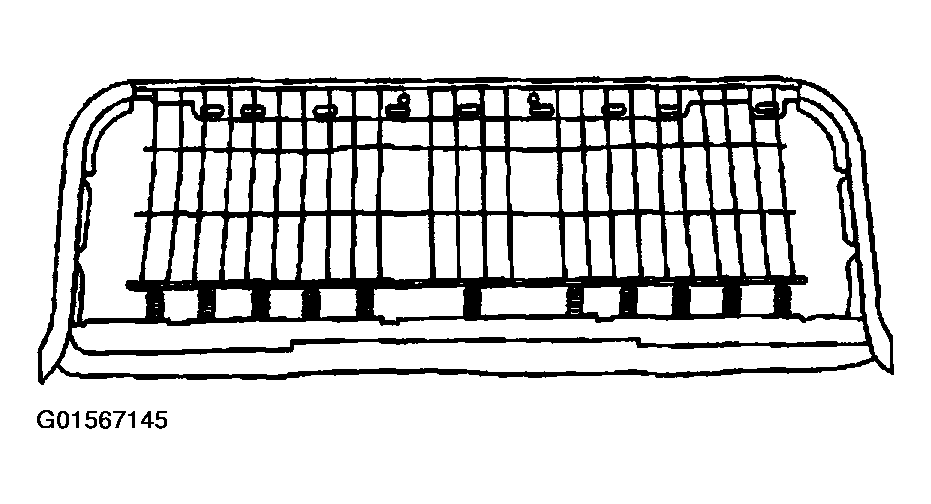

    Fig 2: Removing Seat Cushion Frame - Rear (YC7)
    G01567145Courtesy of GENERAL MOTORS CORP.
