Installation Procedure

  1. Install the seat cushion frame.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolts that retain the console to the seat cushion frame in the locations noted during disassembly. Refer to CENTER CONSOLE REPLACEMENT - REAR SEAT  .

    Tighten

    Tighten the bolts that retain the console to the seat cushion frame to 30 N.m (22 lb ft).

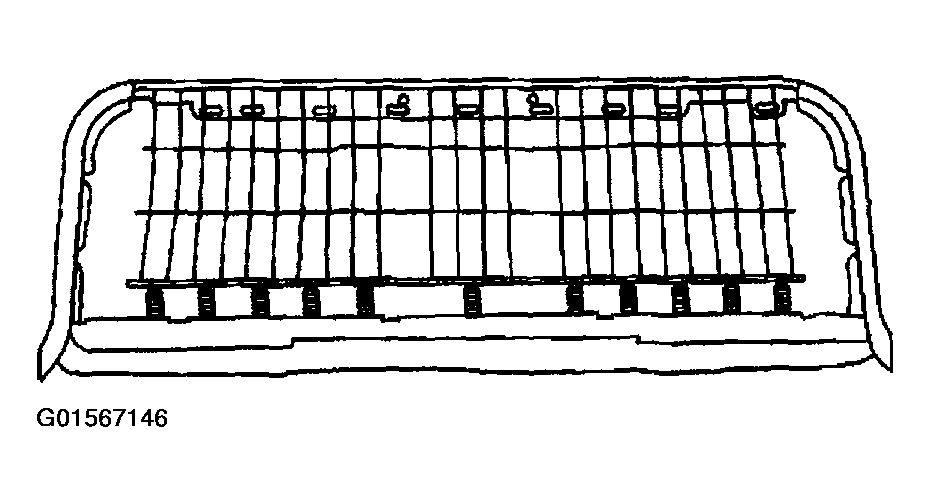

    Fig 1: Installing Seat Cushion Frame - Rear (YC7)
    G01567146Courtesy of GENERAL MOTORS CORP.
  3. Install the bolts that retain the seat back hinges to the seat cushion frame in the locations noted during disassembly.

    Tighten

    Tighten the bolts that retain the seat back hinges to the bench seat cushion frame to 30 N.m (22 lb ft).

  4. Install the seat cushion cover and pad.
  5. Install the rear bench seat to the vehicle. Refer to SEAT REPLACEMENT - REAR BENCH  .

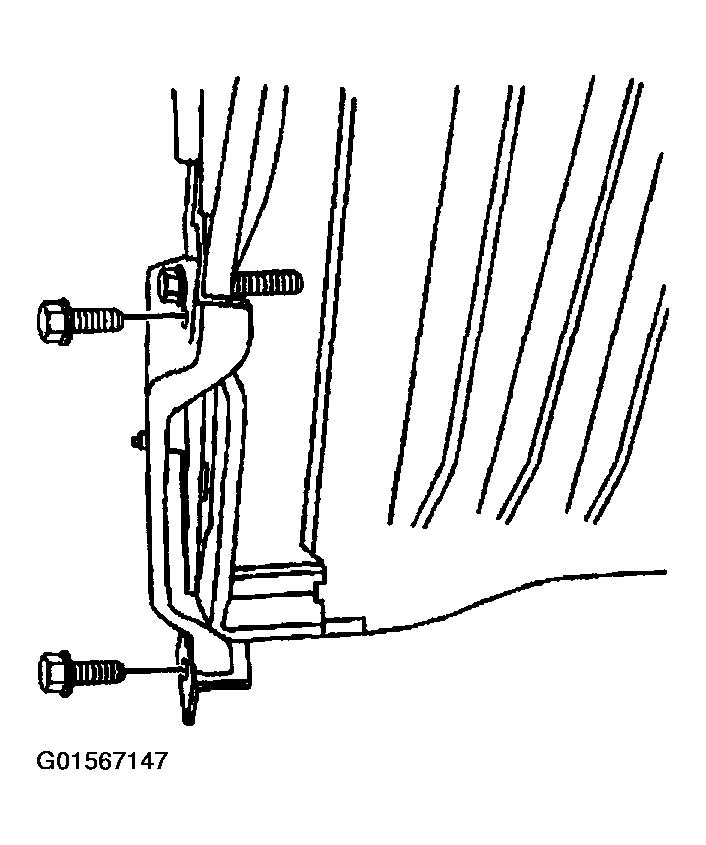

    Fig 2: Installing Seat Back Hinge Bolts To Cushion Frame - Rear (YC7)
    G01567147Courtesy of GENERAL MOTORS CORP.
