Removal Procedure

  1. Remove the rear bench seat from the vehicle. Refer to SEAT REPLACEMENT - REAR BENCH  .
  2. Remove the seat cushion cover and pad. Refer to SEAT CUSHION COVER AND PAD REPLACEMENT - REAR  .
  3. Remove the seat back hinge bolts from the right and left sides of the cushion frame.

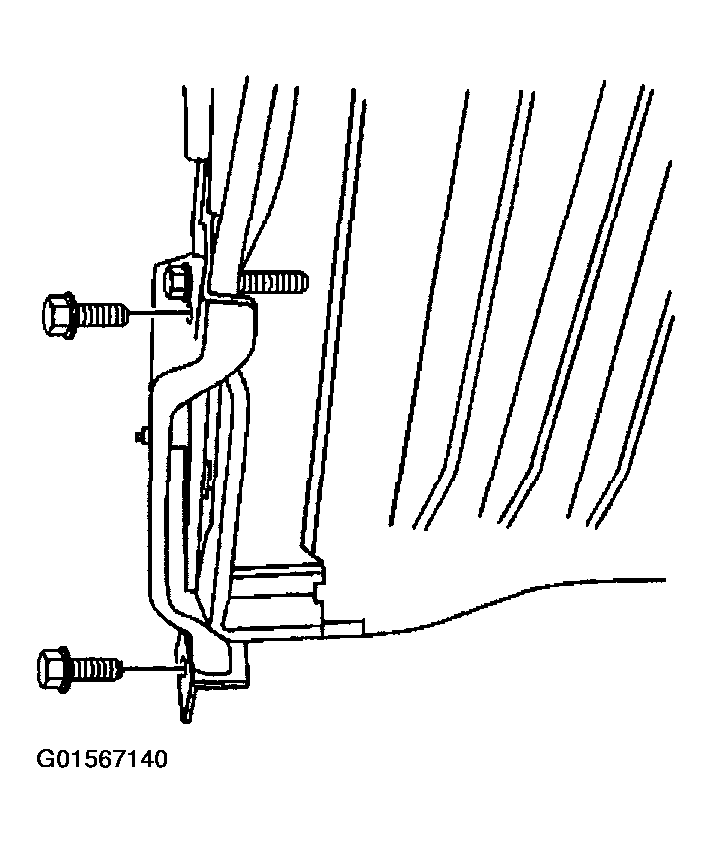

    Fig 1: Removing Seat Back Hinge Bolts From Cushion Frame - Rear (YC5 And YC6)
    G01567140Courtesy of GENERAL MOTORS CORP.
  4. Remove the seat cushion frame.

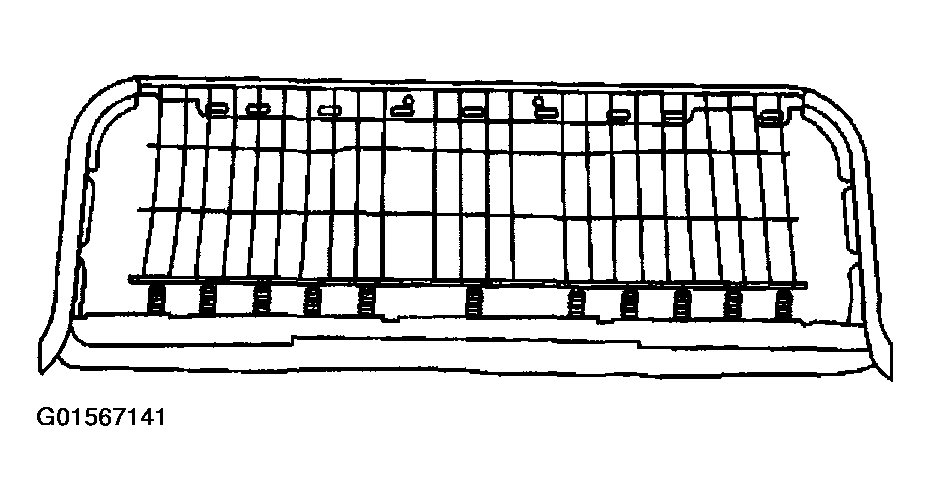

    Fig 2: Removing Seat Cushion Frame
    G01567141Courtesy of GENERAL MOTORS CORP.
