Installation Procedure

  1. Install the seat cushion frame.

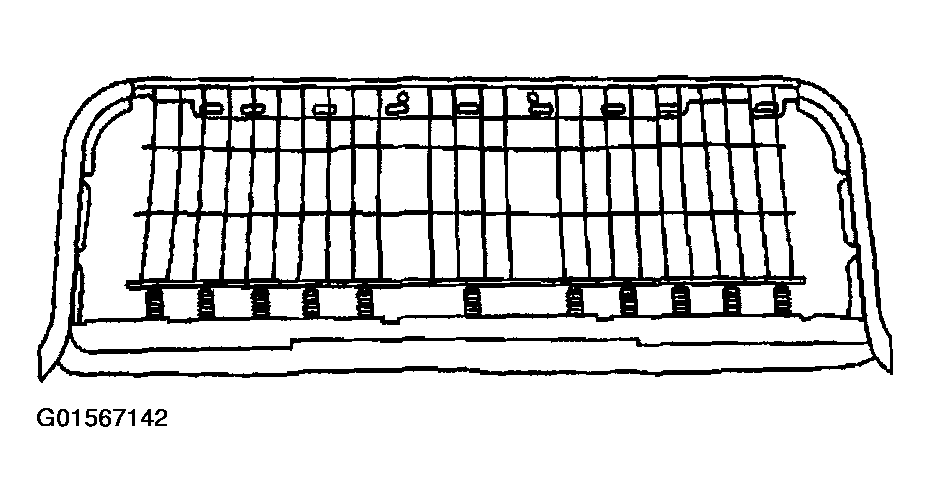

    Fig 1: Installing Seat Cushion Frame
    G01567142Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the seat back hinge bolts to the right and left sides of the seat cushion frame.

    Tighten

    Tighten the seat back hinge bolts to the right and left sides of the seat cushion frame 30 N.m (22 lb ft).

  3. Install the seat cushion cover and pad. Refer to SEAT CUSHION COVER AND PAD REPLACEMENT - REAR  .
  4. Install the rear bench seat to the vehicle. Refer to SEAT REPLACEMENT - REAR BENCH  .

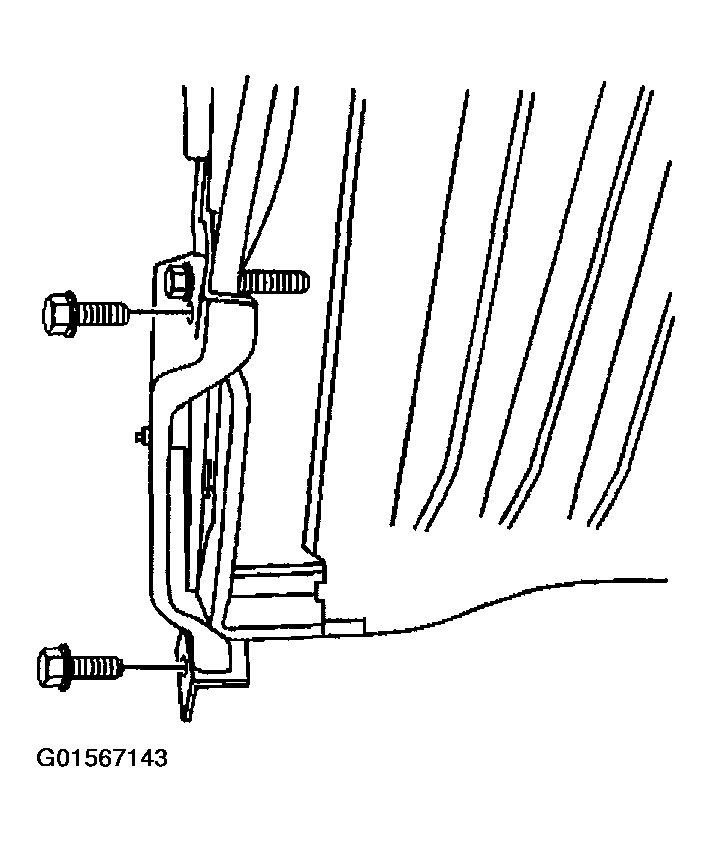

    Fig 2: Installing Seat Back Hinge Bolts To Cushion Frame - Rear (YC5 And YC6)
    G01567143Courtesy of GENERAL MOTORS CORP.
