Installation Procedure

  1. Install the seat cushion cover to the seat cushion pad.
  2. Install the hog rings that retain the seat cushion cover to the seat cushion pad located under the seat cushion cover.
    Fig 1: Installing Seat Cushion Cover To Seat Cushion Pad
    G01567153Courtesy of GENERAL MOTORS CORP.
  3. Install the seat back cushion cover and pad to the seat cushion frame.

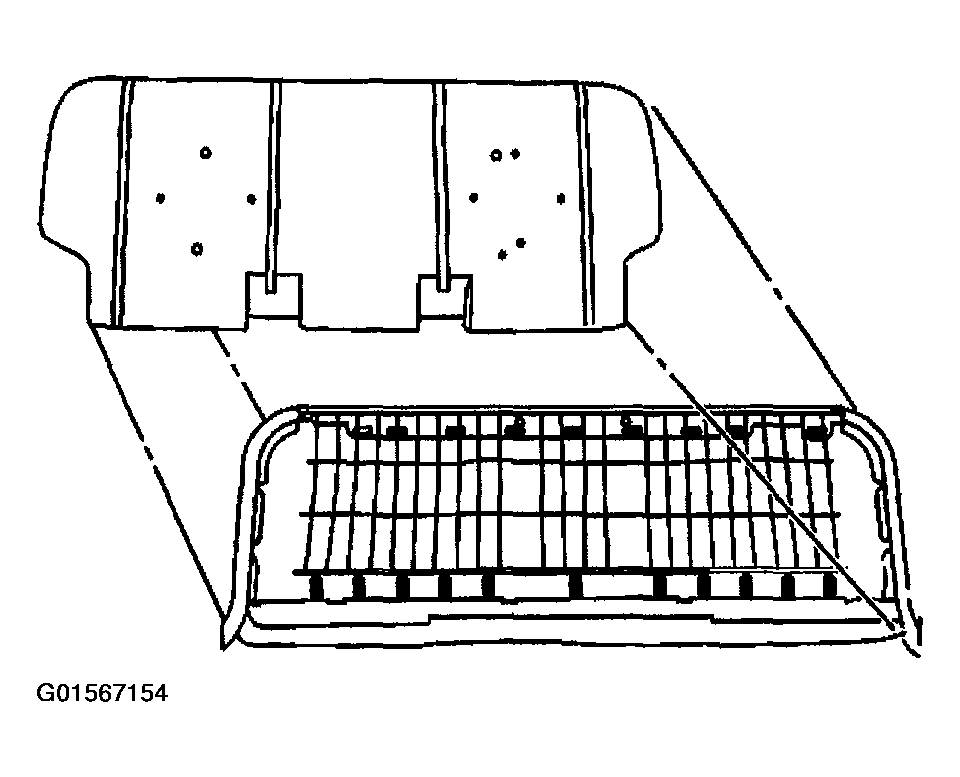

    Fig 2: Installing Seat Back Cushion Cover And Pad To Seat Cushion Frame
    G01567154Courtesy of GENERAL MOTORS CORP.
  4. Install the hog rings that retain the seat cushion cover to the seat cushion frame located at the rear edge of the seat frame.

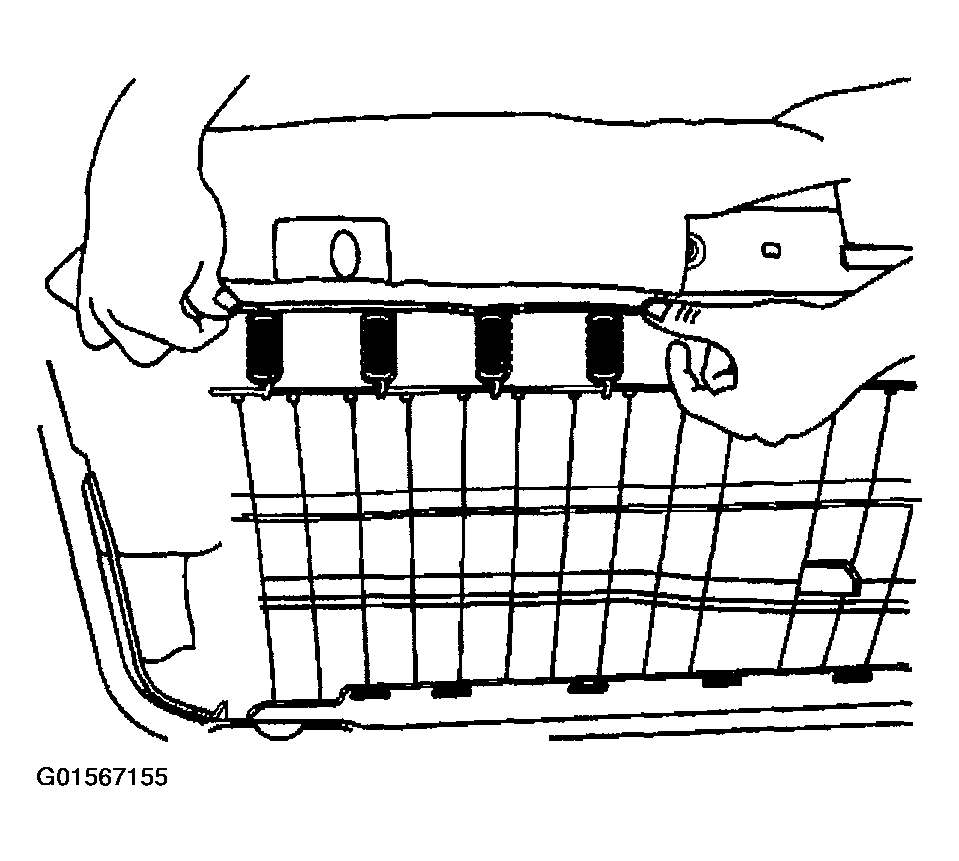

    Fig 3: Installing Hog Rings Retaining Seat Cushion Cover To Seat Cushion Frame
    G01567155Courtesy of GENERAL MOTORS CORP.
  5. Install the J-hooks that retain the seat cushion cover to the seat cushion frame.

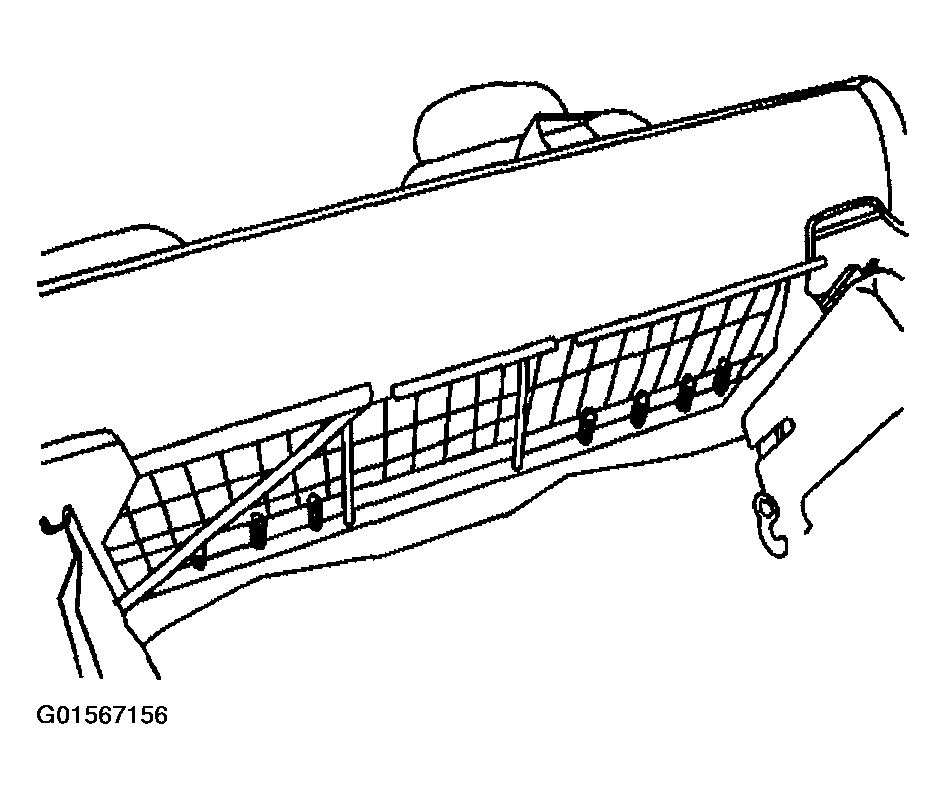

    Fig 4: Installing J-Hooks Retaining Seat Cushion Cover To Seat Cushion Frame
    G01567156Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  6. Install the bolts that retain the seat back hinges to the seat cushion frame.

    Tighten

    Tighten the bolts that retain the seat back hinges to the seat cushion frame to 30 N.m (22 lb ft).

  7. Install the right and left sides of the seat back hinge trim. Refer to SEAT BACK HINGE TRIM REPLACEMENT - REAR RIGHT (YC6)  and SEAT BACK HINGE TRIM REPLACEMENT - REAR LEFT  .
  8. Install the bench seat and risers in the vehicle. Refer to SEAT REPLACEMENT - REAR BENCH  .

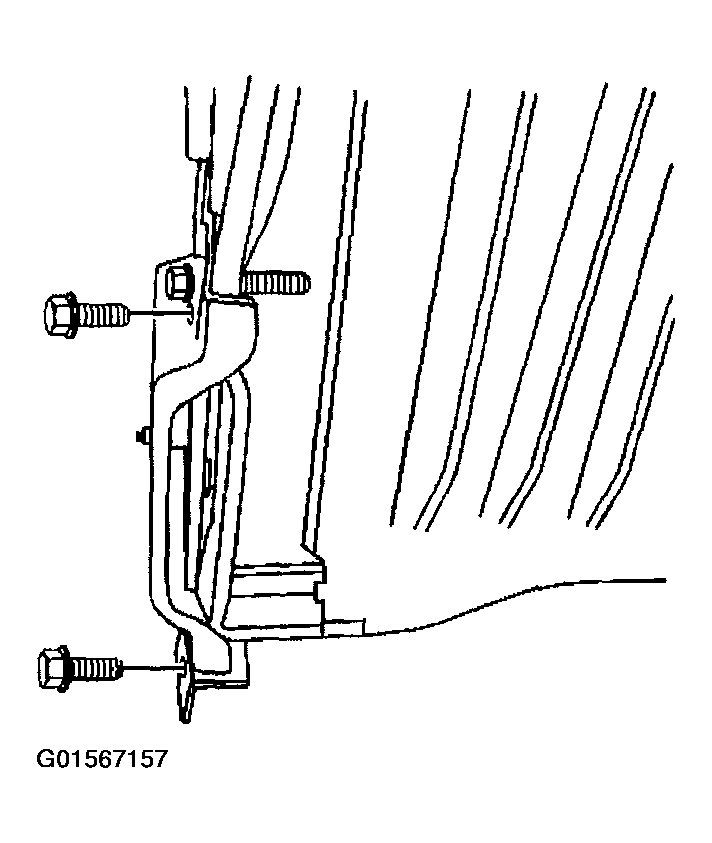

    Fig 5: Installing Bolts Retaining Seat Back Hinges To Seat Cushion Frame
    G01567157Courtesy of GENERAL MOTORS CORP.
