Installation Procedure

  1. Install the seat cushion cover to the pad.
  2. Install the seat cushion cover and the pad to the seat cushion frame.
    Fig 1: View Of Seat Cushion Cover (Front YC5 And YC6)
    G01567055Courtesy of GENERAL MOTORS CORP.
  3. Install the hog rings that retain the seat cushion cover to the seat cushion frame in the locations noted during disassembly.
  4. Install the J-hook that retain the seat cushion cover to the seat cushion frame.
    Fig 2: Installing Seat Cushion Cover To Seat Cushion Frame (Front YC5 And YC6)
    G01567056Courtesy of GENERAL MOTORS CORP.
  5. Install the lumbar knob and clip if equipped.
  6. Install the lever to the recliner if equipped.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  7. Install the screw to the recliner lever handle if equipped.

    Tighten

    Tighten the screw to the recliner lever handle to 2 N.m (18 lb in).

  8. Install the bucket seat to the seat risers. Refer to SEAT REPLACEMENT - BUCKET  .

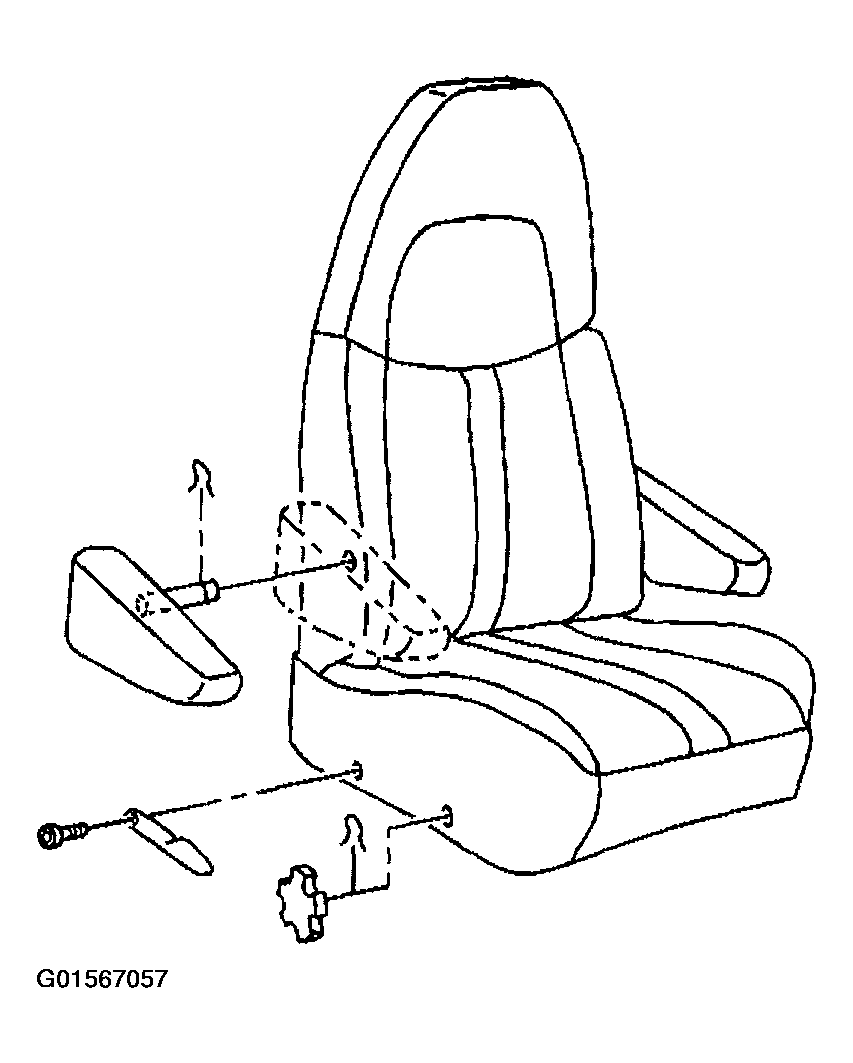

    Fig 3: Installing Lever, Lumbar Knob And Clip (Front YC5 And YC6)
    G01567057Courtesy of GENERAL MOTORS CORP.
