Removal Procedure

  1. Remove the bucket seat from the riser. Refer to SEAT REPLACEMENT - BUCKET  .
  2. Remove the armrest from the recliner side of the seat. Refer to ARMREST REPLACEMENT (YC6)  or ARMREST REPLACEMENT (YC7)  .
  3. Remove the J-hooks that retain the carpet on the back of the seat cushion to the corners of the seat cushion trim cover.
  4. Remove the screw that retains the seat back recliner handle to the recliner.

    Important:  When removing the bolts that retain the seat back recliner, note the position and length of the bolts. This will assist with reassembly.

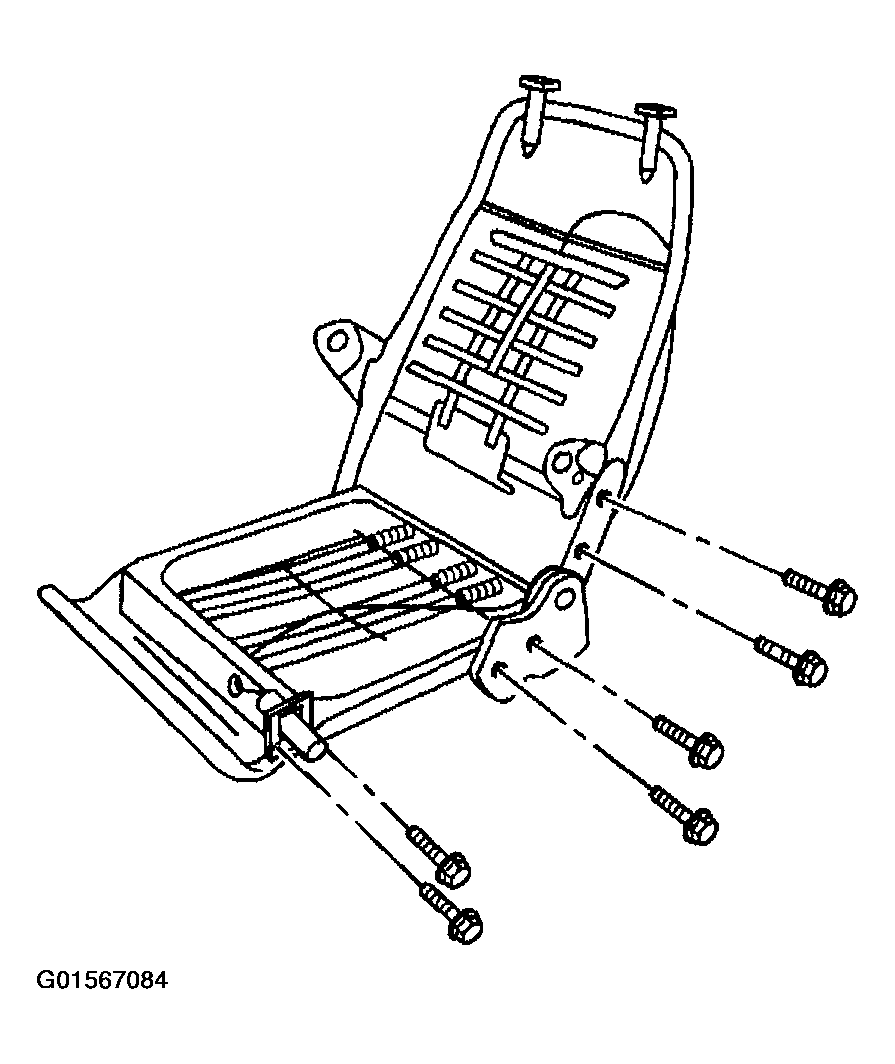

    Fig 1: Removing Bolts Retaining Recliner To Seat Back And Seat Cushion Frames (YC7)
    G01567084Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolts that retain the recliner to the seat back and seat cushion frames.

    Important:  Handle the seat carefully when just one side of the seat back is attached to the seat cushion. Improper handling may damage the seat back hinge or the lumbar support cable.

  6. Remove the seat back recliner from the seat frame.
