Installation Procedure

  1. Install the seat back recliner to the seat frame.
  2. Install the seat back bolts that retain the recliner to the seat back and the seat cushion frame.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the seat back bolts in the locations noted during disassembly.

    Tighten

    Tighten the seat back bolts that retain the recliner to the seat back and the seat cushion frames to 30 N.m (22 lb ft).

  4. Install the screw that retains the seat back recliner handle to the seat back recliner.

    Tighten

    Tighten the screw that retains the seat back recliner handle to the seat back recliner to 2 N.m (18 lb in).

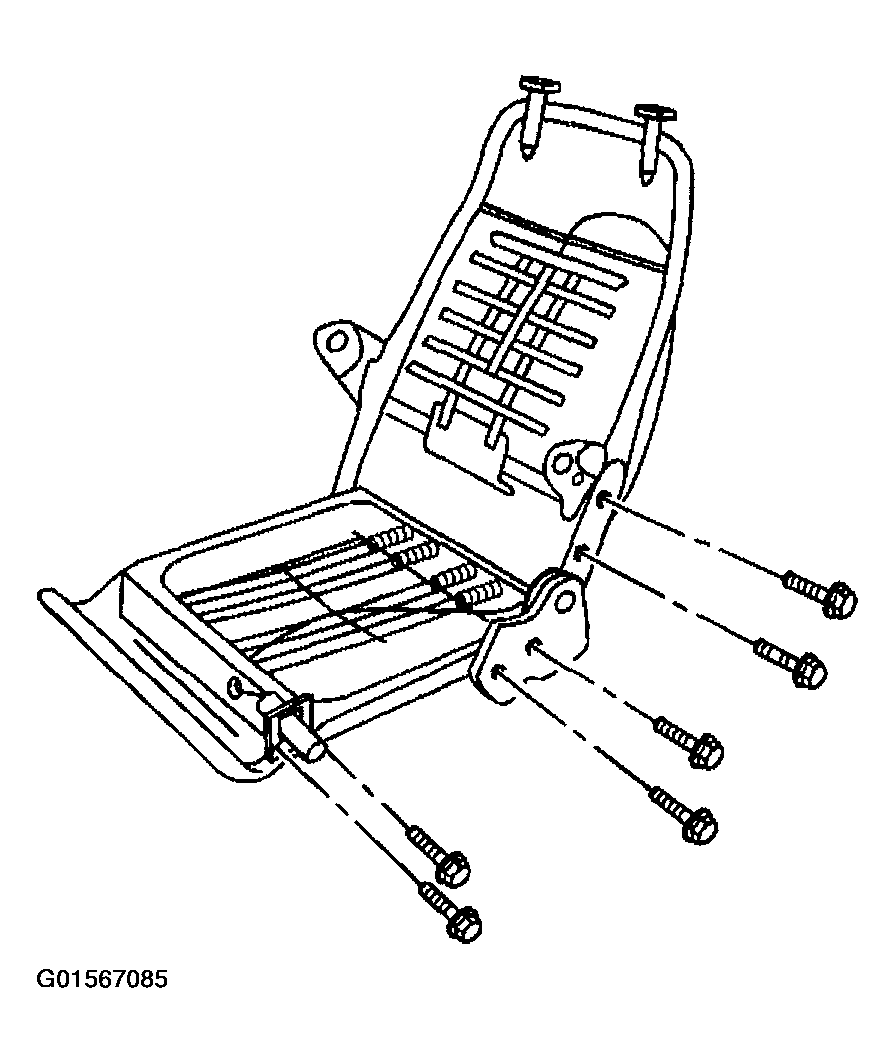

    Fig 1: Installing Bolts Retaining Recliner To Seat Back And Seat Cushion Frames (YC7)
    G01567085Courtesy of GENERAL MOTORS CORP.
  5. Install the J-hooks that retain the carpet to the seat back and to seat cushion frame and to the corners of the seat cushion cover.
  6. Install the armrest to the seat back recliner side of the seat. Refer to ARMREST REPLACEMENT (YC6)  or ARMREST REPLACEMENT (YC7)  .
  7. Install the bucket seat to the riser. Refer to SEAT REPLACEMENT - BUCKET  .
