Removal Procedure

  1. Remove the screw that retains the seat back recliner lever to the seat back recliner.
  2. Remove the seat back recliner lever from the seat back recliner.

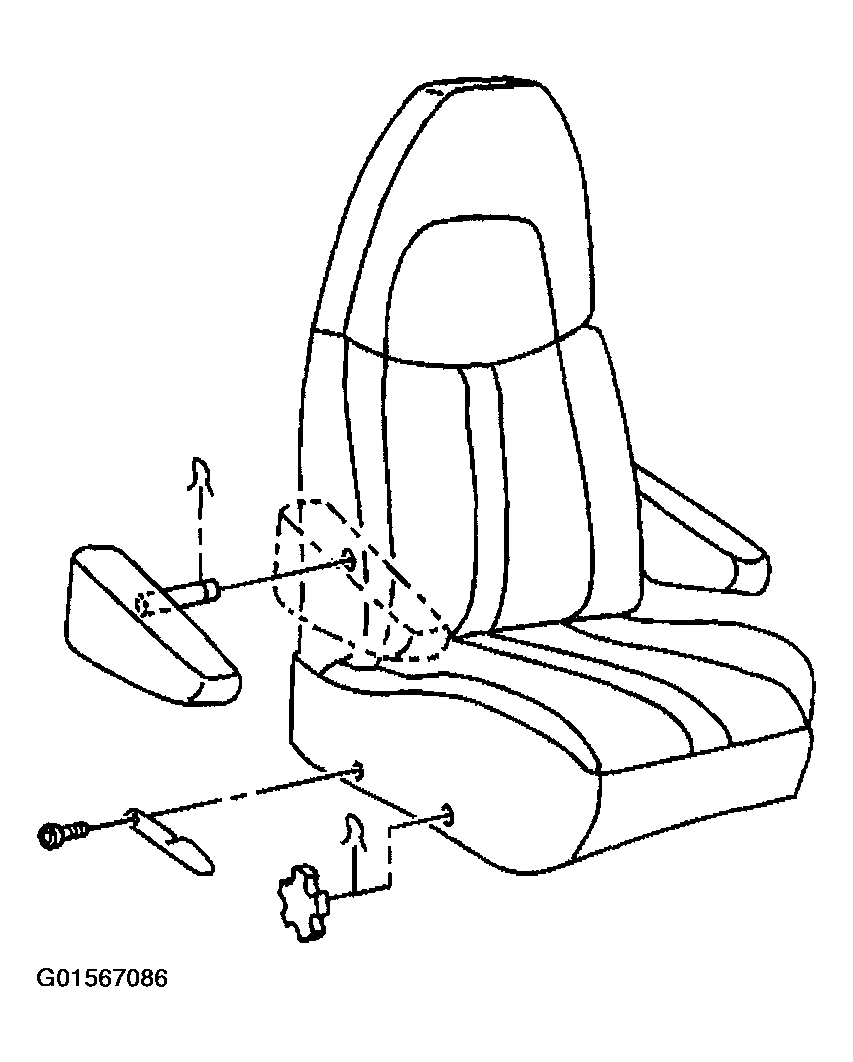

    Fig 1: Removing Seat Back Recliner Lever From Seat Back Recliner (Front)
    G01567086Courtesy of GENERAL MOTORS CORP.
