Installation Procedure

  1. Install the seat back recliner lever to the seat back recliner.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the screw that retains the seat back recliner lever.

    Tighten

    Tighten the screw that retain the seat back recliner lever to 2 N.m (18 lb in).

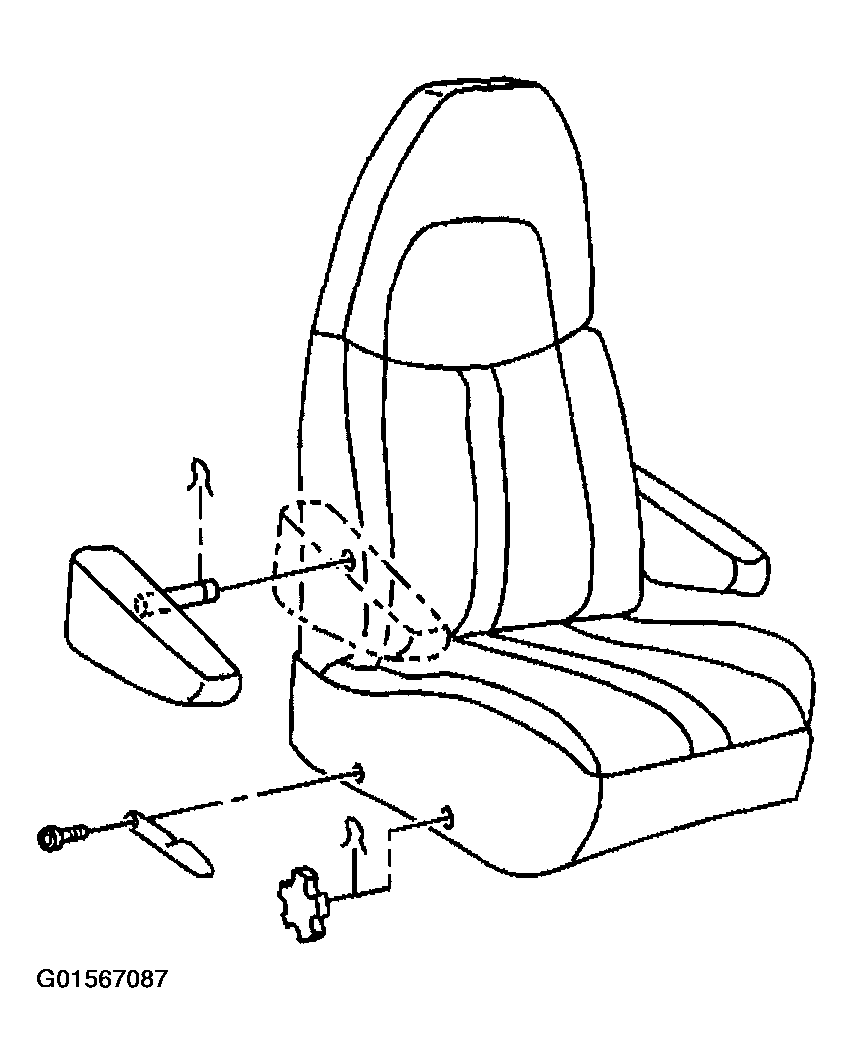

    Fig 1: Installing Seat Back Recliner Lever To Seat Back Recliner (Front)
    G01567087Courtesy of GENERAL MOTORS CORP.
