Removal Procedure

  1. Remove the bench seat from the vehicle. Refer to SEAT REPLACEMENT - REAR BENCH  .
  2. Unzip the seat back cover.
  3. Remove the seat back cushion cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR (YC5 AND YC6)  or SEAT BACK COVER AND PAD REPLACEMENT - REAR (YC7)  .
    Fig 1: Unzipping Seat Back Cover
    G01567088Courtesy of GENERAL MOTORS CORP.
  4. Remove the seat back cable end from the seat back latch.

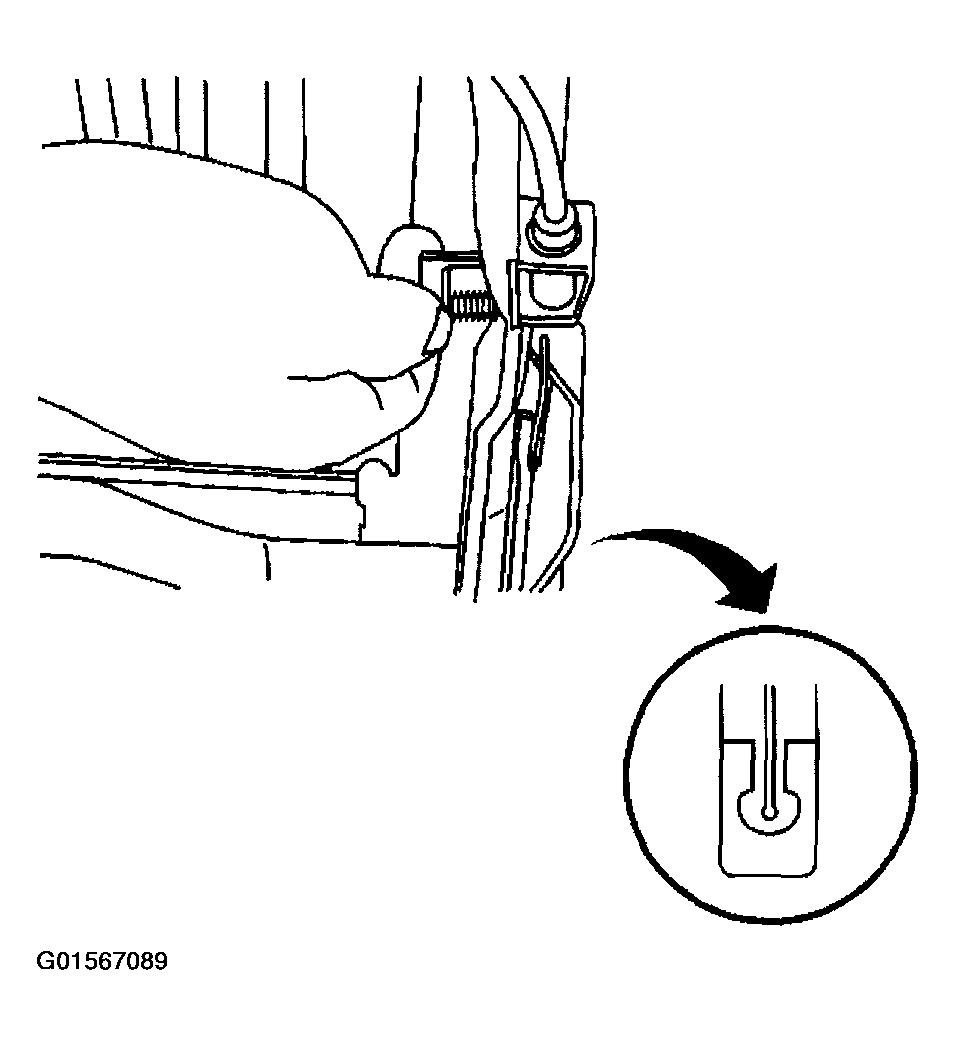

    Fig 2: Removing Seat Back Cable End From Seat Back Latch (Rear)
    G01567089Courtesy of GENERAL MOTORS CORP.
  5. Remove the seat back latch release cable from the clips that retains the cable to the seat back frame.
  6. Remove the seat back latch release cable from the seat back frame.

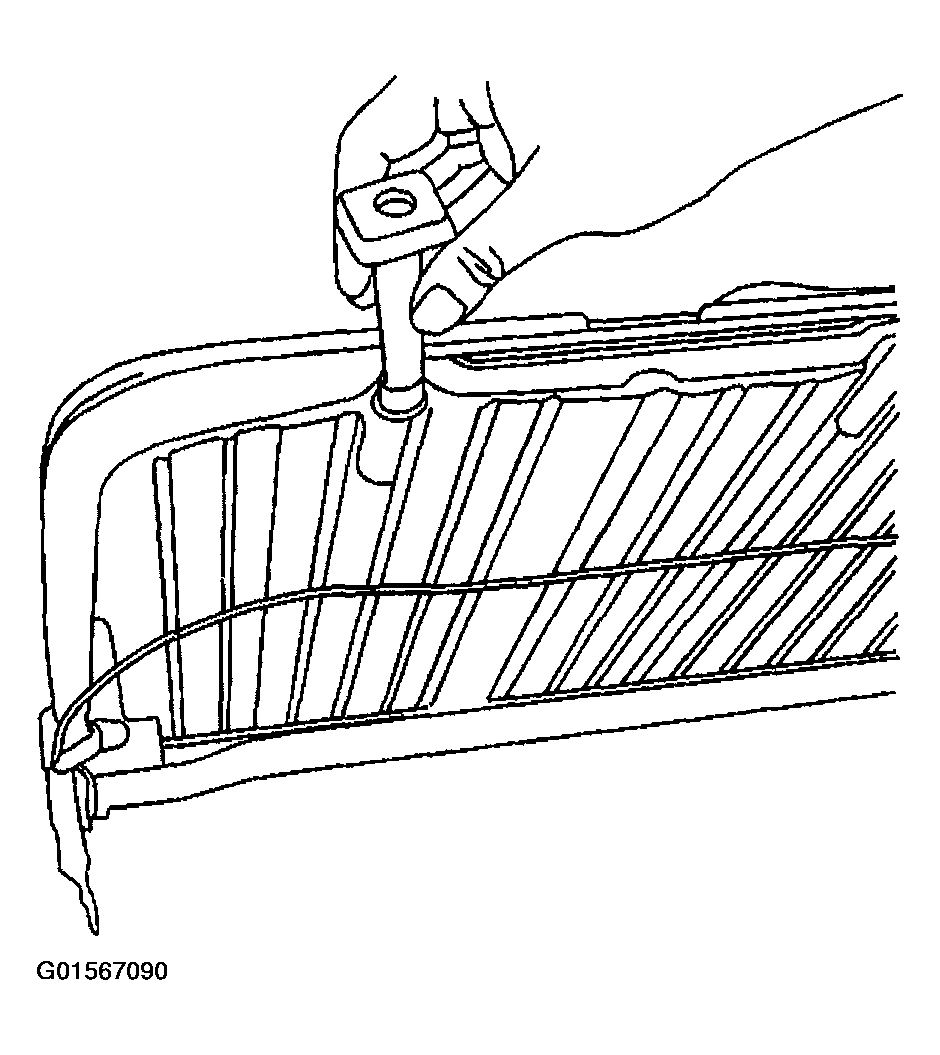

    Fig 3: Removing Seat Back Latch Release Cable From Seat Back Frame (Rear)
    G01567090Courtesy of GENERAL MOTORS CORP.
