Installation Procedure

  1. Install the seat back latch release cable to the seat back frame.
  2. Install the seat back latch release cable to the clips that retain the cable to the seat back frame.

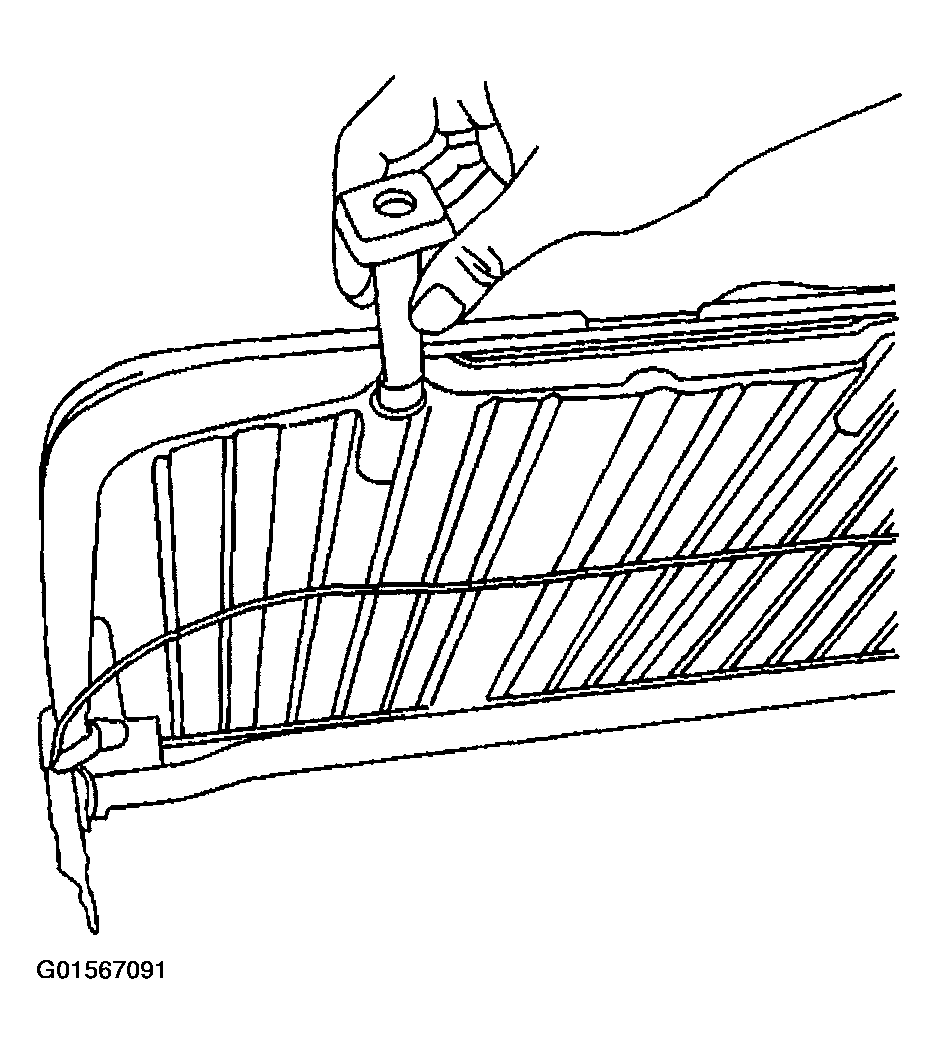

    Fig 1: Installing Seat Back Latch Release Cable To Seat Back Frame (Rear)
    G01567091Courtesy of GENERAL MOTORS CORP.
  3. Install the seat back cable end to the seat back latch.

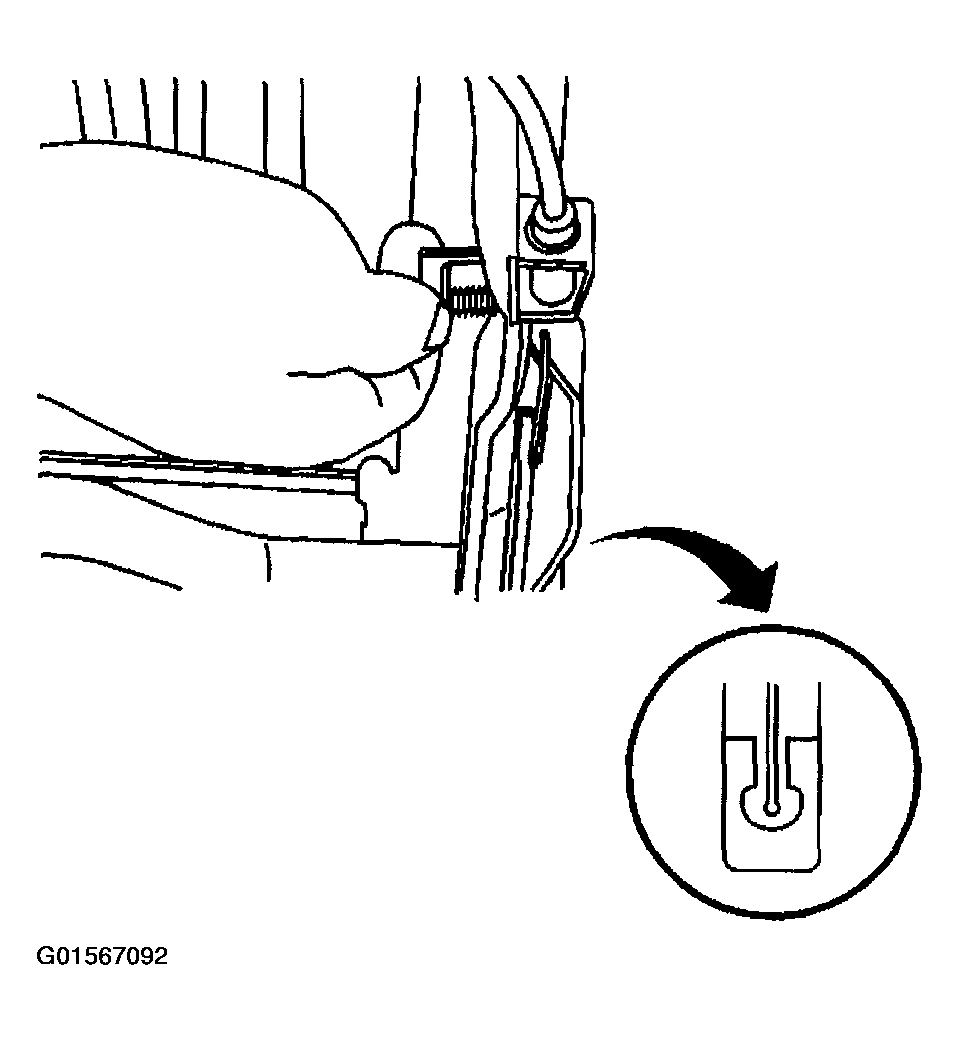

    Fig 2: Installing Seat Back Cable End To Seat Back Latch (Rear)
    G01567092Courtesy of GENERAL MOTORS CORP.
  4. Install the seat back cushion cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR (YC5 AND YC6)  or SEAT BACK COVER AND PAD REPLACEMENT - REAR (YC7)  .
  5. Zip the seat back cover.
  6. Install the bench seat to the vehicle. Refer to SEAT REPLACEMENT - REAR BENCH  .
    Fig 3: Zipping Seat Back Cover
    G01567093Courtesy of GENERAL MOTORS CORP.
